PowerDC Simulation Report
Date: 7:27 February 21, 2024
Pass/Fail: Fail
1 General Information
2 Simulation Setup
3 Results
4 Distribution Plots

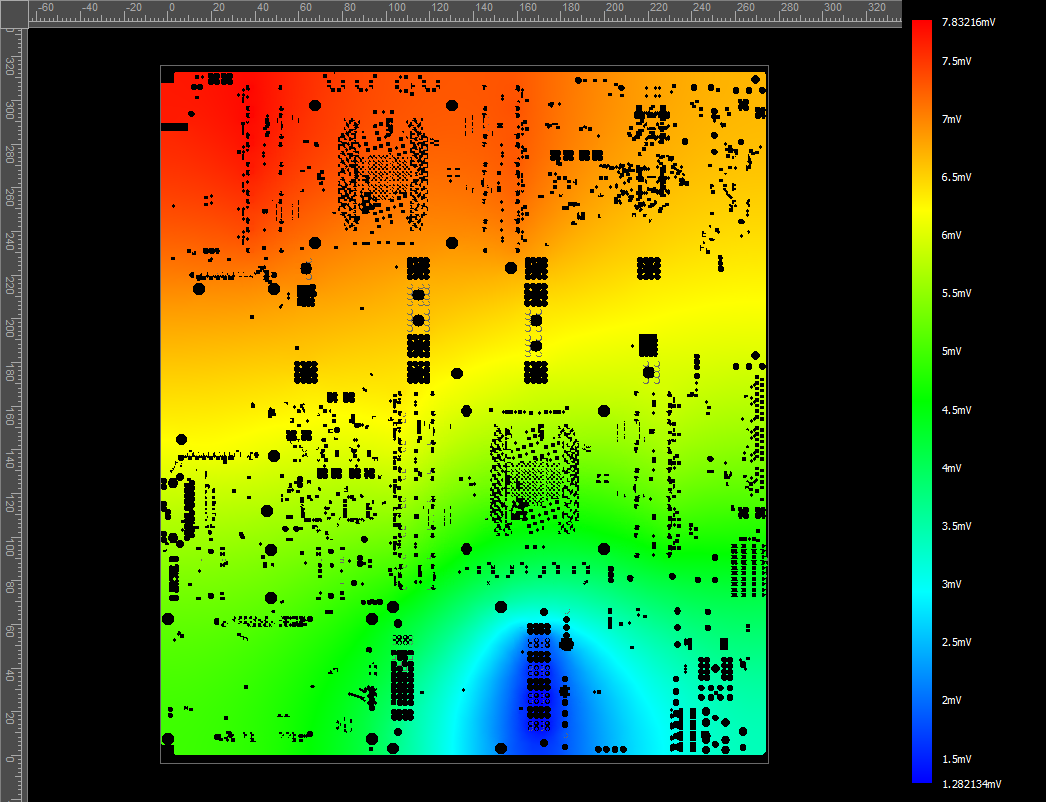

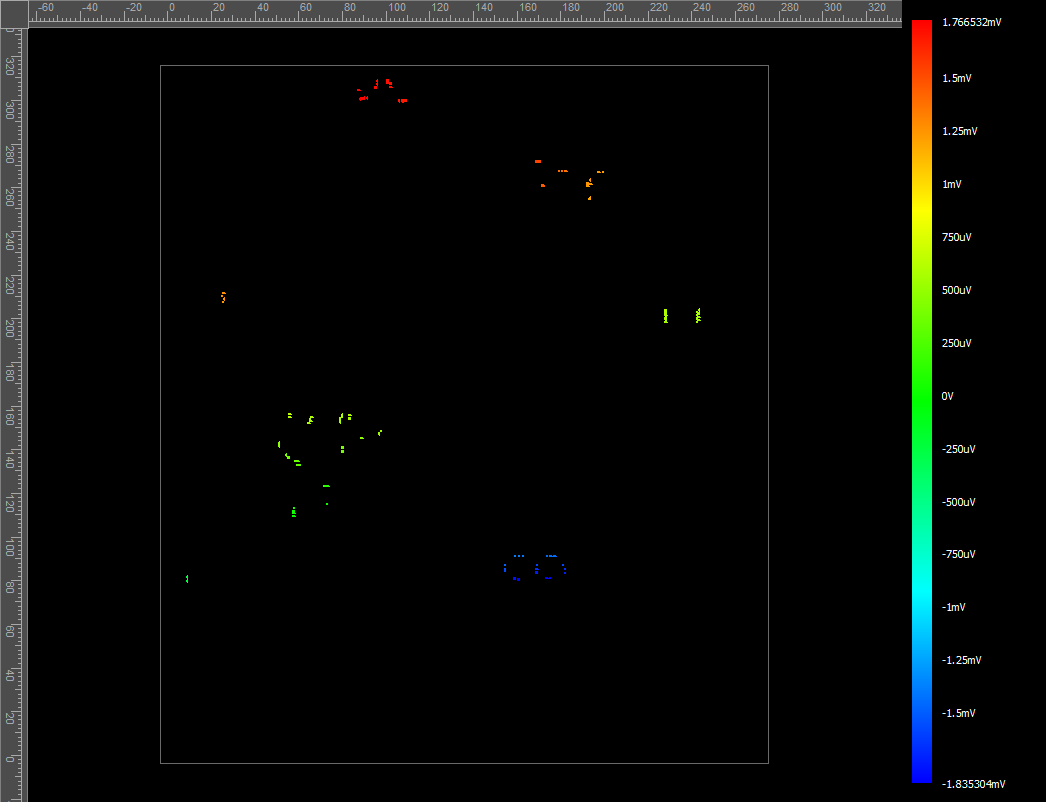

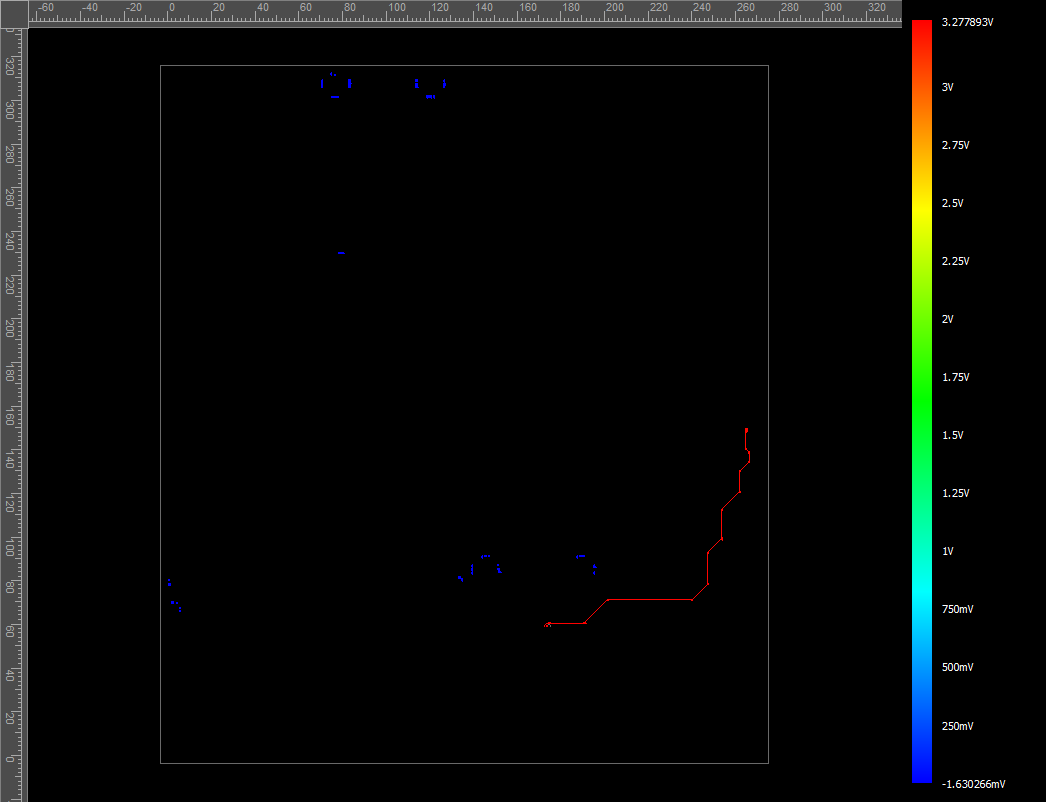

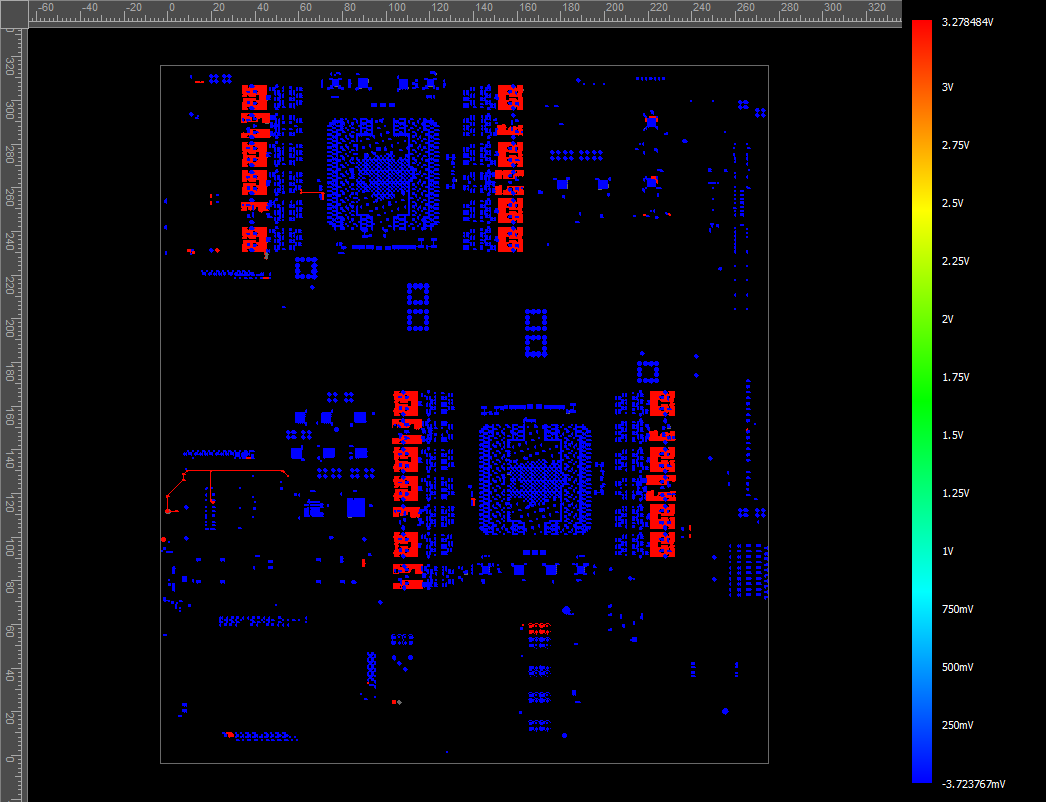

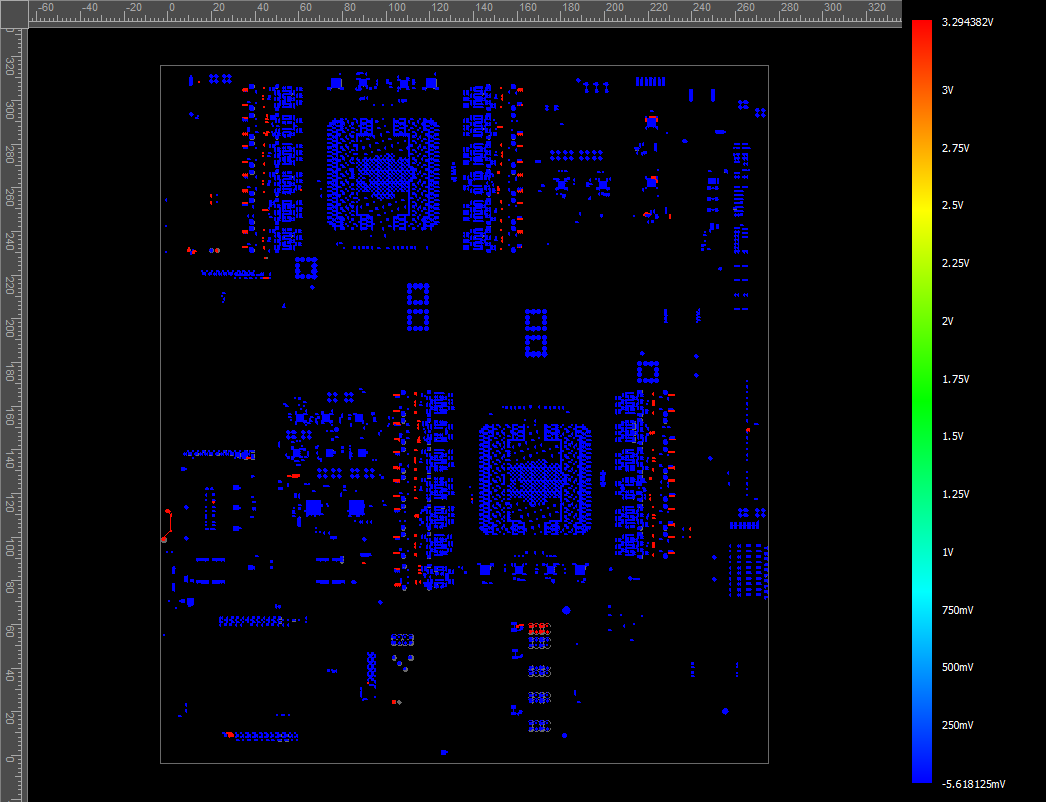

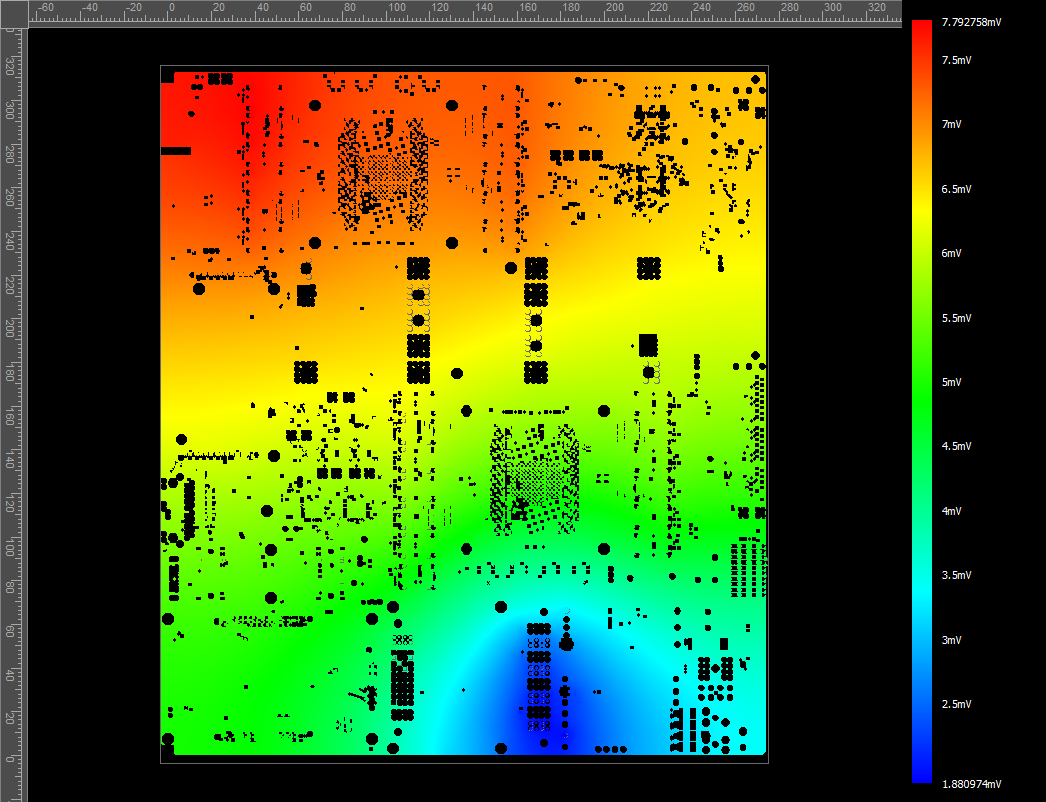

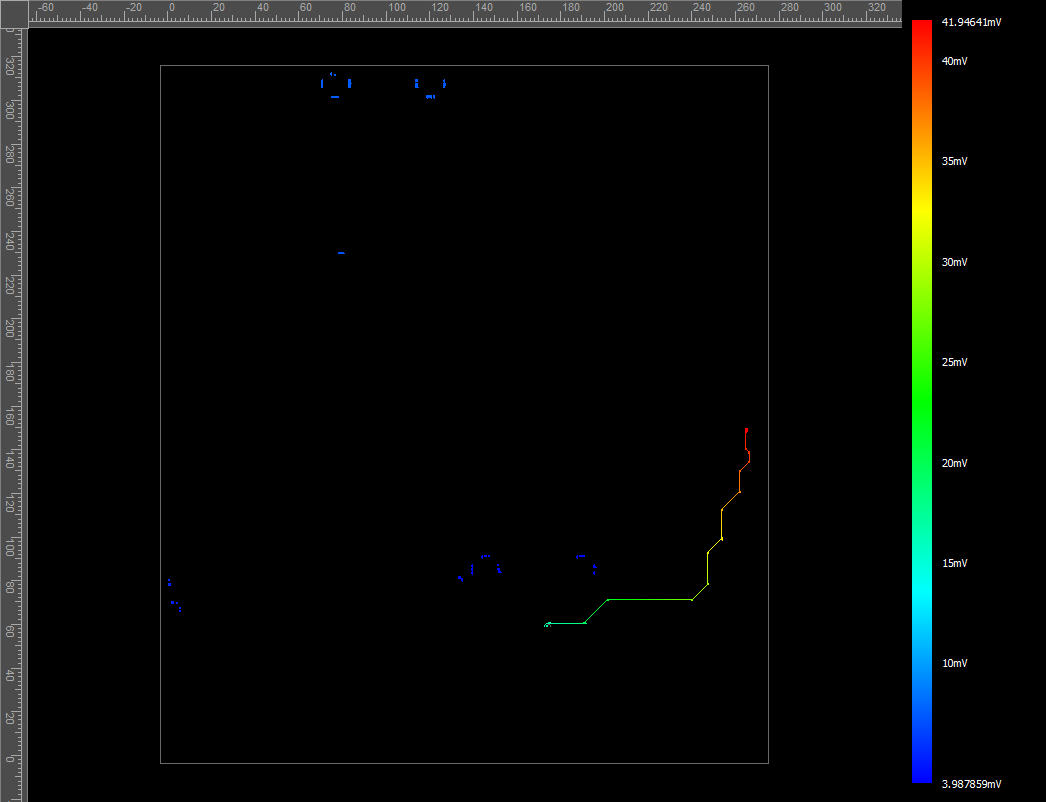

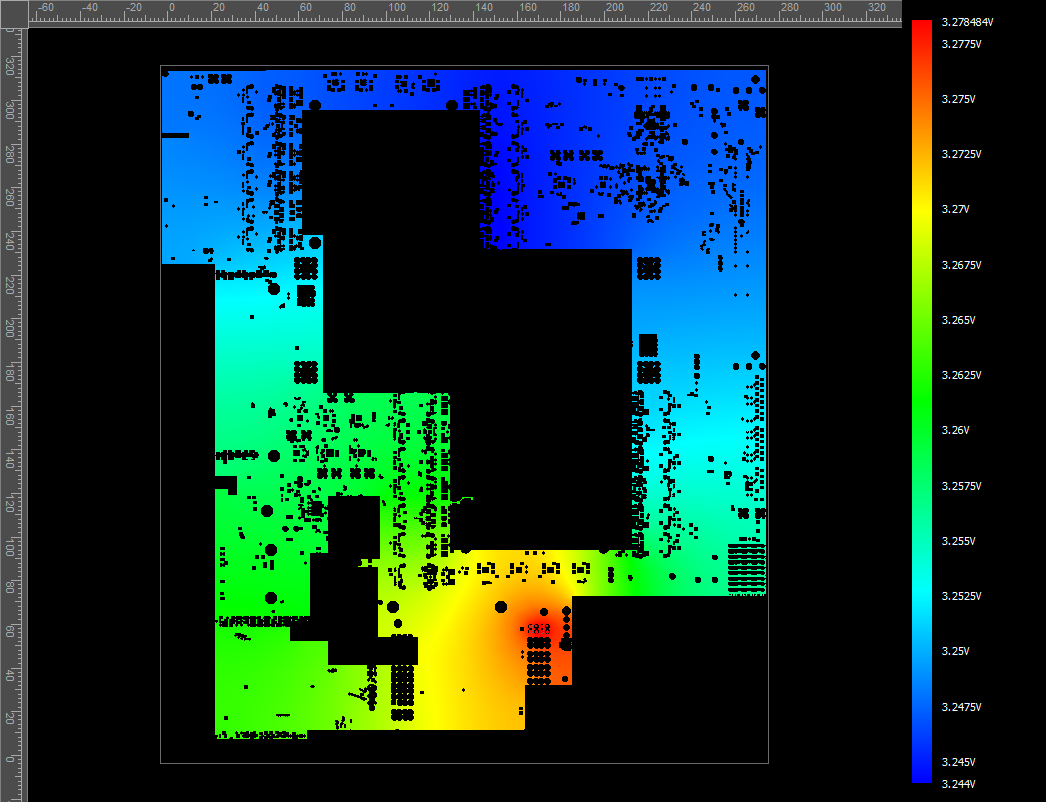

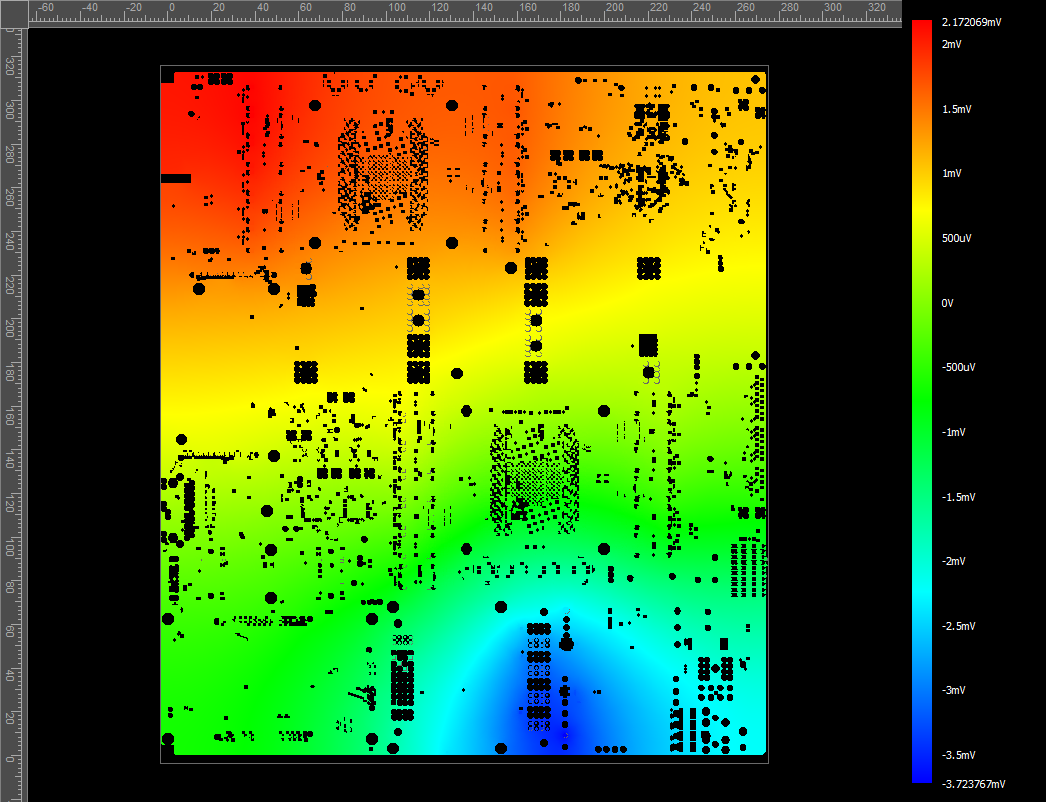

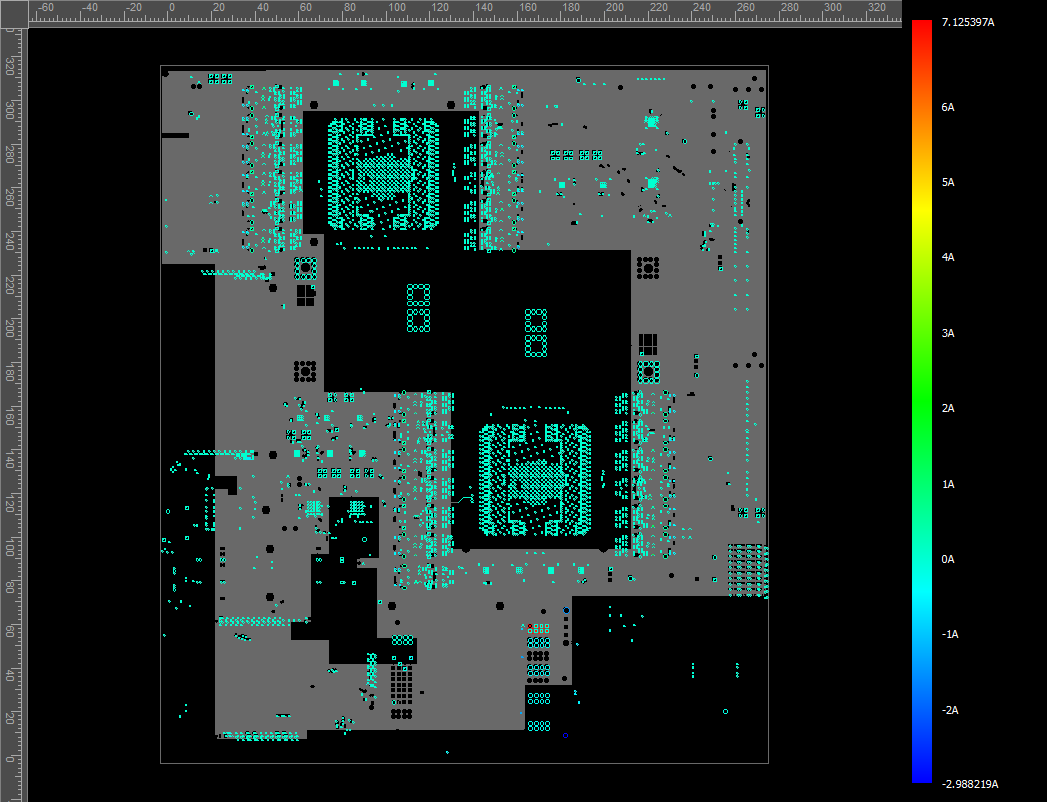

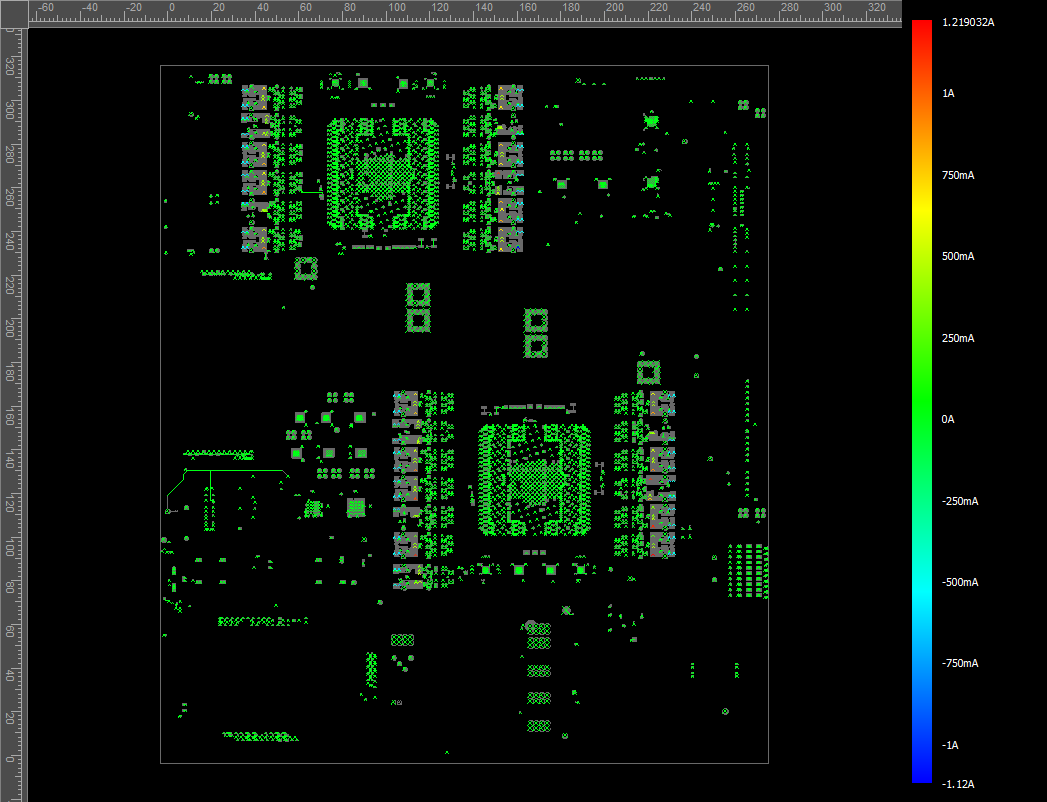

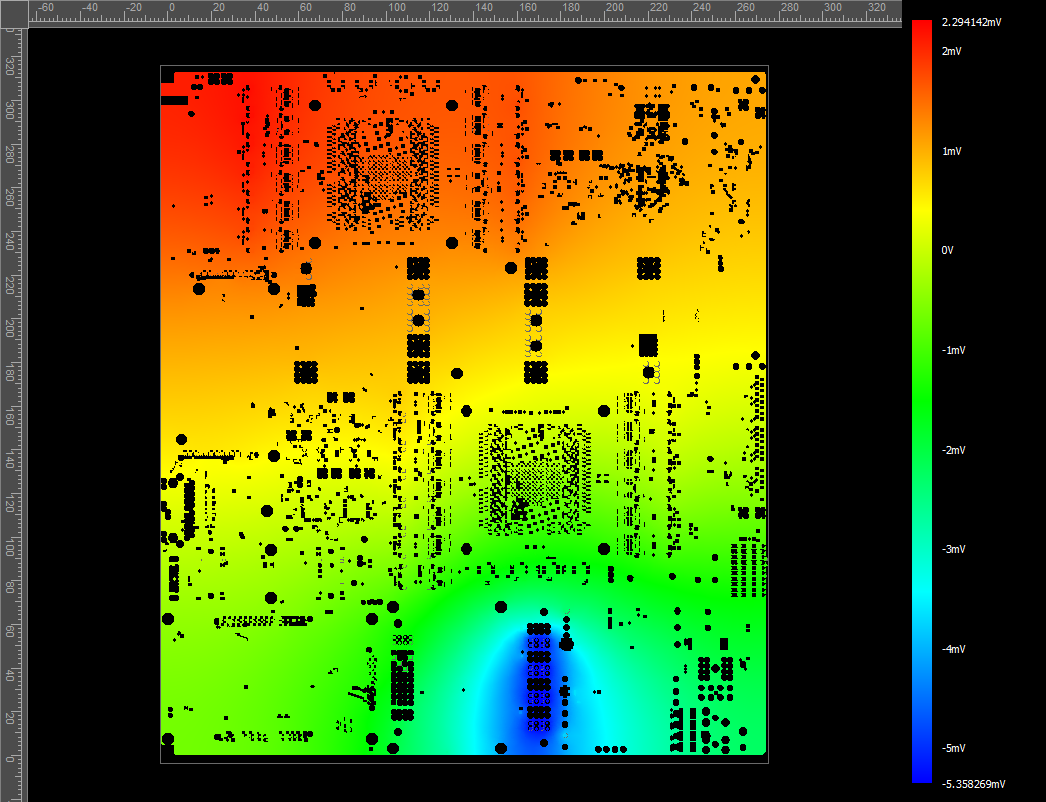

4.1 Voltage Distribution Plot

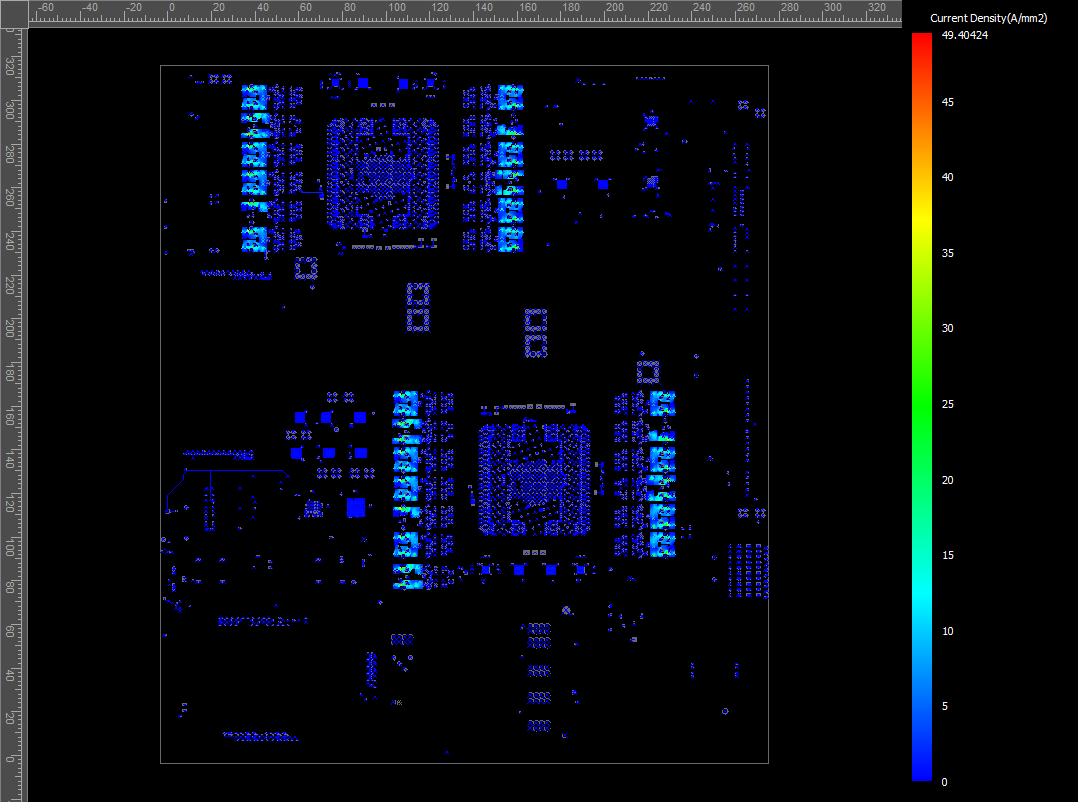

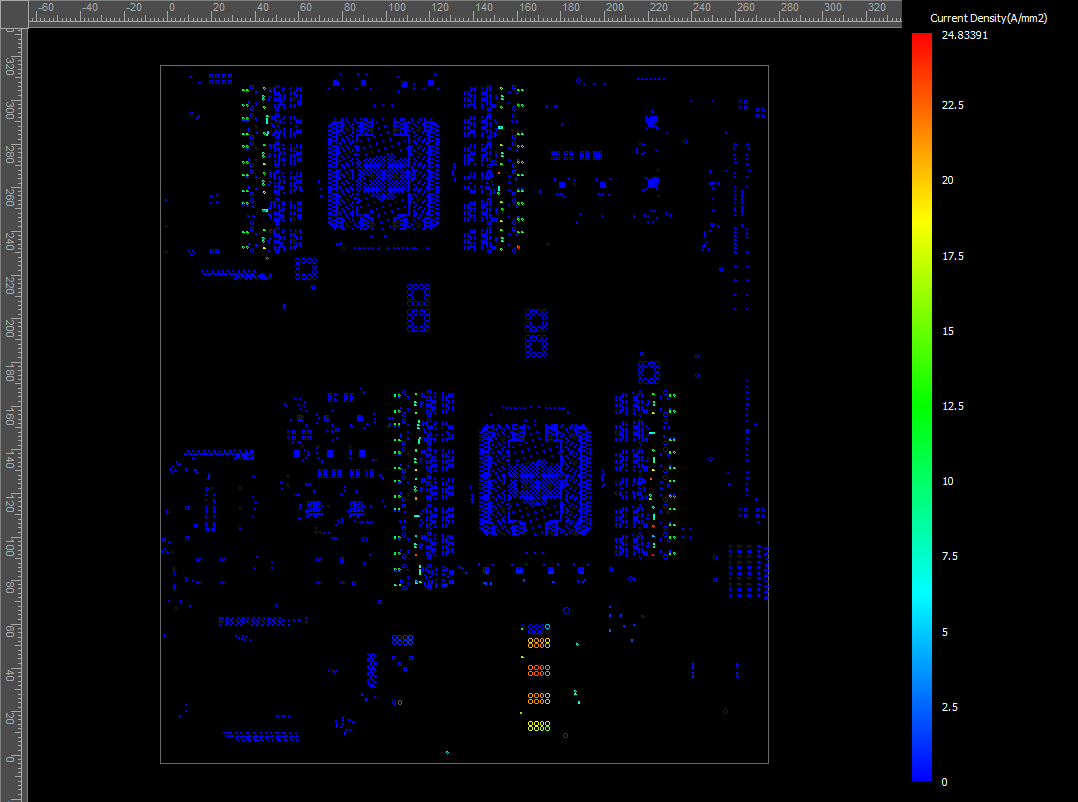

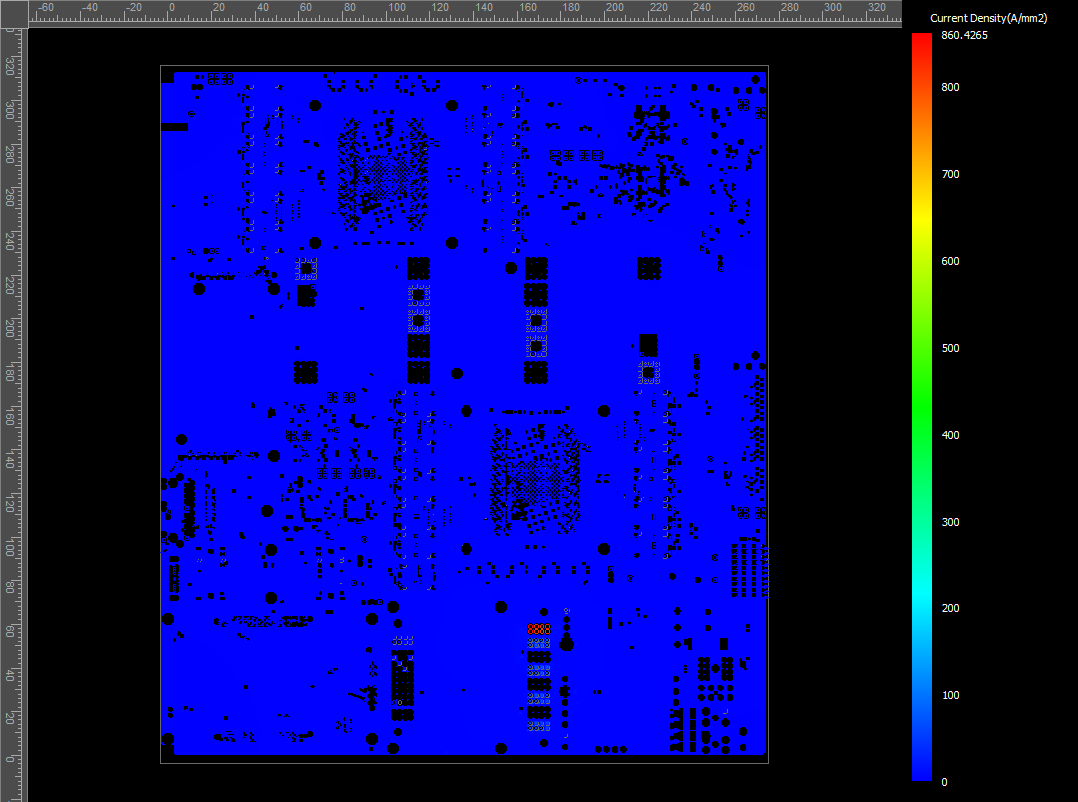

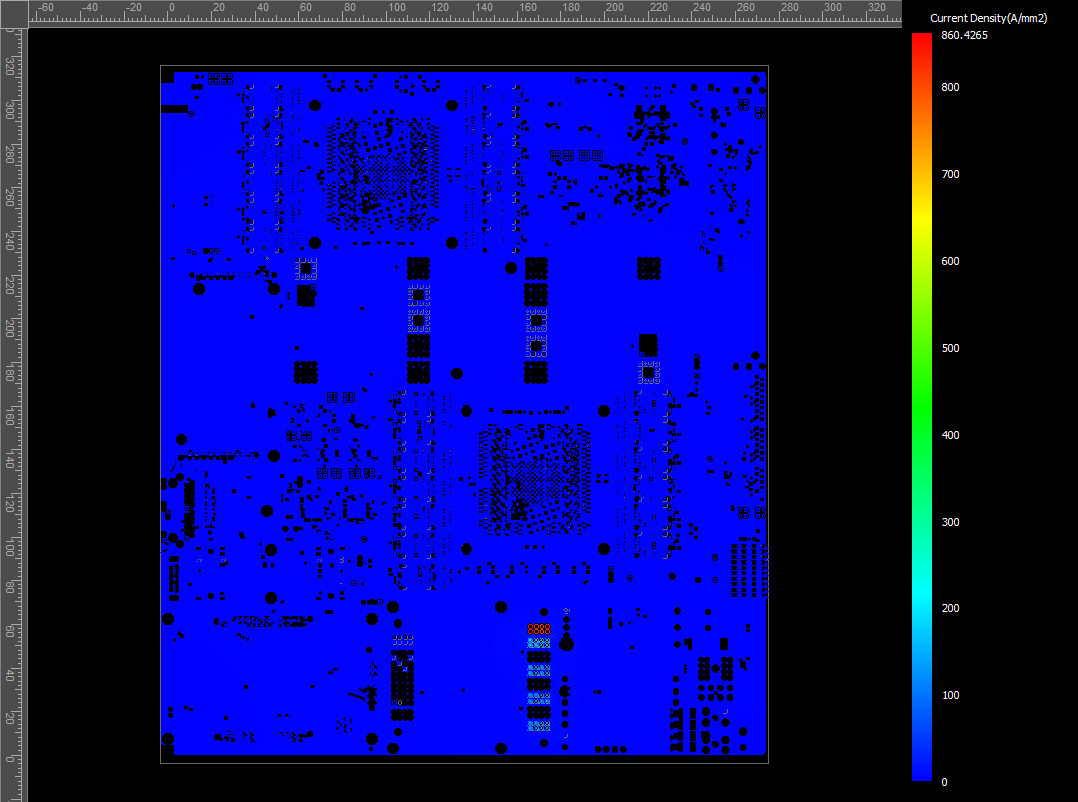

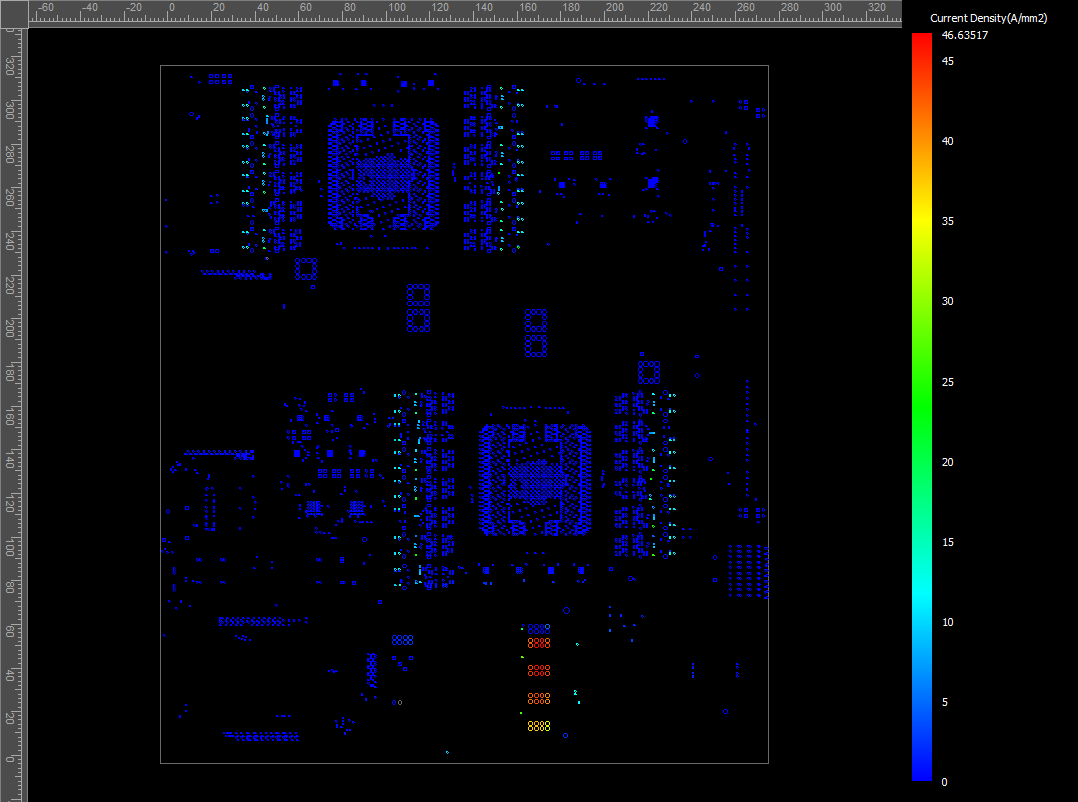

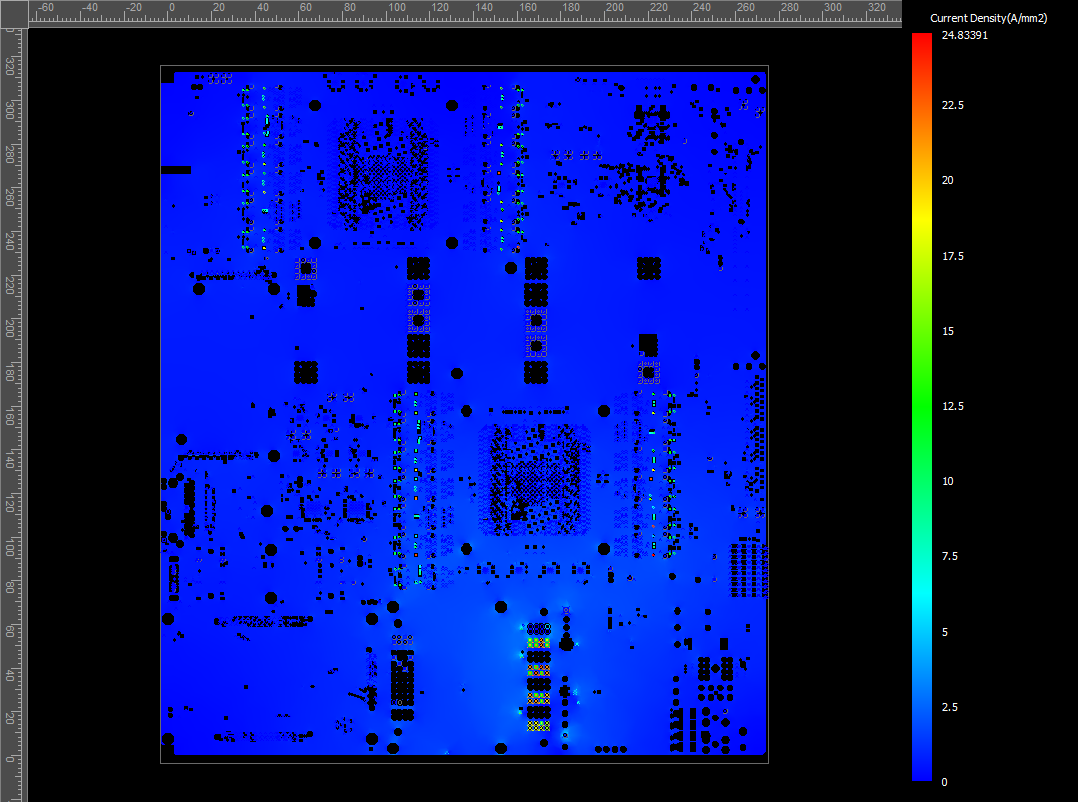

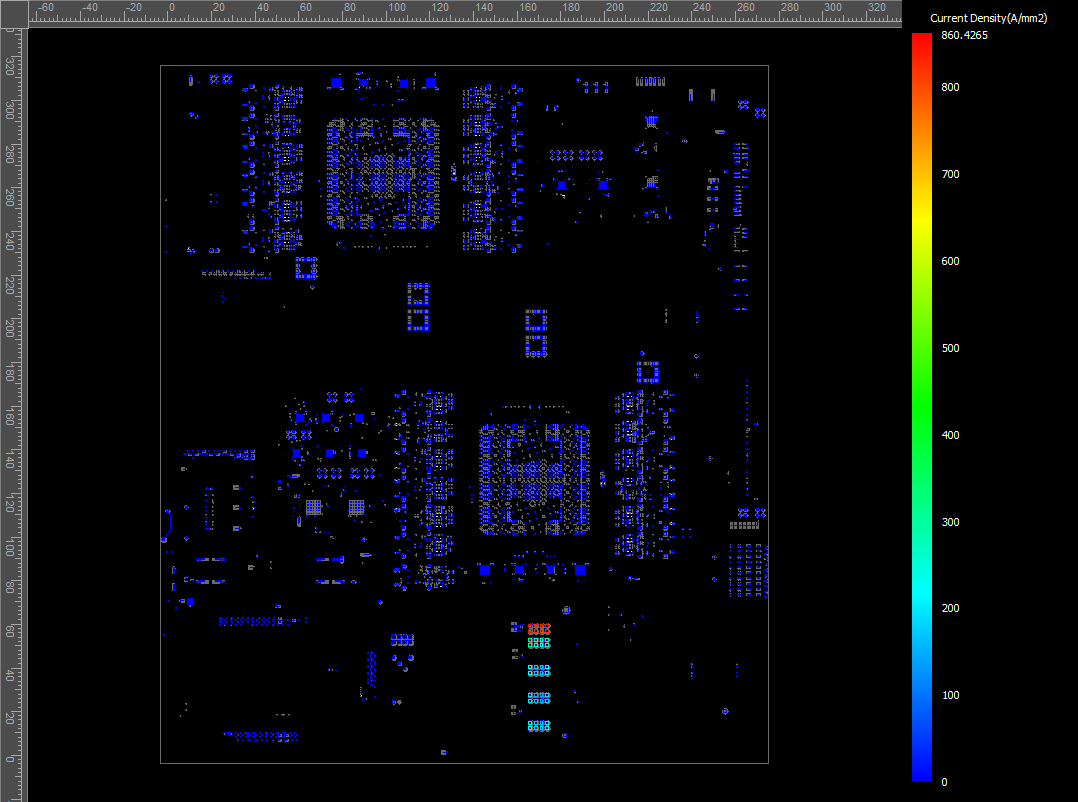

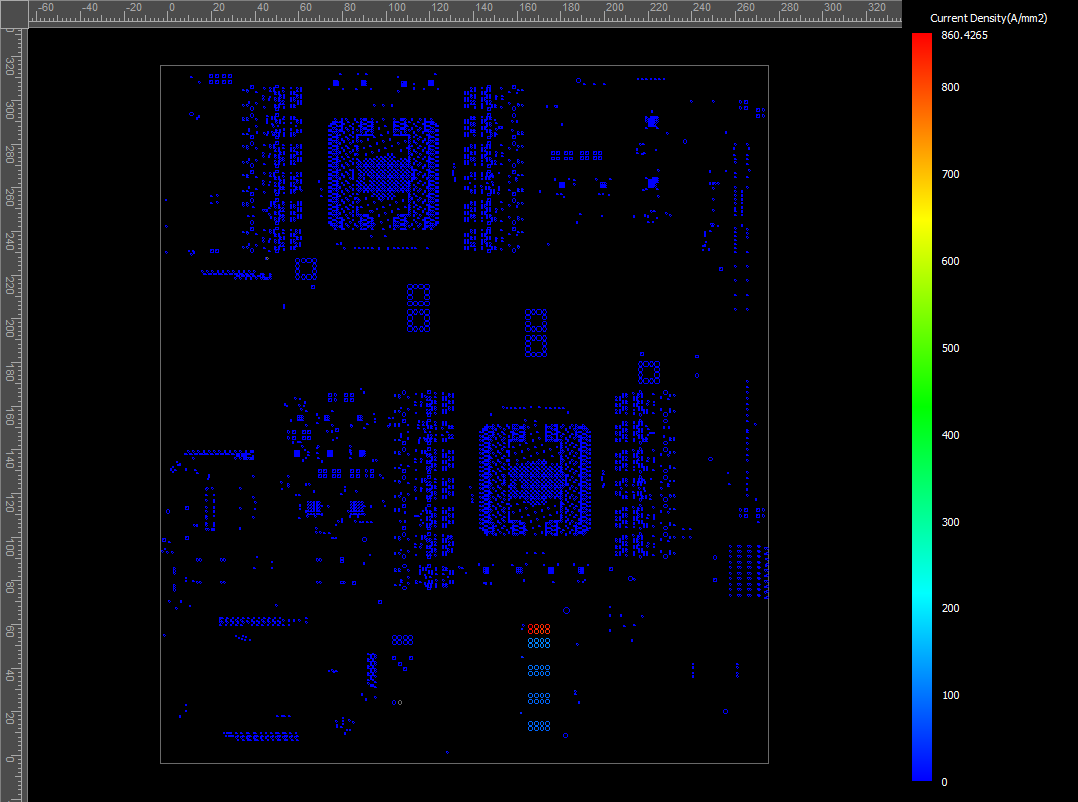

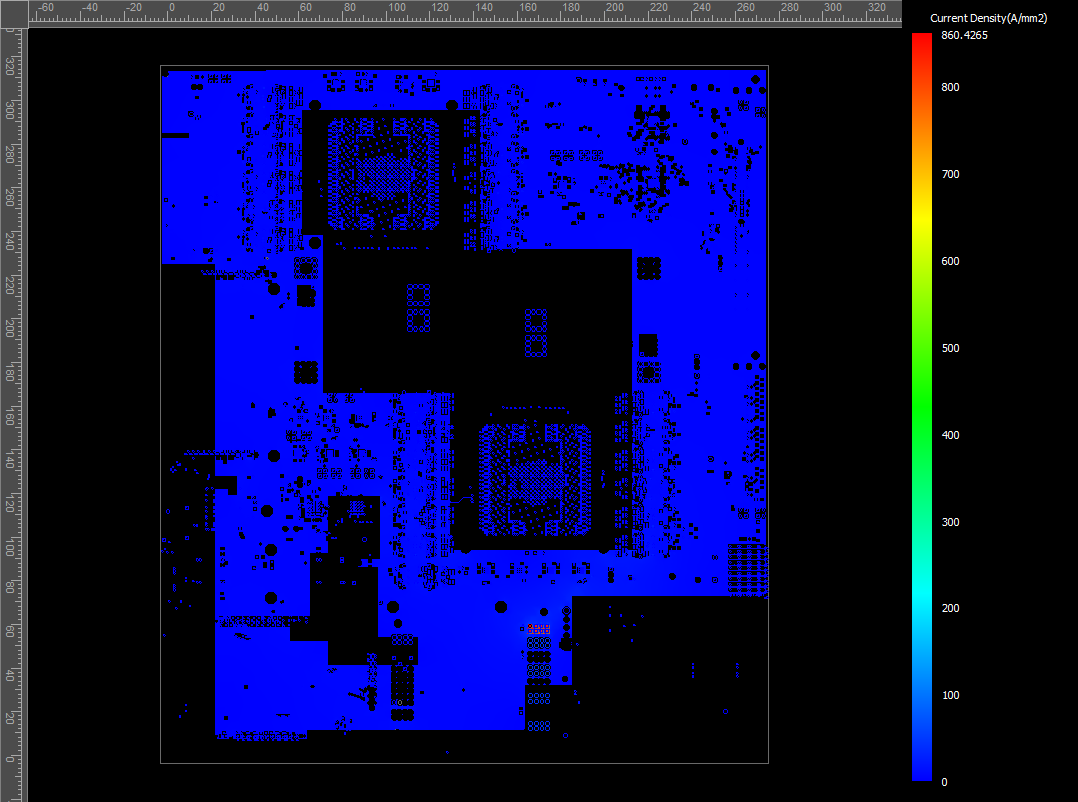

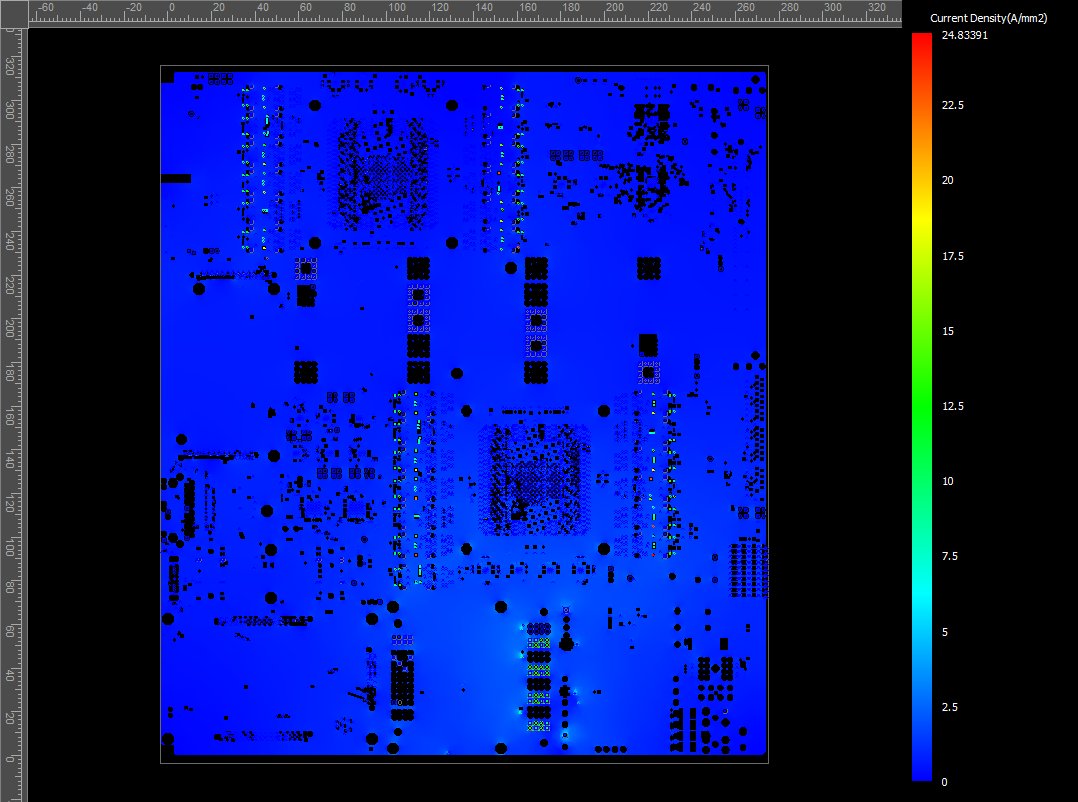

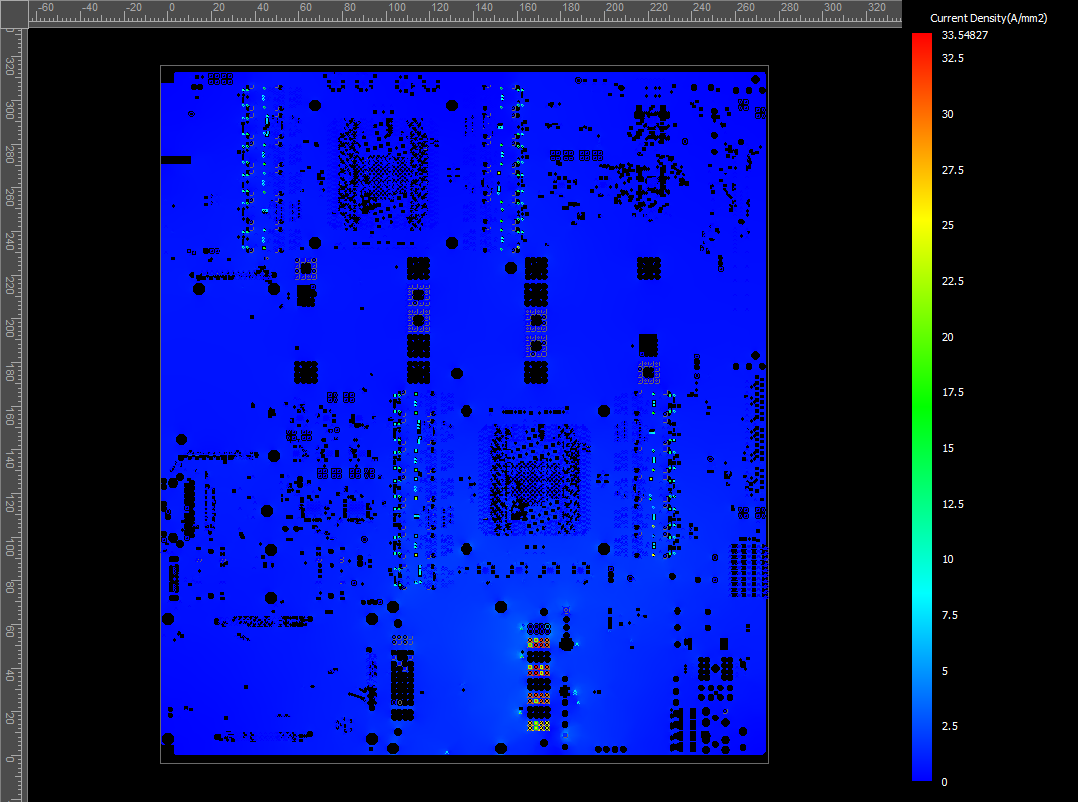

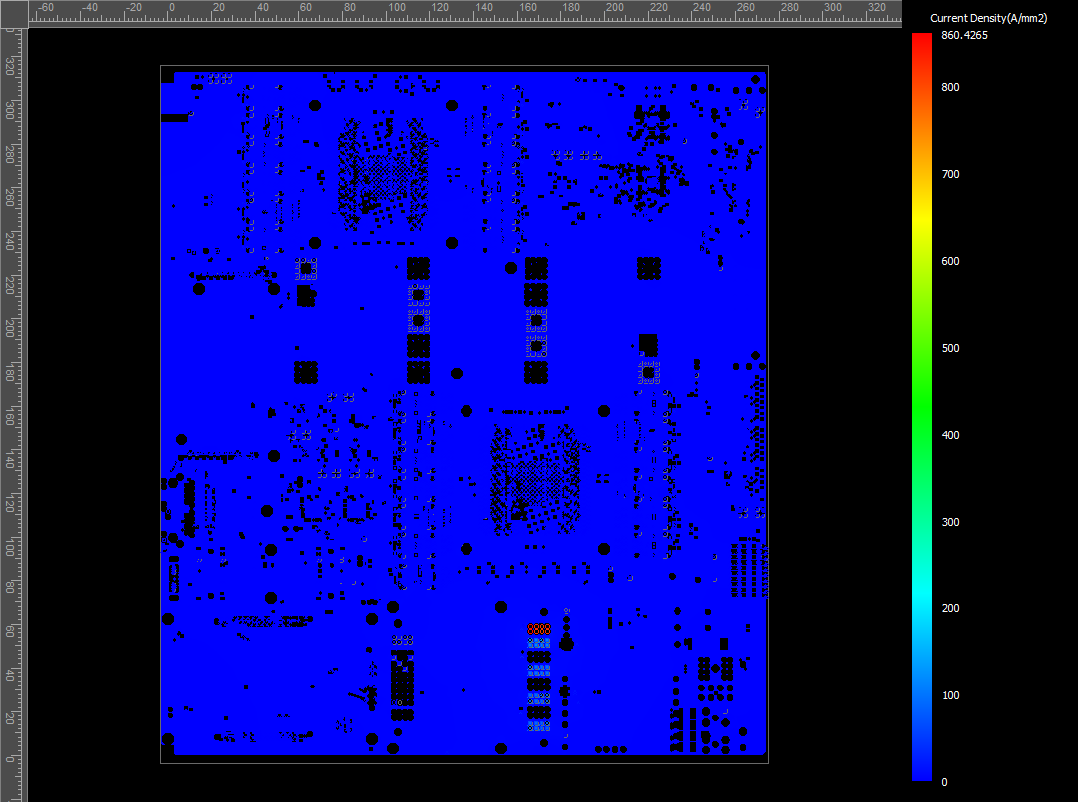

4.2 Current Density Plot

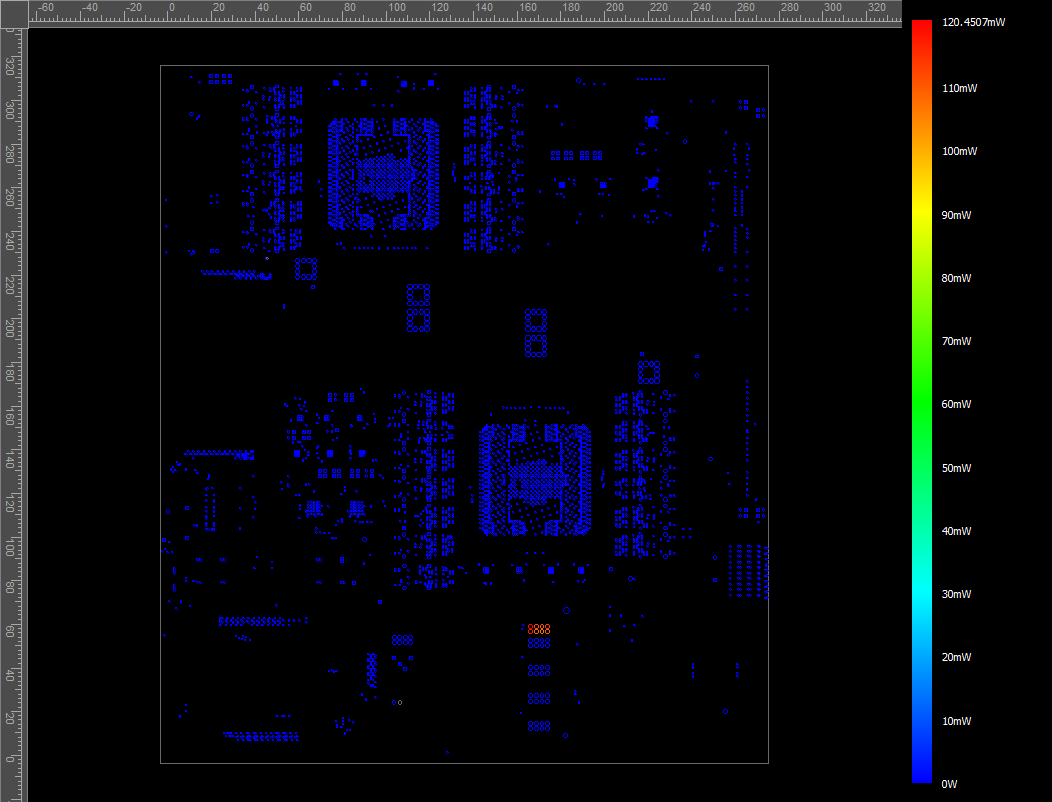

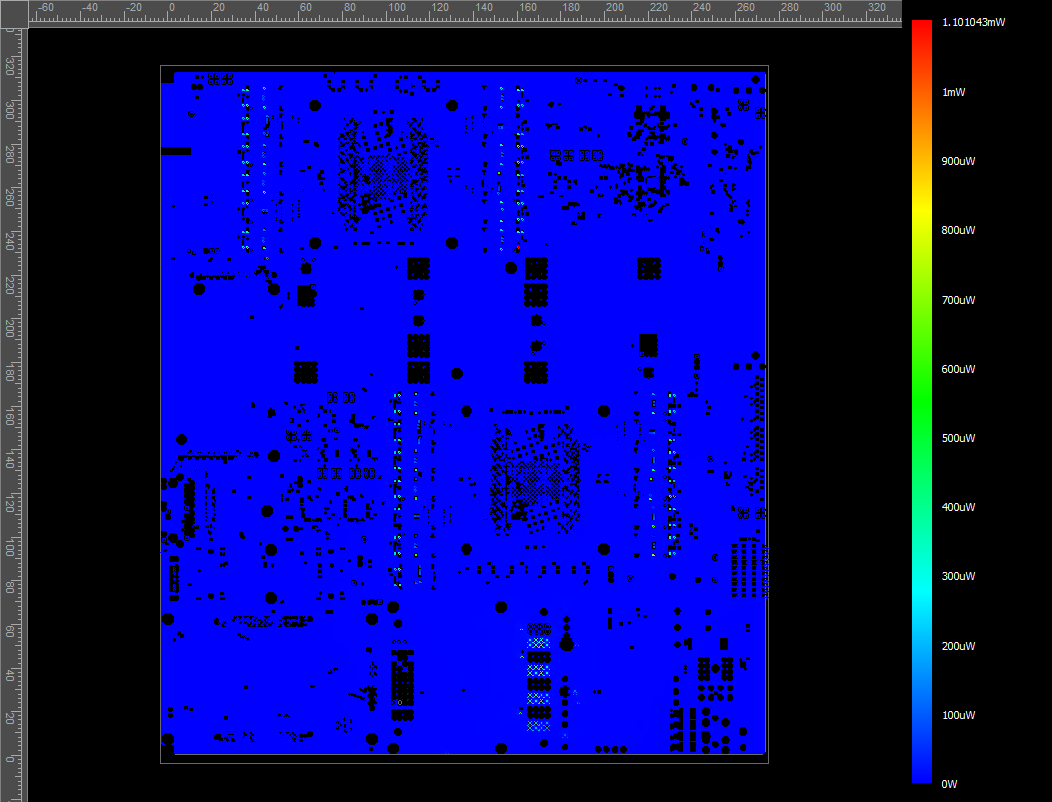

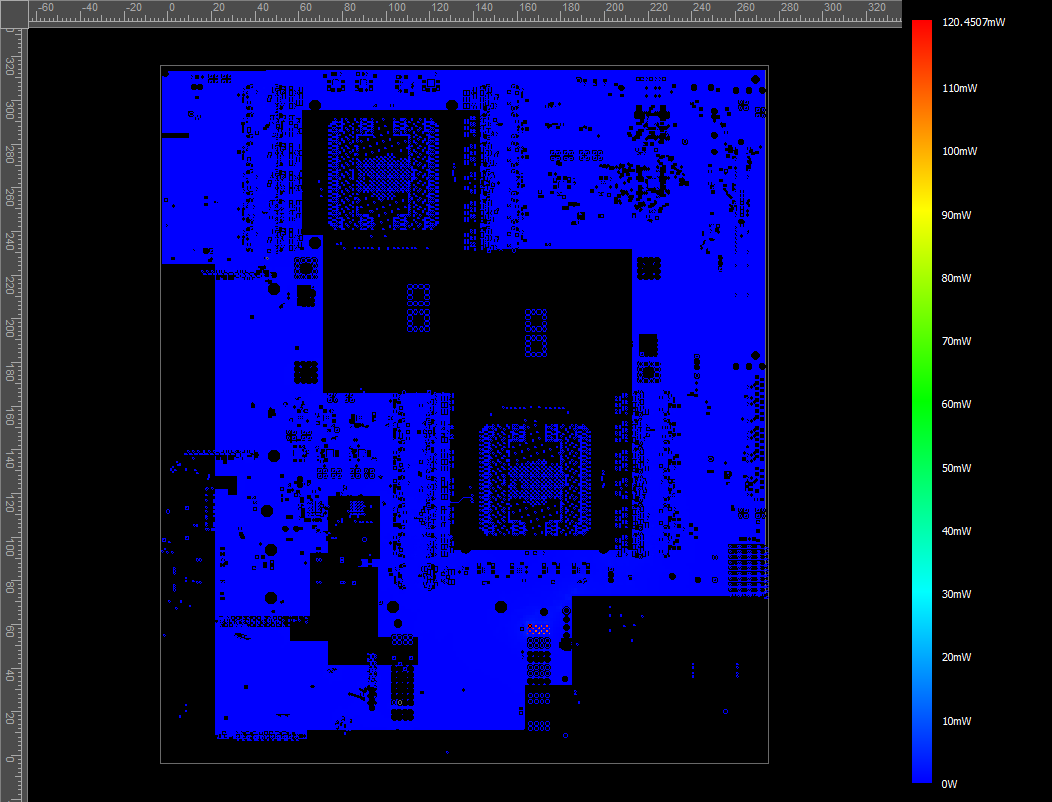

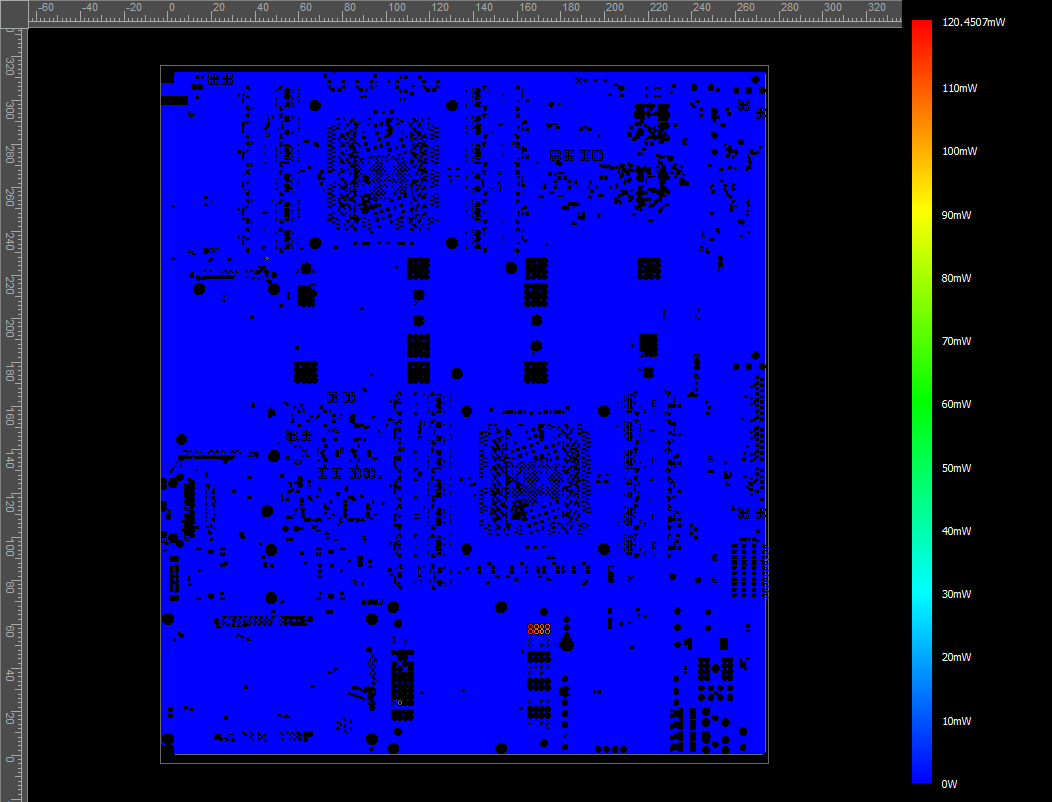

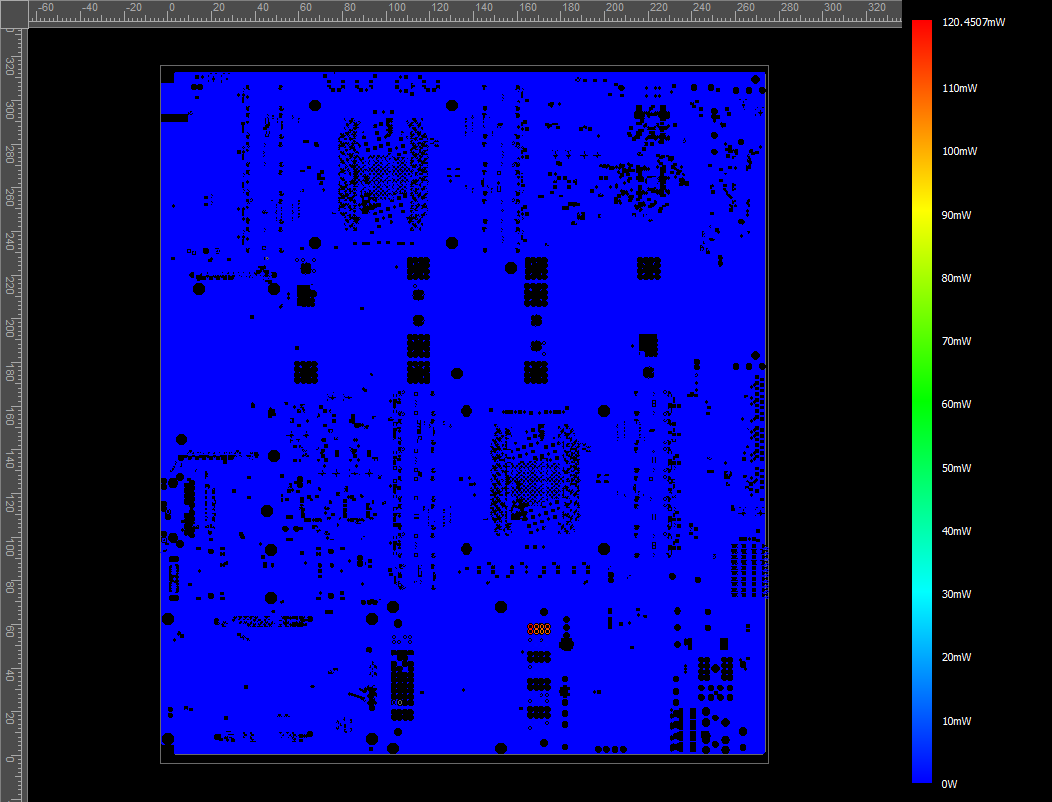

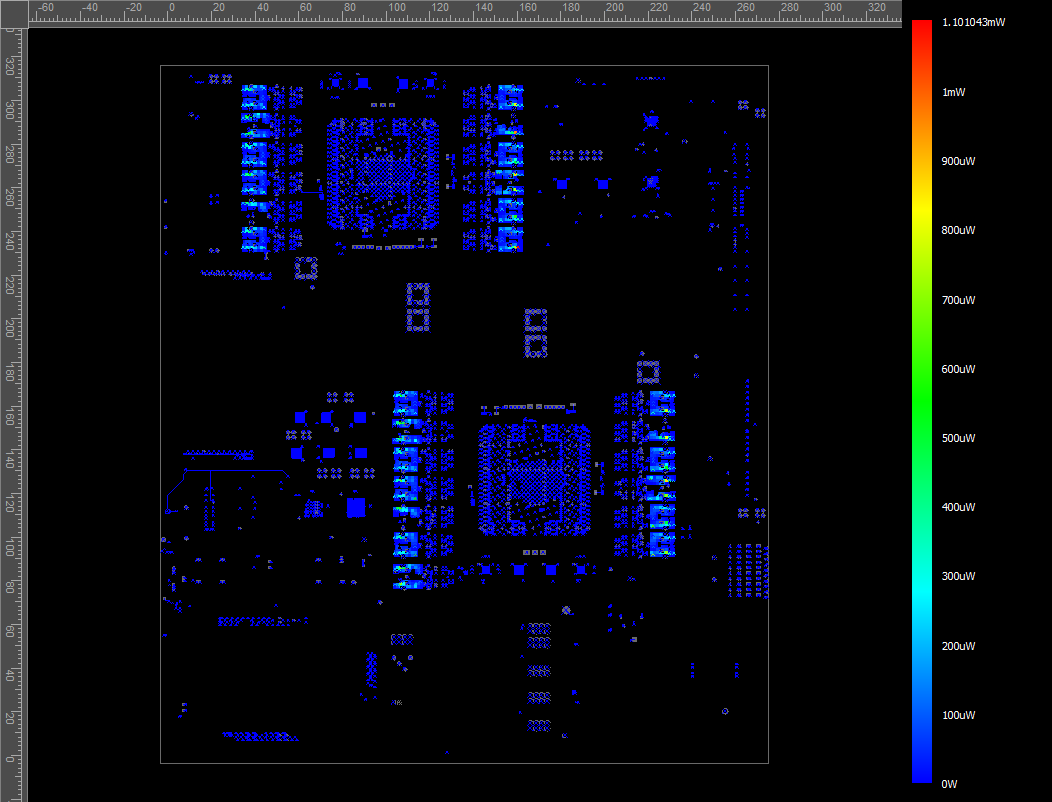

4.3 Power Loss Plot

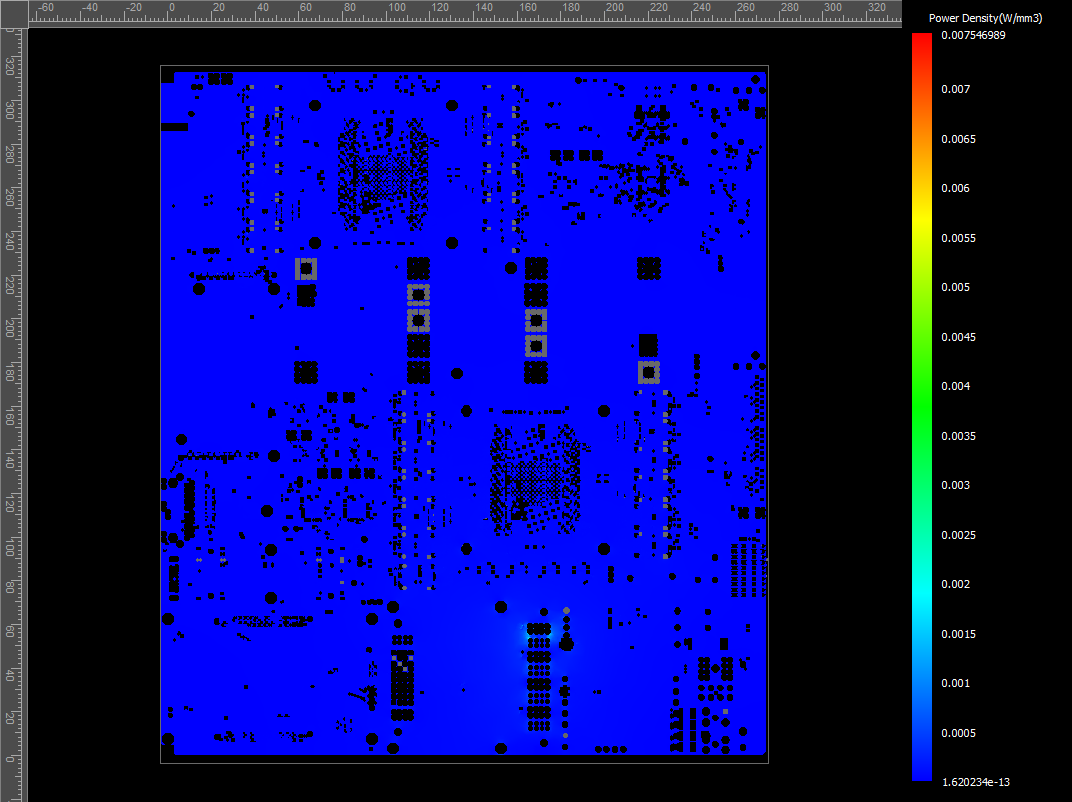

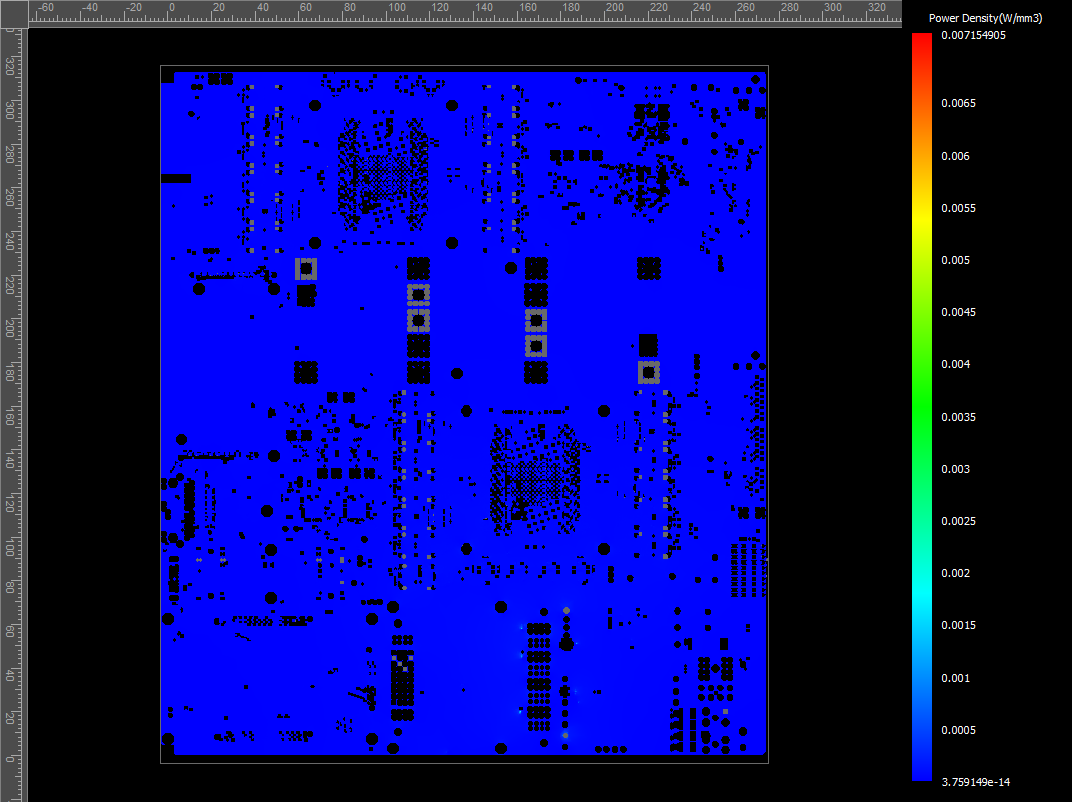

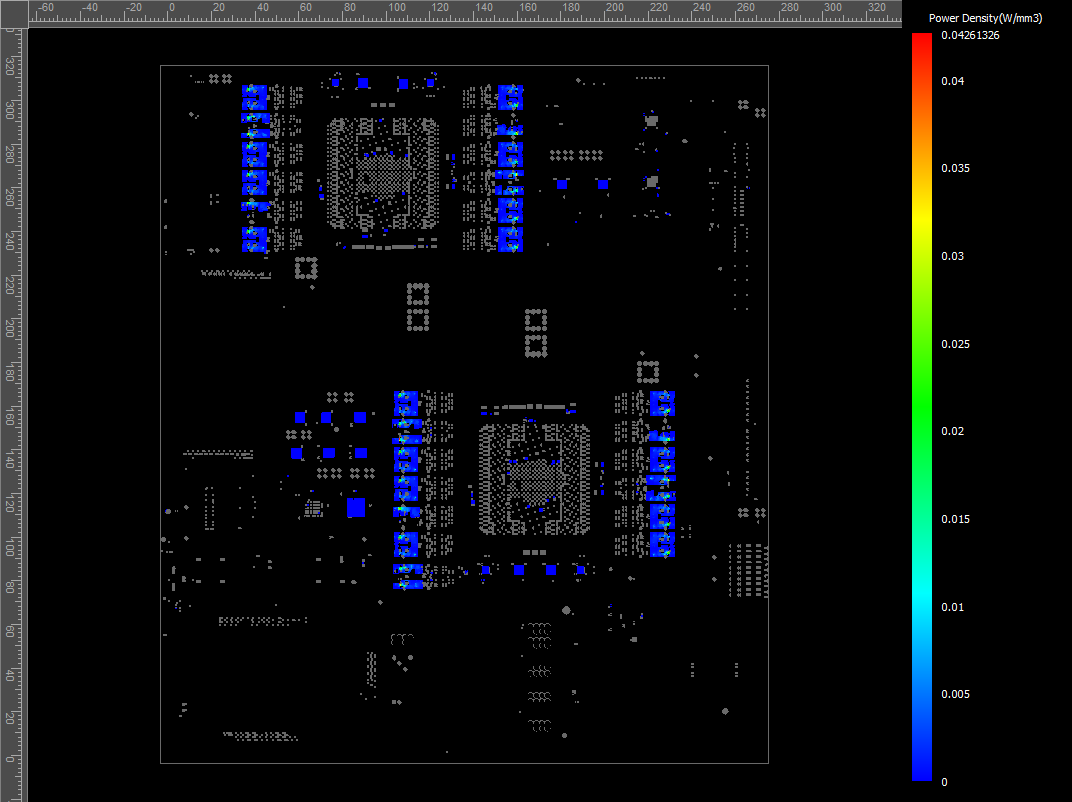

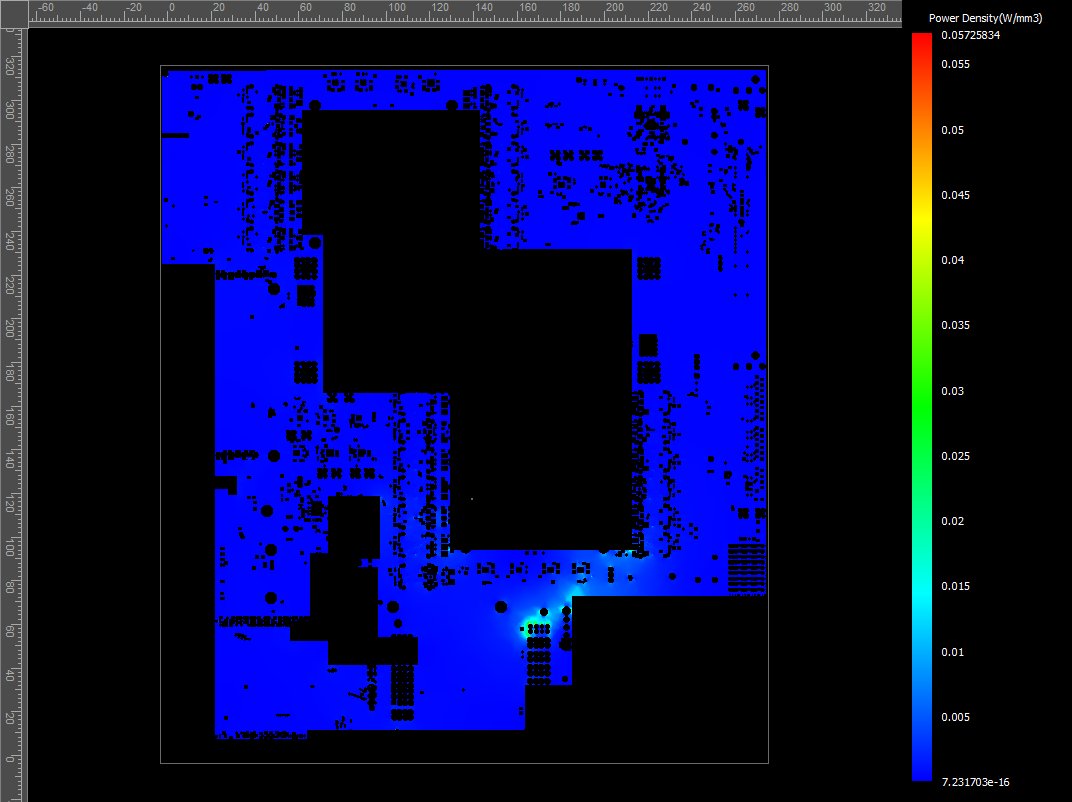

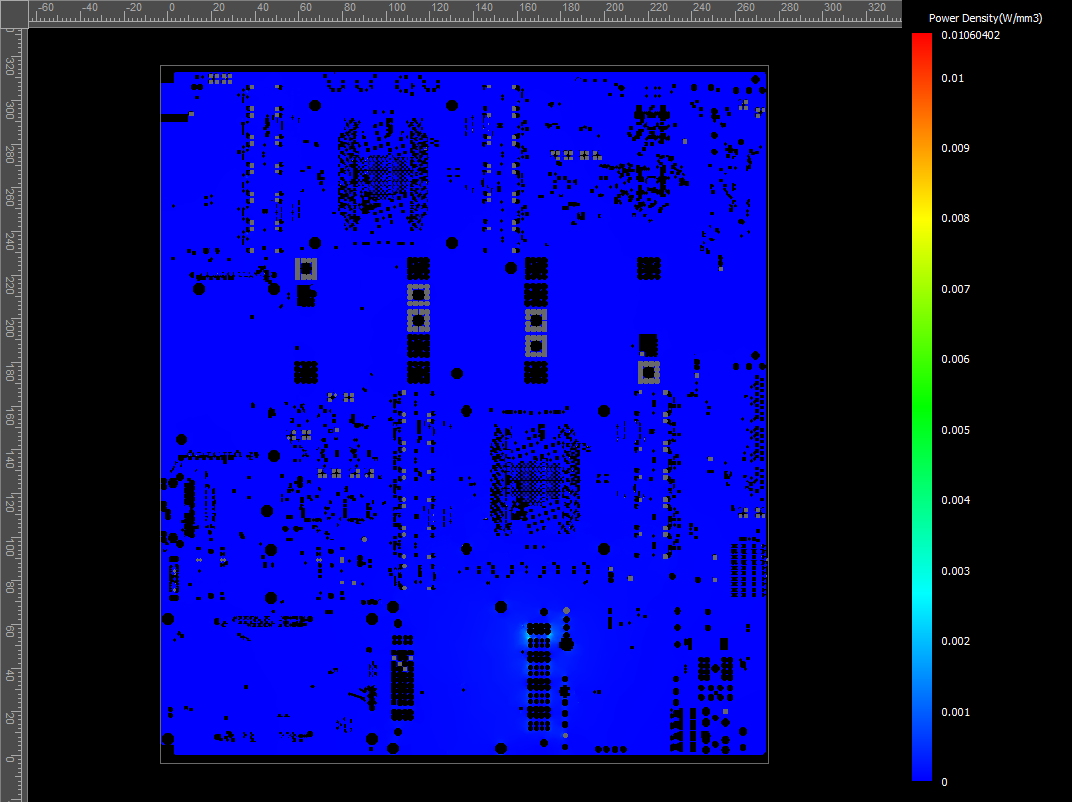

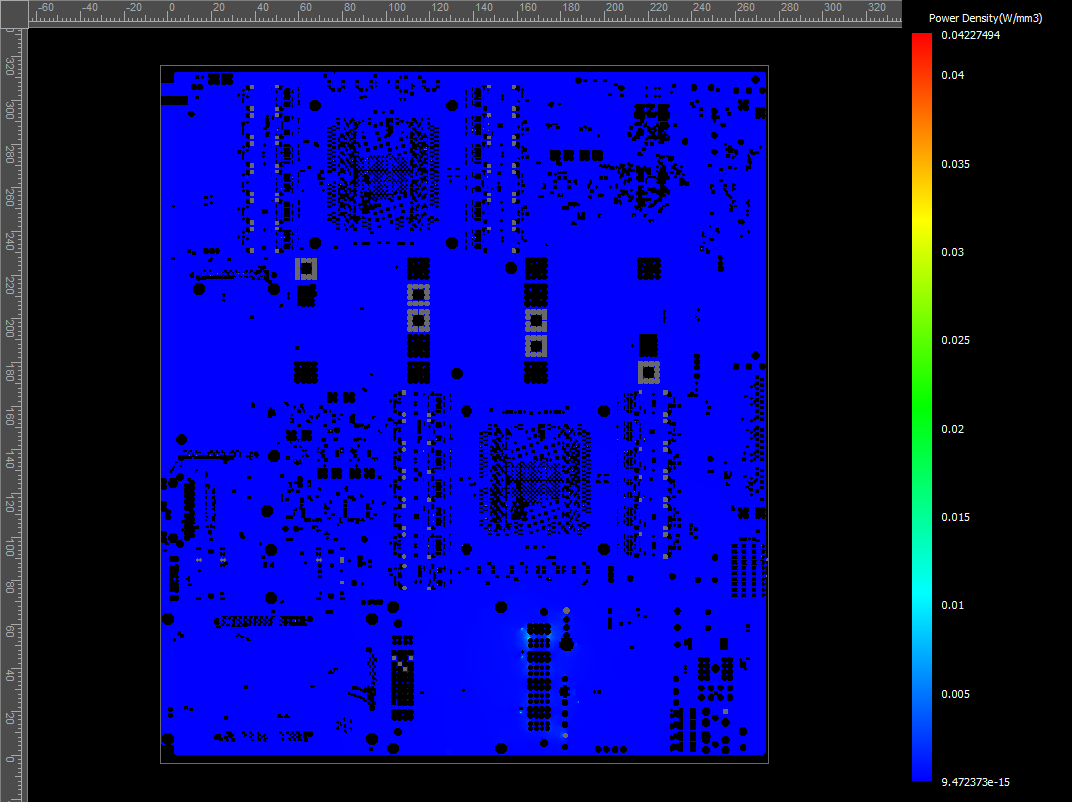

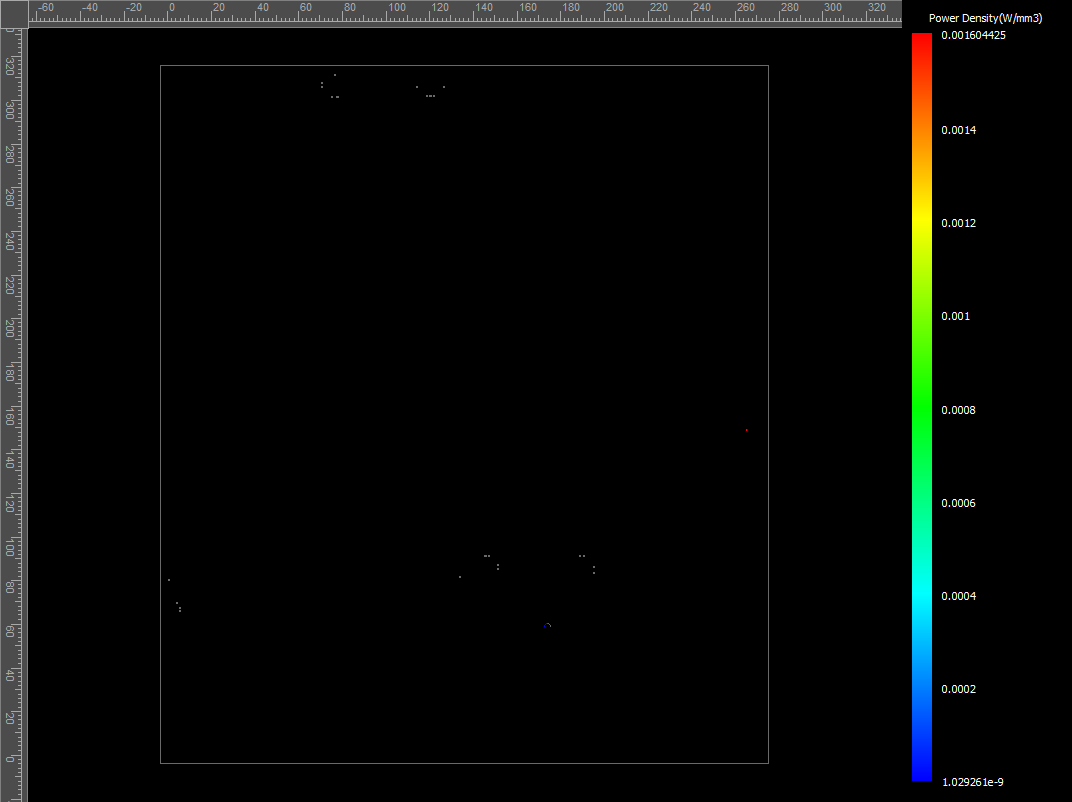

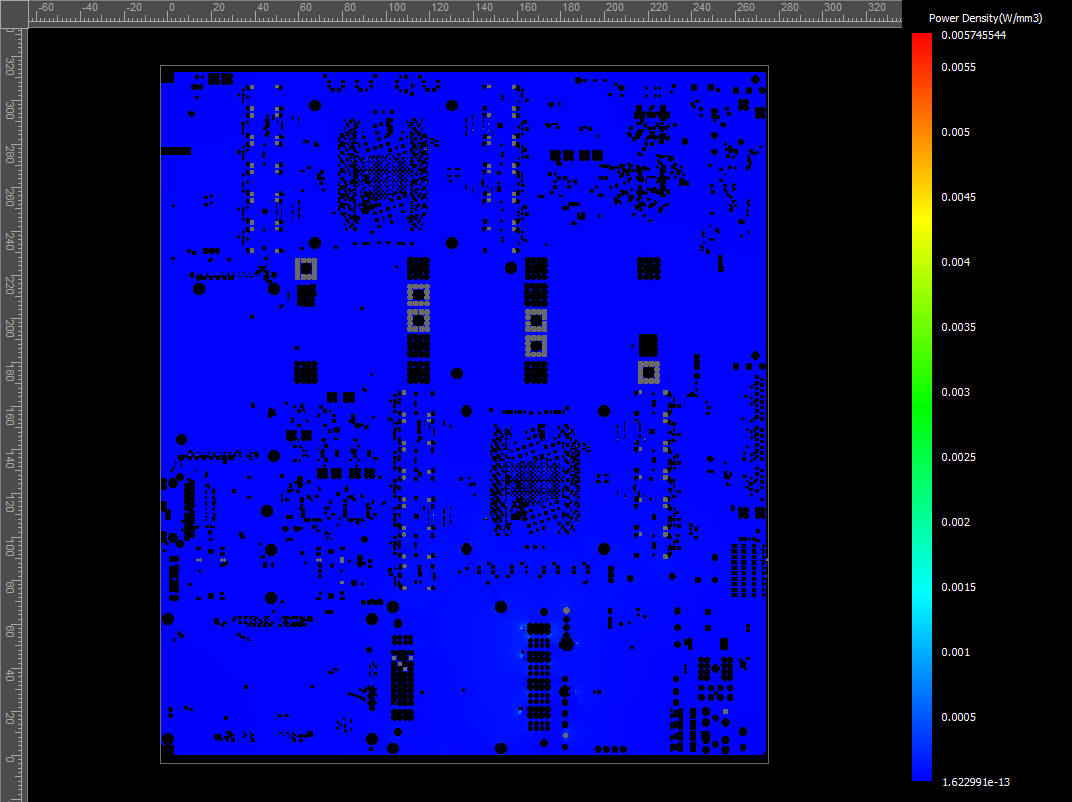

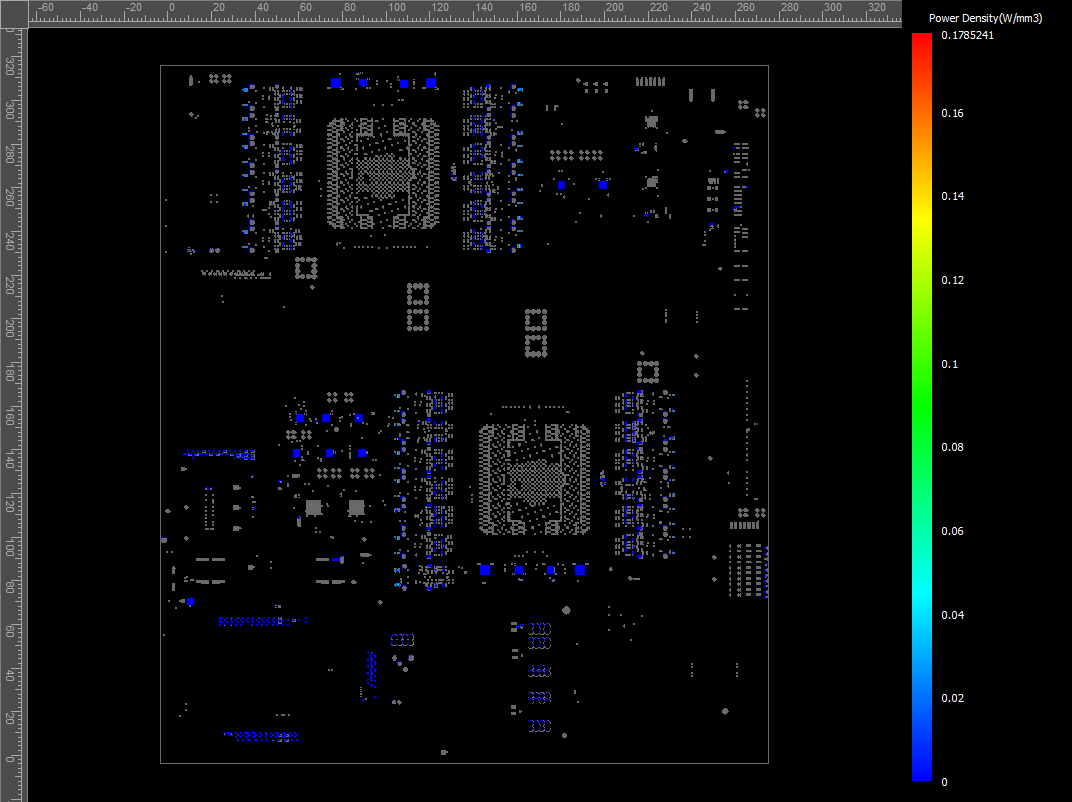

4.4 Power Density Plot

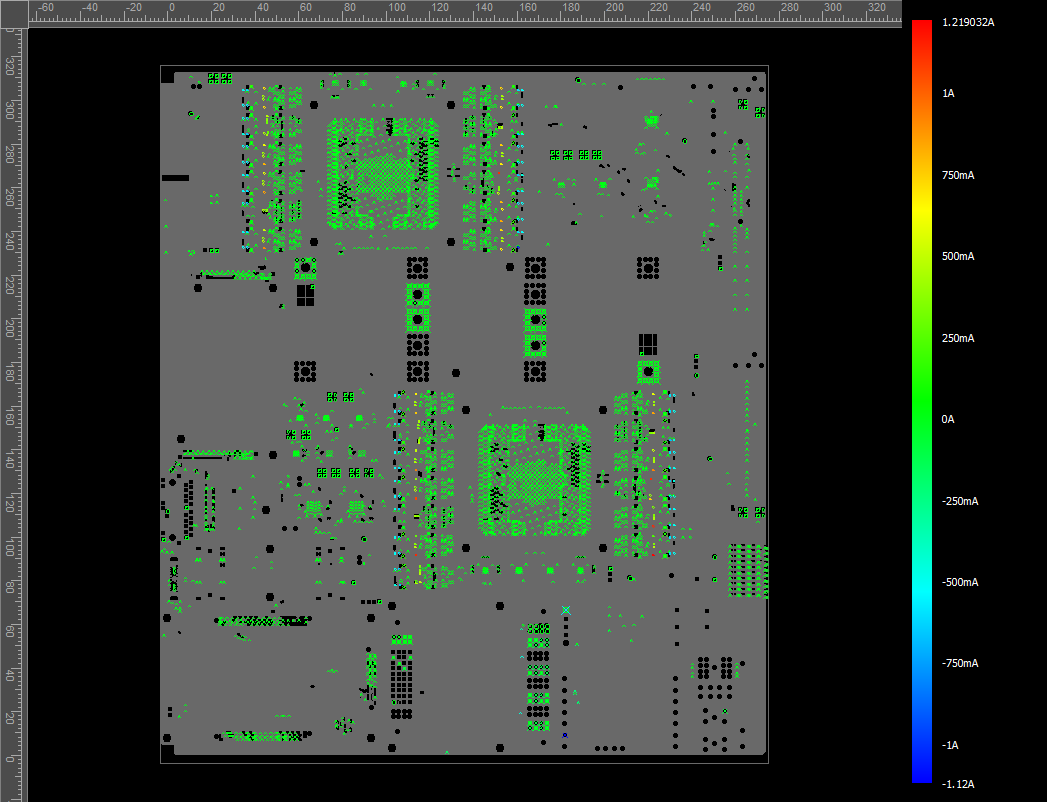

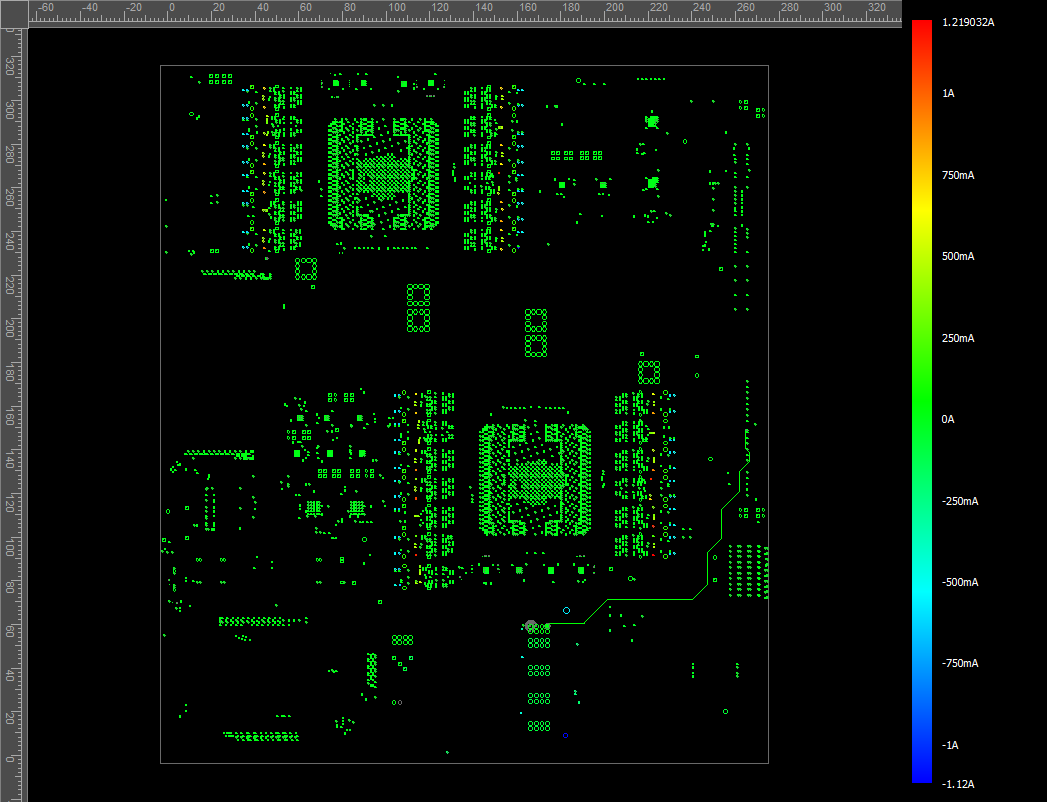

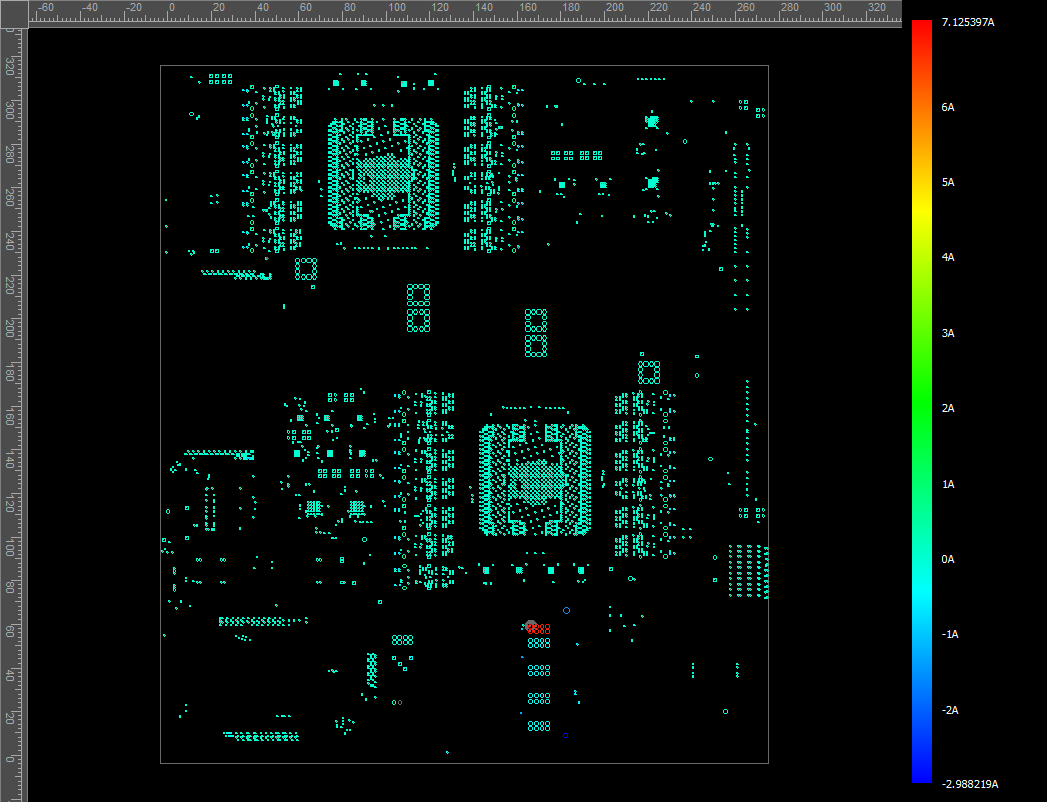

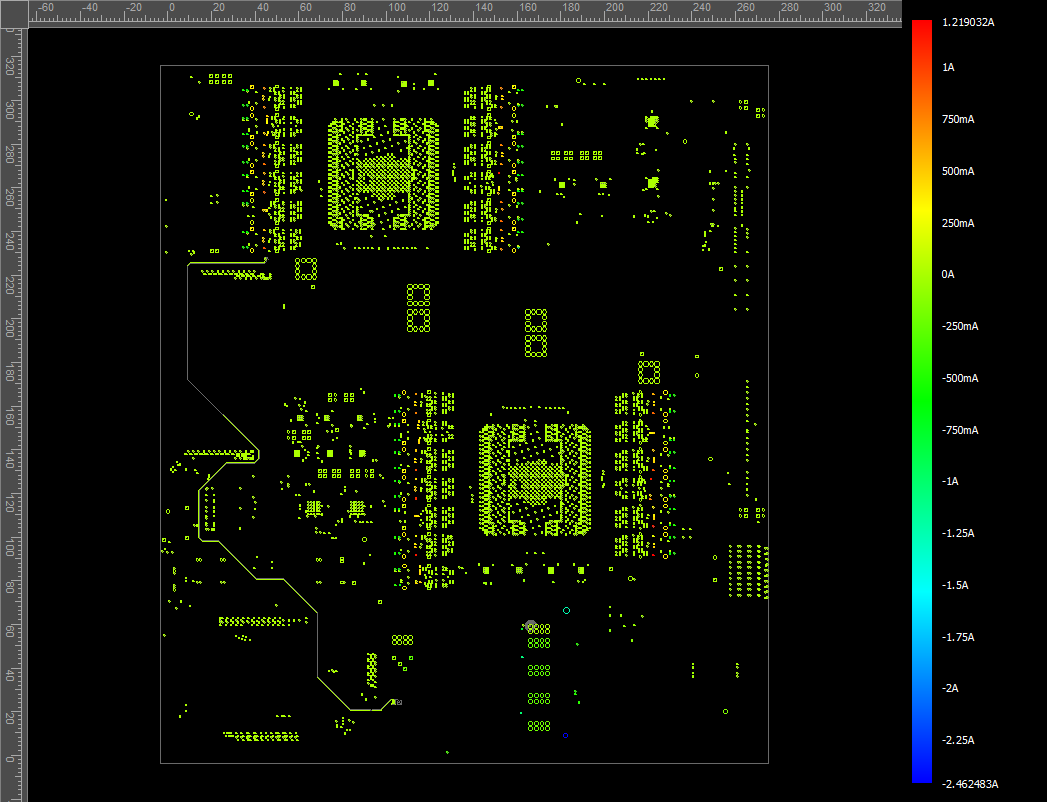

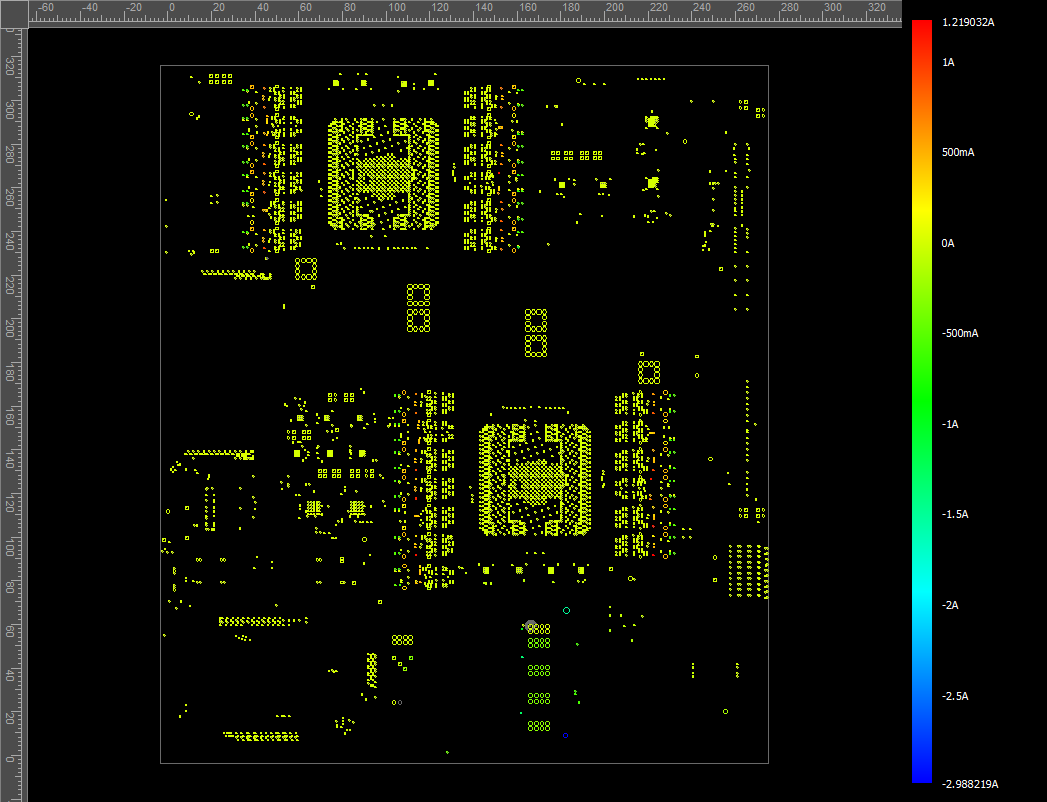

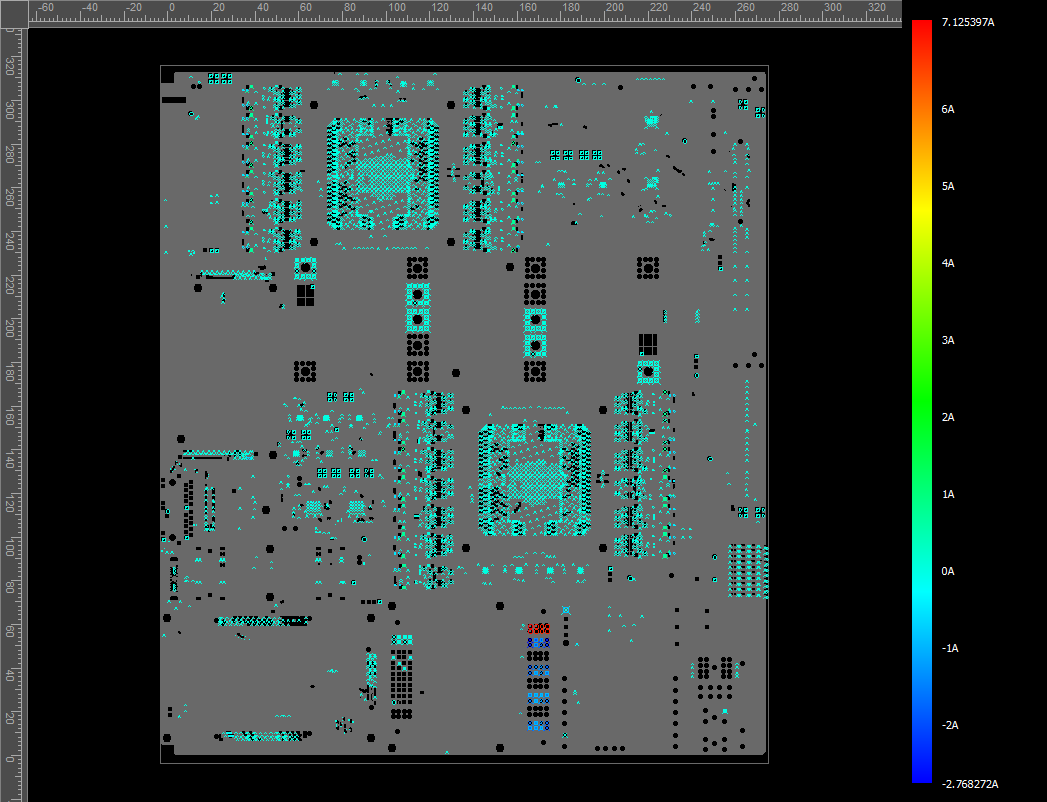

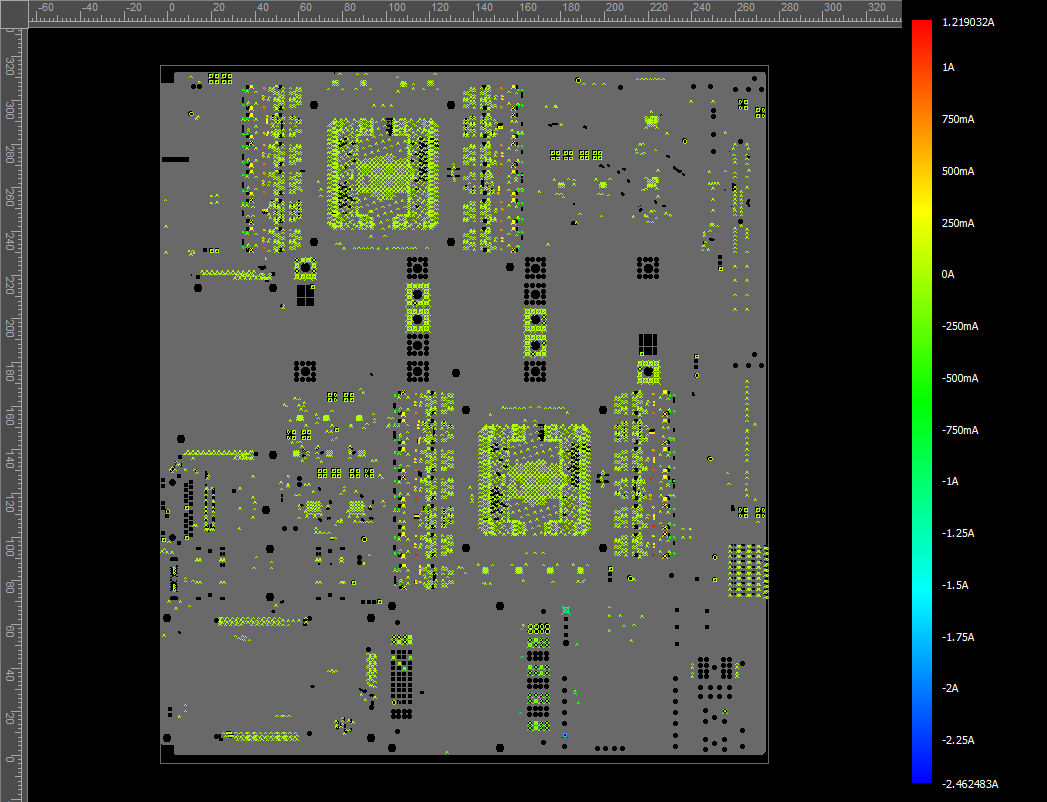

4.5 Current Plot

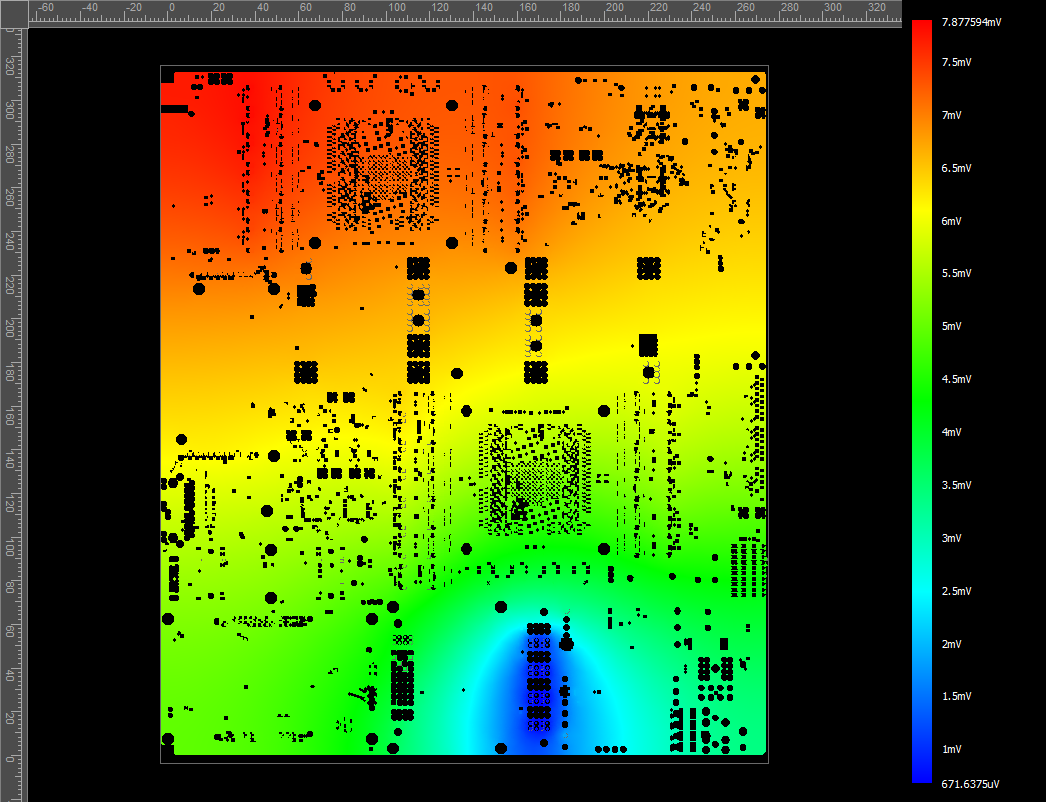

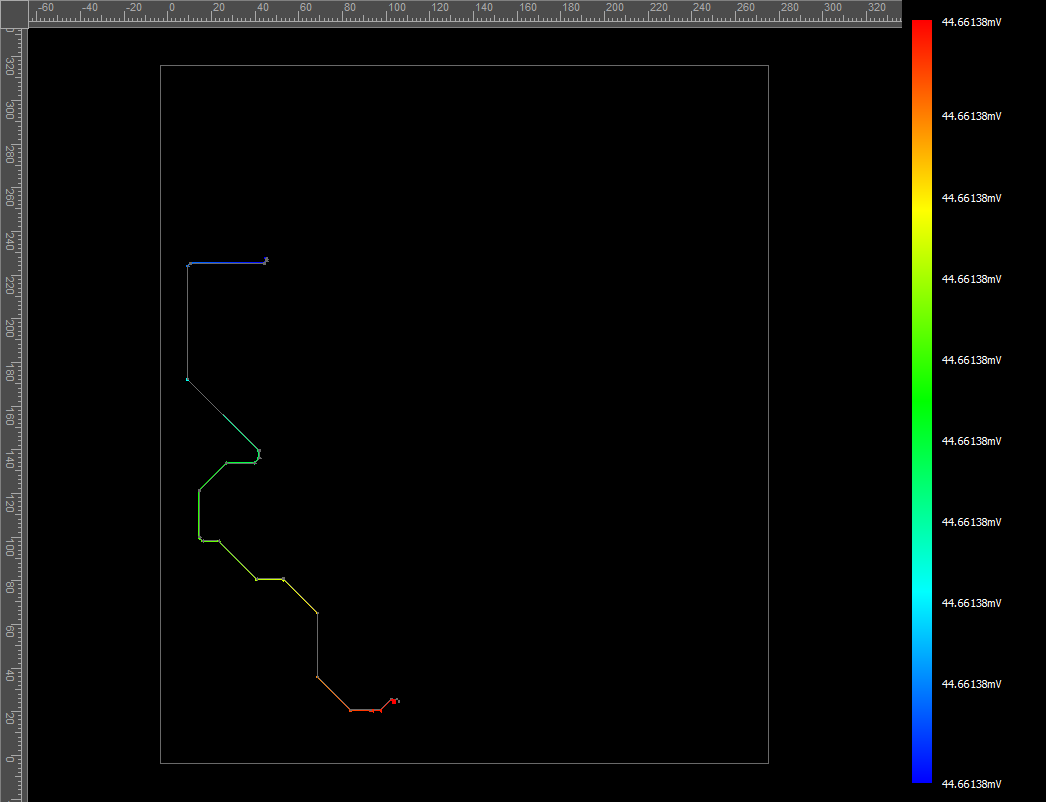

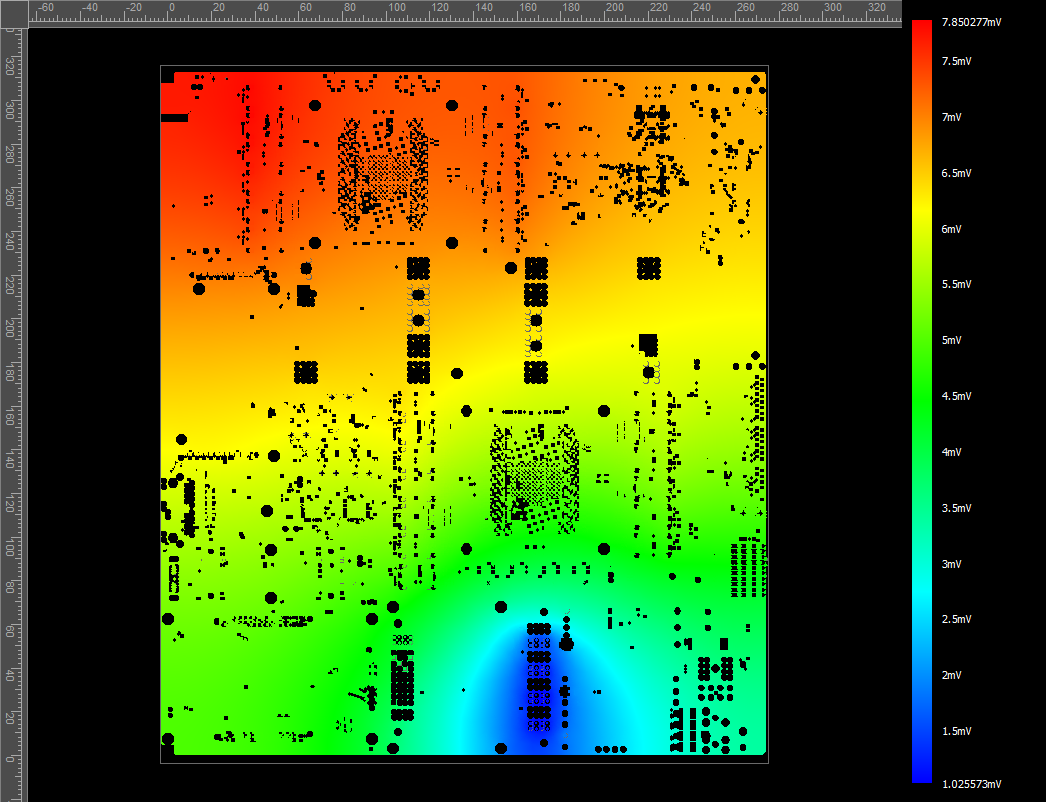

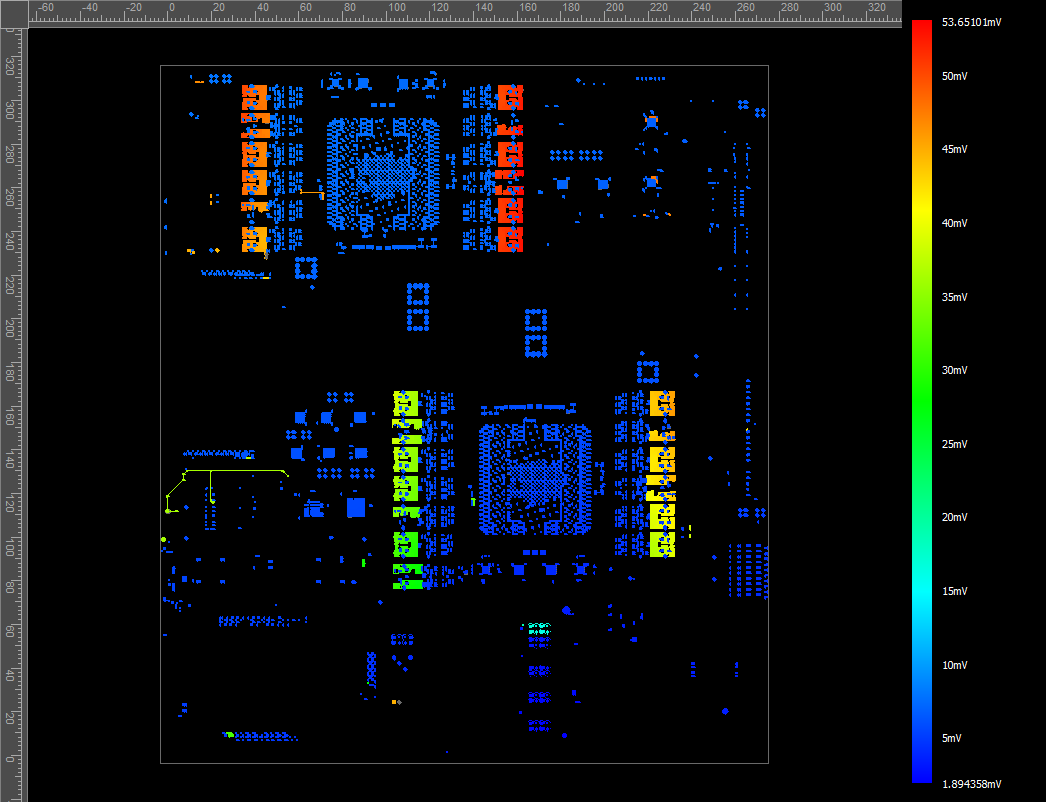

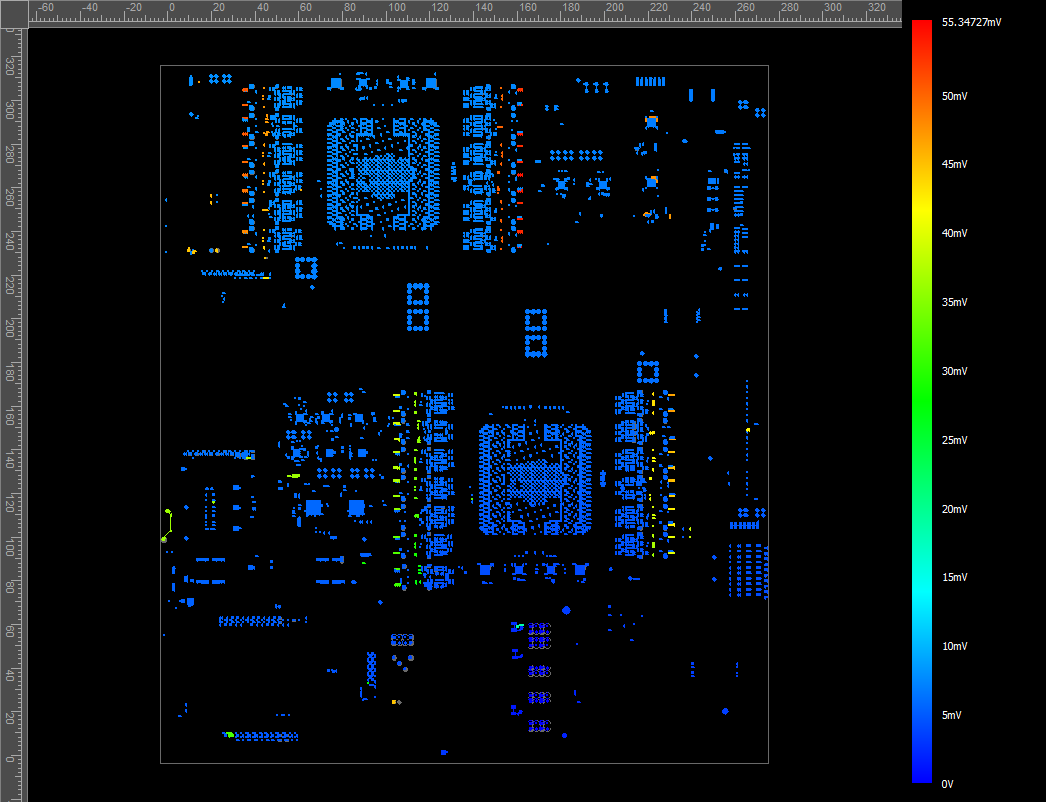

4.6 IRdrop Plot
5 Violation
1 General Information
1.1 Spd File Name and Location
PowerDC Version: 23.1.3.12171.472612 300
File Names and Locations:
- Workspace File : I:/fFEX_Document/IRDrop Simulation/BL/fFEX_Proto_V19_Droptest_U2_MGTAVCC.spd
- Layout File : I:/fFEX_Document/IRDrop Simulation/BL/fFEX_Proto_V19_Droptest_U2_MGTAVCC.spd
Return to Top
2 Simulation Setup
2.1 Electrical Setup
| VRM | Component name | Voltage (v) | (+) Net name | (-) Net name | Sense line (+) node | Sense line (-) node |
| VRM_J9_3V3_BL_GND | J9 | 3.3 | 3V3_BL | GND |
| Discrete | Component name | (+) Net name | (-) Net name | (+) Pin | (-) Pin | DC resistance (ohm) | I Max Allowance (A) |
| DISC_L1__U1_FF1_3V3_BL_3V3_P10__U1_FF1 | L1__U1_FF1 | 3V3_BL | 3V3_P10__U1_FF1 | 0 | 0 | ||
| DISC_L1__U1_FF2_3V3_BL_3V3_P10__U1_FF2 | L1__U1_FF2 | 3V3_BL | 3V3_P10__U1_FF2 | 0 | 0 | ||
| DISC_L1__U1_FF3_3V3_BL_3V3_P10__U1_FF3 | L1__U1_FF3 | 3V3_BL | 3V3_P10__U1_FF3 | 0 | 0 | ||
| DISC_L1__U1_FF4_3V3_BL_3V3_P10__U1_FF4 | L1__U1_FF4 | 3V3_BL | 3V3_P10__U1_FF4 | 0 | 0 | ||
| DISC_L1__U1_FF5_3V3_BL_3V3_P10__U1_FF5 | L1__U1_FF5 | 3V3_BL | 3V3_P10__U1_FF5 | 0 | 0 | ||
| DISC_L1__U1_FF6_3V3_BL_3V3_P10__U1_FF6 | L1__U1_FF6 | 3V3_BL | 3V3_P10__U1_FF6 | 0 | 0 | ||
| DISC_L1__U1_FF7_3V3_BL_3V3_P10__U1_FF7 | L1__U1_FF7 | 3V3_BL | 3V3_P10__U1_FF7 | 0 | 0 | ||
| DISC_L1__U1_FF8_3V3_BL_3V3_P10__U1_FF8 | L1__U1_FF8 | 3V3_BL | 3V3_P10__U1_FF8 | 0 | 0 | ||
| DISC_L1__U1_FF11_3V3_BL_3V3_RX__U1_FF11 | L1__U1_FF11 | 3V3_BL | 3V3_RX__U1_FF11 | 0 | 0 | ||
| DISC_L1__U1_FF12_3V3_BL_3V3_RX__U1_FF12 | L1__U1_FF12 | 3V3_BL | 3V3_RX__U1_FF12 | 0 | 0 | ||
| DISC_L1__U1_FF25_3V3_BL_3V3_RX__U1_FF25 | L1__U1_FF25 | 3V3_BL | 3V3_RX__U1_FF25 | 0 | 0 | ||
| DISC_L1__U2_FF1_3V3_BL_3V3_P10__U2_FF1 | L1__U2_FF1 | 3V3_BL | 3V3_P10__U2_FF1 | 0 | 0 | ||
| DISC_L1__U2_FF2_3V3_BL_3V3_P10__U2_FF2 | L1__U2_FF2 | 3V3_BL | 3V3_P10__U2_FF2 | 0 | 0 | ||
| DISC_L1__U2_FF3_3V3_BL_3V3_P10__U2_FF3 | L1__U2_FF3 | 3V3_BL | 3V3_P10__U2_FF3 | 0 | 0 | ||
| DISC_L1__U2_FF4_3V3_BL_3V3_P10__U2_FF4 | L1__U2_FF4 | 3V3_BL | 3V3_P10__U2_FF4 | 0 | 0 | ||
| DISC_L1__U2_FF5_3V3_BL_3V3_P10__U2_FF5 | L1__U2_FF5 | 3V3_BL | 3V3_P10__U2_FF5 | 0 | 0 | ||
| DISC_L1__U2_FF6_3V3_BL_3V3_P10__U2_FF6 | L1__U2_FF6 | 3V3_BL | 3V3_P10__U2_FF6 | 0 | 0 | ||
| DISC_L1__U2_FF7_3V3_BL_3V3_P10__U2_FF7 | L1__U2_FF7 | 3V3_BL | 3V3_P10__U2_FF7 | 0 | 0 | ||
| DISC_L1__U2_FF8_3V3_BL_3V3_P10__U2_FF8 | L1__U2_FF8 | 3V3_BL | 3V3_P10__U2_FF8 | 0 | 0 | ||
| DISC_L1__U2_FF11_3V3_BL_3V3_RX__U2_FF11 | L1__U2_FF11 | 3V3_BL | 3V3_RX__U2_FF11 | 0 | 0 | ||
| DISC_L1__U2_FF12_3V3_BL_3V3_RX__U2_FF12 | L1__U2_FF12 | 3V3_BL | 3V3_RX__U2_FF12 | 0 | 0 | ||
| DISC_L2__U1_FF1_3V3_BL_3V3_P1__U1_FF1 | L2__U1_FF1 | 3V3_BL | 3V3_P1__U1_FF1 | 0 | 0 | ||
| DISC_L2__U1_FF2_3V3_BL_3V3_P1__U1_FF2 | L2__U1_FF2 | 3V3_BL | 3V3_P1__U1_FF2 | 0 | 0 | ||
| DISC_L2__U1_FF3_3V3_BL_3V3_P1__U1_FF3 | L2__U1_FF3 | 3V3_BL | 3V3_P1__U1_FF3 | 0 | 0 | ||
| DISC_L2__U1_FF4_3V3_BL_3V3_P1__U1_FF4 | L2__U1_FF4 | 3V3_BL | 3V3_P1__U1_FF4 | 0 | 0 | ||
| DISC_L2__U1_FF5_3V3_BL_3V3_P1__U1_FF5 | L2__U1_FF5 | 3V3_BL | 3V3_P1__U1_FF5 | 0 | 0 | ||
| DISC_L2__U1_FF6_3V3_BL_3V3_P1__U1_FF6 | L2__U1_FF6 | 3V3_BL | 3V3_P1__U1_FF6 | 0 | 0 | ||
| DISC_L2__U1_FF7_3V3_BL_3V3_P1__U1_FF7 | L2__U1_FF7 | 3V3_BL | 3V3_P1__U1_FF7 | 0 | 0 | ||
| DISC_L2__U1_FF8_3V3_BL_3V3_P1__U1_FF8 | L2__U1_FF8 | 3V3_BL | 3V3_P1__U1_FF8 | 0 | 0 | ||
| DISC_L2__U1_FF9_3V3_BL_3V3_P1__U1_FF9 | L2__U1_FF9 | 3V3_BL | 3V3_P1__U1_FF9 | 0 | 0 | ||
| DISC_L2__U1_FF10_3V3_BL_3V3_P1__U1_FF10 | L2__U1_FF10 | 3V3_BL | 3V3_P1__U1_FF10 | 0 | 0 | ||
| DISC_L2__U2_FF1_3V3_BL_3V3_P1__U2_FF1 | L2__U2_FF1 | 3V3_BL | 3V3_P1__U2_FF1 | 0 | 0 | ||
| DISC_L2__U2_FF2_3V3_BL_3V3_P1__U2_FF2 | L2__U2_FF2 | 3V3_BL | 3V3_P1__U2_FF2 | 0 | 0 | ||
| DISC_L2__U2_FF3_3V3_BL_3V3_P1__U2_FF3 | L2__U2_FF3 | 3V3_BL | 3V3_P1__U2_FF3 | 0 | 0 | ||
| DISC_L2__U2_FF4_3V3_BL_3V3_P1__U2_FF4 | L2__U2_FF4 | 3V3_BL | 3V3_P1__U2_FF4 | 0 | 0 | ||
| DISC_L2__U2_FF5_3V3_BL_3V3_P1__U2_FF5 | L2__U2_FF5 | 3V3_BL | 3V3_P1__U2_FF5 | 0 | 0 | ||
| DISC_L2__U2_FF6_3V3_BL_3V3_P1__U2_FF6 | L2__U2_FF6 | 3V3_BL | 3V3_P1__U2_FF6 | 0 | 0 | ||
| DISC_L2__U2_FF7_3V3_BL_3V3_P1__U2_FF7 | L2__U2_FF7 | 3V3_BL | 3V3_P1__U2_FF7 | 0 | 0 | ||
| DISC_L2__U2_FF8_3V3_BL_3V3_P1__U2_FF8 | L2__U2_FF8 | 3V3_BL | 3V3_P1__U2_FF8 | 0 | 0 | ||
| DISC_L2__U2_FF9_3V3_BL_3V3_P1__U2_FF9 | L2__U2_FF9 | 3V3_BL | 3V3_P1__U2_FF9 | 0 | 0 | ||
| DISC_L2__U2_FF10_3V3_BL_3V3_P1__U2_FF10 | L2__U2_FF10 | 3V3_BL | 3V3_P1__U2_FF10 | 0 | 0 | ||
| DISC_L3__U1_FF11_3V3_BL_3V3_TX__U1_FF11 | L3__U1_FF11 | 3V3_BL | 3V3_TX__U1_FF11 | 0 | 0 | ||
| DISC_L3__U1_FF12_3V3_BL_3V3_TX__U1_FF12 | L3__U1_FF12 | 3V3_BL | 3V3_TX__U1_FF12 | 0 | 0 | ||
| DISC_L3__U1_FF25_3V3_BL_3V3_TX__U1_FF25 | L3__U1_FF25 | 3V3_BL | 3V3_TX__U1_FF25 | 0 | 0 | ||
| DISC_L3__U2_FF11_3V3_BL_3V3_TX__U2_FF11 | L3__U2_FF11 | 3V3_BL | 3V3_TX__U2_FF11 | 0 | 0 | ||
| DISC_L3__U2_FF12_3V3_BL_3V3_TX__U2_FF12 | L3__U2_FF12 | 3V3_BL | 3V3_TX__U2_FF12 | 0 | 0 | ||
| DISC_R5_3V3_BL_SENSE_3V3_P | R5 | 3V3_BL | SENSE_3V3_P | 10 | 0 |
| Sink | Component name | Voltage (v) | (+) Net name | (-) Net name | DC current (A) | Current model | P/F Mode |
| SINK_J1__U1_FF1_3V3_P1__U1_FF1_GND | J1__U1_FF1 | 3.3-2% | 3V3_P1__U1_FF1 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF1_3V3_P10__U1_FF1_GND | J1__U1_FF1 | 3.3-2% | 3V3_P10__U1_FF1 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF2_3V3_P1__U1_FF2_GND | J1__U1_FF2 | 3.3-2% | 3V3_P1__U1_FF2 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF2_3V3_P10__U1_FF2_GND | J1__U1_FF2 | 3.3-2% | 3V3_P10__U1_FF2 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF3_3V3_P1__U1_FF3_GND | J1__U1_FF3 | 3.3-2% | 3V3_P1__U1_FF3 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF3_3V3_P10__U1_FF3_GND | J1__U1_FF3 | 3.3-2% | 3V3_P10__U1_FF3 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF4_3V3_P1__U1_FF4_GND | J1__U1_FF4 | 3.3-2% | 3V3_P1__U1_FF4 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF4_3V3_P10__U1_FF4_GND | J1__U1_FF4 | 3.3-2% | 3V3_P10__U1_FF4 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF5_3V3_P1__U1_FF5_GND | J1__U1_FF5 | 3.3-2% | 3V3_P1__U1_FF5 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF5_3V3_P10__U1_FF5_GND | J1__U1_FF5 | 3.3-2% | 3V3_P10__U1_FF5 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF6_3V3_P1__U1_FF6_GND | J1__U1_FF6 | 3.3-2% | 3V3_P1__U1_FF6 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF6_3V3_P10__U1_FF6_GND | J1__U1_FF6 | 3.3-2% | 3V3_P10__U1_FF6 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF7_3V3_P1__U1_FF7_GND | J1__U1_FF7 | 3.3-2% | 3V3_P1__U1_FF7 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF7_3V3_P10__U1_FF7_GND | J1__U1_FF7 | 3.3-2% | 3V3_P10__U1_FF7 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF8_3V3_P1__U1_FF8_GND | J1__U1_FF8 | 3.3-2% | 3V3_P1__U1_FF8 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF8_3V3_P10__U1_FF8_GND | J1__U1_FF8 | 3.3-2% | 3V3_P10__U1_FF8 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF9_3V3_P1__U1_FF9_GND | J1__U1_FF9 | 3.3-2% | 3V3_P1__U1_FF9 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U1_FF10_3V3_P1__U1_FF10_GND | J1__U1_FF10 | 3.3-2% | 3V3_P1__U1_FF10 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF1_3V3_P1__U2_FF1_GND | J1__U2_FF1 | 3.3-2% | 3V3_P1__U2_FF1 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF1_3V3_P10__U2_FF1_GND | J1__U2_FF1 | 3.3-2% | 3V3_P10__U2_FF1 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF2_3V3_P1__U2_FF2_GND | J1__U2_FF2 | 3.3-2% | 3V3_P1__U2_FF2 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF2_3V3_P10__U2_FF2_GND | J1__U2_FF2 | 3.3-2% | 3V3_P10__U2_FF2 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF3_3V3_P1__U2_FF3_GND | J1__U2_FF3 | 3.3-2% | 3V3_P1__U2_FF3 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF3_3V3_P10__U2_FF3_GND | J1__U2_FF3 | 3.3-2% | 3V3_P10__U2_FF3 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF4_3V3_P1__U2_FF4_GND | J1__U2_FF4 | 3.3-2% | 3V3_P1__U2_FF4 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF4_3V3_P10__U2_FF4_GND | J1__U2_FF4 | 3.3-2% | 3V3_P10__U2_FF4 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF5_3V3_P1__U2_FF5_GND | J1__U2_FF5 | 3.3-2% | 3V3_P1__U2_FF5 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF5_3V3_P10__U2_FF5_GND | J1__U2_FF5 | 3.3-2% | 3V3_P10__U2_FF5 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF6_3V3_P1__U2_FF6_GND | J1__U2_FF6 | 3.3-2% | 3V3_P1__U2_FF6 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF6_3V3_P10__U2_FF6_GND | J1__U2_FF6 | 3.3-2% | 3V3_P10__U2_FF6 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF7_3V3_P1__U2_FF7_GND | J1__U2_FF7 | 3.3-2% | 3V3_P1__U2_FF7 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF7_3V3_P10__U2_FF7_GND | J1__U2_FF7 | 3.3-2% | 3V3_P10__U2_FF7 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF8_3V3_P1__U2_FF8_GND | J1__U2_FF8 | 3.3-2% | 3V3_P1__U2_FF8 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF8_3V3_P10__U2_FF8_GND | J1__U2_FF8 | 3.3-2% | 3V3_P10__U2_FF8 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF9_3V3_P1__U2_FF9_GND | J1__U2_FF9 | 3.3-2% | 3V3_P1__U2_FF9 | GND | 1.12 | Equal Current | Worst |
| SINK_J1__U2_FF10_3V3_P1__U2_FF10_GND | J1__U2_FF10 | 3.3-2% | 3V3_P1__U2_FF10 | GND | 1.12 | Equal Current | Worst |
| SINK_J2__U1_FF11_3V3_RX__U1_FF11_GND | J2__U1_FF11 | 3.3-2% | 3V3_RX__U1_FF11 | GND | 1.12 | Equal Current | Worst |
| SINK_J2__U1_FF11_3V3_TX__U1_FF11_GND | J2__U1_FF11 | 3.3-2% | 3V3_TX__U1_FF11 | GND | 1.12 | Equal Current | Worst |
| SINK_J2__U1_FF12_3V3_RX__U1_FF12_GND | J2__U1_FF12 | 3.3-2% | 3V3_RX__U1_FF12 | GND | 1.12 | Equal Current | Worst |
| SINK_J2__U1_FF12_3V3_TX__U1_FF12_GND | J2__U1_FF12 | 3.3-2% | 3V3_TX__U1_FF12 | GND | 1.12 | Equal Current | Worst |
| SINK_J2__U1_FF25_3V3_RX__U1_FF25_GND | J2__U1_FF25 | 3.3-2% | 3V3_RX__U1_FF25 | GND | 1.12 | Equal Current | Worst |
| SINK_J2__U1_FF25_3V3_TX__U1_FF25_GND | J2__U1_FF25 | 3.3-2% | 3V3_TX__U1_FF25 | GND | 1.12 | Equal Current | Worst |
| SINK_J2__U2_FF11_3V3_RX__U2_FF11_GND | J2__U2_FF11 | 3.3-2% | 3V3_RX__U2_FF11 | GND | 1.12 | Equal Current | Worst |
| SINK_J2__U2_FF11_3V3_TX__U2_FF11_GND | J2__U2_FF11 | 3.3-2% | 3V3_TX__U2_FF11 | GND | 1.12 | Equal Current | Worst |
| SINK_J2__U2_FF12_3V3_RX__U2_FF12_GND | J2__U2_FF12 | 3.3-2% | 3V3_RX__U2_FF12 | GND | 1.12 | Equal Current | Worst |
| SINK_J2__U2_FF12_3V3_TX__U2_FF12_GND | J2__U2_FF12 | 3.3-2% | 3V3_TX__U2_FF12 | GND | 1.12 | Equal Current | Worst |
| SINK_J10_SENSE_3V3_P_GND | J10 | 3.3-2% | SENSE_3V3_P | GND | 0 | Equal Current | Worst |
| SINK_J15_3V3_BL_GND | J15 | 3.3-2% | 3V3_BL | GND | 0 | Equal Current | Worst |
| SINK_MEZZ_JX1_3V3_BL_GND | MEZZ_JX1 | 3.3-2% | 3V3_BL | GND | 2 | Equal Current | Worst |
| SINK_U10_3V3_BL_GND | U10 | 3.3-2% | 3V3_BL | GND | 0.024 | Equal Current | Worst |
| SINK_U12_3V3_BL_GND | U12 | 3.3-2% | 3V3_BL | GND | 0.024 | Equal Current | Worst |
| SINK_ULTRAZED_3V3_BL_GND | ULTRAZED | 3.3-2% | 3V3_BL | GND | 1.5 | Equal Current | Worst |
Return to Top
3 Results
3.1 Electrical Result Table
Loop Index1
| VRM | Nominal voltage (v) | Actual current (A) | PowerLoss (W) |
| VRM_J9_3V3_BL_GND | 3.3 | 55.068 | 0 |
| Discrete | Actual current (A) | Margin (A) | IRDrop (V) | PowerLoss (W) |
| DISC_L1__U1_FF1_3V3_BL_3V3_P10__U1_FF1 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U1_FF2_3V3_BL_3V3_P10__U1_FF2 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U1_FF3_3V3_BL_3V3_P10__U1_FF3 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U1_FF4_3V3_BL_3V3_P10__U1_FF4 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U1_FF5_3V3_BL_3V3_P10__U1_FF5 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U1_FF6_3V3_BL_3V3_P10__U1_FF6 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U1_FF7_3V3_BL_3V3_P10__U1_FF7 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U1_FF8_3V3_BL_3V3_P10__U1_FF8 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U1_FF11_3V3_BL_3V3_RX__U1_FF11 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U1_FF12_3V3_BL_3V3_RX__U1_FF12 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U1_FF25_3V3_BL_3V3_RX__U1_FF25 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U2_FF1_3V3_BL_3V3_P10__U2_FF1 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U2_FF2_3V3_BL_3V3_P10__U2_FF2 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U2_FF3_3V3_BL_3V3_P10__U2_FF3 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U2_FF4_3V3_BL_3V3_P10__U2_FF4 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U2_FF5_3V3_BL_3V3_P10__U2_FF5 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U2_FF6_3V3_BL_3V3_P10__U2_FF6 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U2_FF7_3V3_BL_3V3_P10__U2_FF7 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U2_FF8_3V3_BL_3V3_P10__U2_FF8 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U2_FF11_3V3_BL_3V3_RX__U2_FF11 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L1__U2_FF12_3V3_BL_3V3_RX__U2_FF12 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U1_FF1_3V3_BL_3V3_P1__U1_FF1 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U1_FF2_3V3_BL_3V3_P1__U1_FF2 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U1_FF3_3V3_BL_3V3_P1__U1_FF3 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U1_FF4_3V3_BL_3V3_P1__U1_FF4 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U1_FF5_3V3_BL_3V3_P1__U1_FF5 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U1_FF6_3V3_BL_3V3_P1__U1_FF6 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U1_FF7_3V3_BL_3V3_P1__U1_FF7 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U1_FF8_3V3_BL_3V3_P1__U1_FF8 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U1_FF9_3V3_BL_3V3_P1__U1_FF9 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U1_FF10_3V3_BL_3V3_P1__U1_FF10 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U2_FF1_3V3_BL_3V3_P1__U2_FF1 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U2_FF2_3V3_BL_3V3_P1__U2_FF2 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U2_FF3_3V3_BL_3V3_P1__U2_FF3 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U2_FF4_3V3_BL_3V3_P1__U2_FF4 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U2_FF5_3V3_BL_3V3_P1__U2_FF5 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U2_FF6_3V3_BL_3V3_P1__U2_FF6 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U2_FF7_3V3_BL_3V3_P1__U2_FF7 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U2_FF8_3V3_BL_3V3_P1__U2_FF8 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U2_FF9_3V3_BL_3V3_P1__U2_FF9 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L2__U2_FF10_3V3_BL_3V3_P1__U2_FF10 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L3__U1_FF11_3V3_BL_3V3_TX__U1_FF11 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L3__U1_FF12_3V3_BL_3V3_TX__U1_FF12 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L3__U1_FF25_3V3_BL_3V3_TX__U1_FF25 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L3__U2_FF11_3V3_BL_3V3_TX__U2_FF11 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_L3__U2_FF12_3V3_BL_3V3_TX__U2_FF12 | 1.12 | -1.12 | 1.12e-06 | 1.2544e-06 |
| DISC_R5_3V3_BL_SENSE_3V3_P | 1.32483e-10 | 0 | 1.32483e-09 | 1.75517e-19 |
| Sink | Power IR Drop (V) | Power VRM | Ground IR Drop (V) | Ground VRM | Positive Pin Average Voltage (V) | Negative Pin Average Voltage (V) | Actual voltage (v) | Margin (v) | Pass/Fail | PowerLoss (W) |
| SINK_J1__U1_FF1_3V3_P1__U1_FF1_GND | 0.0553473 | VRM_J9_3V3_BL_GND | 0.00812186 | VRM_J9_3V3_BL_GND | 3.23903 | 0.0017555 | 3.23653 | 0.00253081 | Pass | 0 |
| SINK_J1__U1_FF1_3V3_P10__U1_FF1_GND | 0.0537216 | VRM_J9_3V3_BL_GND | 0.00812186 | VRM_J9_3V3_BL_GND | 3.24066 | 0.0017555 | 3.23816 | 0.00415649 | Pass | 0 |
| SINK_J1__U1_FF2_3V3_P1__U1_FF2_GND | 0.0542468 | VRM_J9_3V3_BL_GND | 0.00827011 | VRM_J9_3V3_BL_GND | 3.24014 | 0.00189938 | 3.23748 | 0.00348305 | Pass | 0 |
| SINK_J1__U1_FF2_3V3_P10__U1_FF2_GND | 0.0537258 | VRM_J9_3V3_BL_GND | 0.00827011 | VRM_J9_3V3_BL_GND | 3.24066 | 0.00189938 | 3.238 | 0.00400407 | Pass | 0 |
| SINK_J1__U1_FF3_3V3_P1__U1_FF3_GND | 0.0539274 | VRM_J9_3V3_BL_GND | 0.00844356 | VRM_J9_3V3_BL_GND | 3.24045 | 0.00205982 | 3.23763 | 0.00362899 | Pass | 0 |
| SINK_J1__U1_FF3_3V3_P10__U1_FF3_GND | 0.0534573 | VRM_J9_3V3_BL_GND | 0.00844356 | VRM_J9_3V3_BL_GND | 3.24092 | 0.00205982 | 3.2381 | 0.00409906 | Pass | 0 |
| SINK_J1__U1_FF4_3V3_P1__U1_FF4_GND | 0.0535559 | VRM_J9_3V3_BL_GND | 0.00849146 | VRM_J9_3V3_BL_GND | 3.24083 | 0.00210026 | 3.23795 | 0.00395262 | Pass | 0 |
| SINK_J1__U1_FF4_3V3_P10__U1_FF4_GND | 0.0530558 | VRM_J9_3V3_BL_GND | 0.00849146 | VRM_J9_3V3_BL_GND | 3.24133 | 0.00210026 | 3.23845 | 0.00445266 | Pass | 0 |
| SINK_J1__U1_FF5_3V3_P1__U1_FF5_GND | 0.0483235 | VRM_J9_3V3_BL_GND | 0.00853565 | VRM_J9_3V3_BL_GND | 3.24606 | 0.00210864 | 3.24314 | 0.00914082 | Pass | 0 |
| SINK_J1__U1_FF5_3V3_P10__U1_FF5_GND | 0.047625 | VRM_J9_3V3_BL_GND | 0.00853565 | VRM_J9_3V3_BL_GND | 3.24676 | 0.00210864 | 3.24384 | 0.00983928 | Pass | 0 |
| SINK_J1__U1_FF6_3V3_P1__U1_FF6_GND | 0.0500365 | VRM_J9_3V3_BL_GND | 0.00881475 | VRM_J9_3V3_BL_GND | 3.24435 | 0.00239757 | 3.24115 | 0.00714866 | Pass | 0 |
| SINK_J1__U1_FF6_3V3_P10__U1_FF6_GND | 0.04937 | VRM_J9_3V3_BL_GND | 0.00881475 | VRM_J9_3V3_BL_GND | 3.24501 | 0.00239757 | 3.24182 | 0.00781522 | Pass | 0 |
| SINK_J1__U1_FF7_3V3_P1__U1_FF7_GND | 0.0505682 | VRM_J9_3V3_BL_GND | 0.00890912 | VRM_J9_3V3_BL_GND | 3.24381 | 0.00249988 | 3.24052 | 0.0065226 | Pass | 0 |
| SINK_J1__U1_FF7_3V3_P10__U1_FF7_GND | 0.0499678 | VRM_J9_3V3_BL_GND | 0.00890912 | VRM_J9_3V3_BL_GND | 3.24441 | 0.00249988 | 3.24112 | 0.00712304 | Pass | 0 |
| SINK_J1__U1_FF8_3V3_P1__U1_FF8_GND | 0.0511277 | VRM_J9_3V3_BL_GND | 0.00897718 | VRM_J9_3V3_BL_GND | 3.24325 | 0.00257724 | 3.2399 | 0.00589505 | Pass | 0 |
| SINK_J1__U1_FF8_3V3_P10__U1_FF8_GND | 0.0506504 | VRM_J9_3V3_BL_GND | 0.00897718 | VRM_J9_3V3_BL_GND | 3.24373 | 0.00257724 | 3.24037 | 0.00637237 | Pass | 0 |
| SINK_J1__U1_FF9_3V3_P1__U1_FF9_GND | 0.0541463 | VRM_J9_3V3_BL_GND | 0.00754091 | VRM_J9_3V3_BL_GND | 3.24024 | 0.00176531 | 3.23831 | 0.00431274 | Pass | 0 |
| SINK_J1__U1_FF10_3V3_P1__U1_FF10_GND | 0.0495852 | VRM_J9_3V3_BL_GND | 0.00775803 | VRM_J9_3V3_BL_GND | 3.2448 | 0.00194367 | 3.24266 | 0.00865672 | Pass | 0 |
| SINK_J1__U2_FF1_3V3_P1__U2_FF1_GND | 0.040411 | VRM_J9_3V3_BL_GND | 0.00579534 | VRM_J9_3V3_BL_GND | 3.25397 | -0.000554773 | 3.25379 | 0.0197936 | Pass | 0 |
| SINK_J1__U2_FF1_3V3_P10__U2_FF1_GND | 0.040609 | VRM_J9_3V3_BL_GND | 0.00579534 | VRM_J9_3V3_BL_GND | 3.25377 | -0.000554773 | 3.2536 | 0.0195956 | Pass | 0 |
| SINK_J1__U2_FF2_3V3_P1__U2_FF2_GND | 0.0424724 | VRM_J9_3V3_BL_GND | 0.00614055 | VRM_J9_3V3_BL_GND | 3.25191 | -0.000215298 | 3.25139 | 0.017387 | Pass | 0 |
| SINK_J1__U2_FF2_3V3_P10__U2_FF2_GND | 0.0425426 | VRM_J9_3V3_BL_GND | 0.00614055 | VRM_J9_3V3_BL_GND | 3.25184 | -0.000215298 | 3.25132 | 0.0173167 | Pass | 0 |
| SINK_J1__U2_FF3_3V3_P1__U2_FF3_GND | 0.0453118 | VRM_J9_3V3_BL_GND | 0.00667272 | VRM_J9_3V3_BL_GND | 3.24907 | 0.000304418 | 3.24802 | 0.0140154 | Pass | 0 |
| SINK_J1__U2_FF3_3V3_P10__U2_FF3_GND | 0.0451264 | VRM_J9_3V3_BL_GND | 0.00667272 | VRM_J9_3V3_BL_GND | 3.24926 | 0.000304418 | 3.2482 | 0.0142009 | Pass | 0 |
| SINK_J1__U2_FF4_3V3_P1__U2_FF4_GND | 0.0469812 | VRM_J9_3V3_BL_GND | 0.00703503 | VRM_J9_3V3_BL_GND | 3.2474 | 0.000656573 | 3.24598 | 0.0119837 | Pass | 0 |
| SINK_J1__U2_FF4_3V3_P10__U2_FF4_GND | 0.0466966 | VRM_J9_3V3_BL_GND | 0.00703503 | VRM_J9_3V3_BL_GND | 3.24769 | 0.000656573 | 3.24627 | 0.0122683 | Pass | 0 |
| SINK_J1__U2_FF5_3V3_P1__U2_FF5_GND | 0.0335687 | VRM_J9_3V3_BL_GND | 0.00646258 | VRM_J9_3V3_BL_GND | 3.26081 | 9.2247e-06 | 3.25997 | 0.0259686 | Pass | 0 |
| SINK_J1__U2_FF5_3V3_P10__U2_FF5_GND | 0.0325566 | VRM_J9_3V3_BL_GND | 0.00646258 | VRM_J9_3V3_BL_GND | 3.26183 | 9.2247e-06 | 3.26098 | 0.0269807 | Pass | 0 |
| SINK_J1__U2_FF6_3V3_P1__U2_FF6_GND | 0.0375115 | VRM_J9_3V3_BL_GND | 0.00698074 | VRM_J9_3V3_BL_GND | 3.25687 | 0.000538585 | 3.25551 | 0.0215077 | Pass | 0 |
| SINK_J1__U2_FF6_3V3_P10__U2_FF6_GND | 0.0365886 | VRM_J9_3V3_BL_GND | 0.00698074 | VRM_J9_3V3_BL_GND | 3.25779 | 0.000538585 | 3.25643 | 0.0224306 | Pass | 0 |
| SINK_J1__U2_FF7_3V3_P1__U2_FF7_GND | 0.0386934 | VRM_J9_3V3_BL_GND | 0.0072054 | VRM_J9_3V3_BL_GND | 3.25569 | 0.000772103 | 3.2541 | 0.0201011 | Pass | 0 |
| SINK_J1__U2_FF7_3V3_P10__U2_FF7_GND | 0.037929 | VRM_J9_3V3_BL_GND | 0.0072054 | VRM_J9_3V3_BL_GND | 3.25645 | 0.000772103 | 3.25487 | 0.0208656 | Pass | 0 |
| SINK_J1__U2_FF8_3V3_P1__U2_FF8_GND | 0.0397537 | VRM_J9_3V3_BL_GND | 0.0075138 | VRM_J9_3V3_BL_GND | 3.25463 | 0.0010946 | 3.25273 | 0.0187324 | Pass | 0 |
| SINK_J1__U2_FF8_3V3_P10__U2_FF8_GND | 0.0392275 | VRM_J9_3V3_BL_GND | 0.0075138 | VRM_J9_3V3_BL_GND | 3.25515 | 0.0010946 | 3.25326 | 0.0192587 | Pass | 0 |
| SINK_J1__U2_FF9_3V3_P1__U2_FF9_GND | 0.0467023 | VRM_J9_3V3_BL_GND | 0.00593895 | VRM_J9_3V3_BL_GND | 3.24768 | 0.000175313 | 3.24736 | 0.0133587 | Pass | 0 |
| SINK_J1__U2_FF10_3V3_P1__U2_FF10_GND | 0.0359317 | VRM_J9_3V3_BL_GND | 0.00580564 | VRM_J9_3V3_BL_GND | 3.25845 | -4.06229e-05 | 3.25826 | 0.0242626 | Pass | 0 |
| SINK_J2__U1_FF11_3V3_RX__U1_FF11_GND | 0.0546872 | VRM_J9_3V3_BL_GND | 0.00773443 | VRM_J9_3V3_BL_GND | 3.23969 | 0.001788 | 3.23758 | 0.0035783 | Pass | 0 |
| SINK_J2__U1_FF11_3V3_TX__U1_FF11_GND | 0.0544602 | VRM_J9_3V3_BL_GND | 0.00773443 | VRM_J9_3V3_BL_GND | 3.23992 | 0.001788 | 3.23781 | 0.00380528 | Pass | 0 |
| SINK_J2__U1_FF12_3V3_RX__U1_FF12_GND | 0.0509524 | VRM_J9_3V3_BL_GND | 0.00833092 | VRM_J9_3V3_BL_GND | 3.24343 | 0.00234975 | 3.24072 | 0.00671667 | Pass | 0 |
| SINK_J2__U1_FF12_3V3_TX__U1_FF12_GND | 0.051342 | VRM_J9_3V3_BL_GND | 0.00833092 | VRM_J9_3V3_BL_GND | 3.24304 | 0.00234975 | 3.24033 | 0.00632698 | Pass | 0 |
| SINK_J2__U1_FF25_3V3_RX__U1_FF25_GND | 0.0313573 | VRM_J9_3V3_BL_GND | 0.00551956 | VRM_J9_3V3_BL_GND | 3.26302 | -0.000535245 | 3.26312 | 0.029123 | Pass | 0 |
| SINK_J2__U1_FF25_3V3_TX__U1_FF25_GND | 0.0320437 | VRM_J9_3V3_BL_GND | 0.00551956 | VRM_J9_3V3_BL_GND | 3.26234 | -0.000535245 | 3.26244 | 0.0284367 | Pass | 0 |
| SINK_J2__U2_FF11_3V3_RX__U2_FF11_GND | 0.0454206 | VRM_J9_3V3_BL_GND | 0.00579622 | VRM_J9_3V3_BL_GND | 3.24896 | -0.000139684 | 3.24878 | 0.0147831 | Pass | 0 |
| SINK_J2__U2_FF11_3V3_TX__U2_FF11_GND | 0.0442993 | VRM_J9_3V3_BL_GND | 0.00579622 | VRM_J9_3V3_BL_GND | 3.25008 | -0.000139684 | 3.2499 | 0.0159044 | Pass | 0 |
| SINK_J2__U2_FF12_3V3_RX__U2_FF12_GND | 0.0392939 | VRM_J9_3V3_BL_GND | 0.00675388 | VRM_J9_3V3_BL_GND | 3.25509 | 0.000750722 | 3.25395 | 0.0199522 | Pass | 0 |
| SINK_J2__U2_FF12_3V3_TX__U2_FF12_GND | 0.0397958 | VRM_J9_3V3_BL_GND | 0.00675388 | VRM_J9_3V3_BL_GND | 3.25459 | 0.000750722 | 3.25345 | 0.0194502 | Pass | 0 |
| SINK_J10_SENSE_3V3_P_GND | 3.24972 | -0.00151309 | 3.25109 | 0.0170902 | Pass | 0 | ||||
| SINK_J15_3V3_BL_GND | 0.0442522 | VRM_J9_3V3_BL_GND | 0.00718723 | VRM_J9_3V3_BL_GND | 3.25013 | 0.00156911 | 3.24856 | 0.0145605 | Pass | 0 |
| SINK_MEZZ_JX1_3V3_BL_GND | 0.0374826 | VRM_J9_3V3_BL_GND | 0.00618562 | VRM_J9_3V3_BL_GND | 3.25691 | 0.000520717 | 3.25633 | 0.0223317 | Pass | 0 |
| SINK_U10_3V3_BL_GND | 0.0460037 | VRM_J9_3V3_BL_GND | 0.00729873 | VRM_J9_3V3_BL_GND | 3.24838 | 0.00166863 | 3.2467 | 0.0126975 | Pass | 0 |
| SINK_U12_3V3_BL_GND | 0.0325512 | VRM_J9_3V3_BL_GND | 0.00523592 | VRM_J9_3V3_BL_GND | 3.26183 | -0.000426018 | 3.26221 | 0.0282129 | Pass | 0 |
| SINK_ULTRAZED_3V3_BL_GND | 0.0315951 | VRM_J9_3V3_BL_GND | 0.00518174 | VRM_J9_3V3_BL_GND | 3.2633 | -0.000830715 | 3.26322 | 0.0292231 | Pass | 0 |
| PowerLoss | System Power Loss | System Power Loss | Watts |
| Layout | 2.84842 | ||
| Structure | Structure | Watts | |
| Via | 1.00918 | ||
| Trace | 0.000998644 | ||
| Plane | 1.83825 | ||
| WireBond | 0 | ||
| Lead | 0 | ||
| Layer | Layer | Watts | |
| Plane$PASTEMASK_TOP | 0 | ||
| Signal$TOP | 1.00432 | ||
| Plane$GND1 | 0.0956755 | ||
| Signal$SIG1 | 0 | ||
| Plane$GND2 | 0.0521799 | ||
| Signal$SIG2 | 0 | ||
| Signal$GND3 | 0.0402892 | ||
| Signal$SIG3 | 0 | ||
| Plane$GND4 | 0.0410751 | ||
| Signal$PWR1 | 0 | ||
| Signal$PWR2 | 1.39397 | ||
| Signal$PWR3 | 0 | ||
| Signal$PWR4 | 0 | ||
| Plane$GND5 | 0.0249982 | ||
| Signal$SIG4 | 0 | ||
| Plane$GND6 | 0.0233665 | ||
| Signal$SIG5 | 0 | ||
| Signal$GND7 | 0.0223976 | ||
| Signal$SIG6 | 0.000996587 | ||
| Plane$GND8 | 0.0320339 | ||
| Signal$BOTTOM | 0.117117 | ||
| Plane$PASTEMASK_BOTTOM | 0 | ||
| Signal$BOTTOM_Component | 5.77024e-05 | ||
| Net | Layer | Watts | |
| 3V3_P10__U2_FF2 | 0.00307567 | ||
| 3V3_P10__U2_FF3 | 0.00307586 | ||
| 3V3_P10__U2_FF4 | 0.00308365 | ||
| 3V3_P10__U2_FF5 | 0.00312158 | ||
| 3V3_P10__U2_FF6 | 0.00308652 | ||
| 3V3_P10__U2_FF7 | 0.00307528 | ||
| 3V3_P10__U2_FF8 | 0.00308723 | ||
| 3V3_RX__U1_FF12 | 0.00387894 | ||
| 3V3_RX__U1_FF25 | 0.00391012 | ||
| 3V3_RX__U2_FF11 | 0.0039018 | ||
| 3V3_RX__U2_FF12 | 0.00391012 | ||
| 3V3_TX__U1_FF11 | 0.00409942 | ||
| 3V3_TX__U1_FF12 | 0.00410541 | ||
| 3V3_TX__U1_FF25 | 0.00410579 | ||
| 3V3_TX__U2_FF11 | 0.00409942 | ||
| 3V3_TX__U2_FF12 | 0.00410529 | ||
| 3V3_BL | 2.317 | ||
| 3V3_P1__U1_FF1 | 0.00487159 | ||
| 3V3_P1__U1_FF10 | 0.00386179 | ||
| 3V3_P1__U1_FF2 | 0.00360136 | ||
| SENSE_3V3_P | 0 | ||
| 3V3_P1__U1_FF4 | 0.00360027 | ||
| 3V3_P1__U1_FF5 | 0.00360801 | ||
| 3V3_P1__U1_FF6 | 0.00360557 | ||
| 3V3_P1__U1_FF7 | 0.00360801 | ||
| 3V3_P1__U1_FF8 | 0.00360778 | ||
| 3V3_P1__U1_FF9 | 0.00386306 | ||
| 3V3_P1__U2_FF1 | 0.00360068 | ||
| 3V3_P1__U2_FF10 | 0.00386189 | ||
| 3V3_P1__U2_FF2 | 0.00360136 | ||
| 3V3_P1__U2_FF3 | 0.00360043 | ||
| 3V3_P1__U2_FF5 | 0.00360875 | ||
| 3V3_P1__U2_FF6 | 0.00360613 | ||
| 3V3_P1__U2_FF7 | 0.00360801 | ||
| 3V3_P1__U2_FF8 | 0.00360706 | ||
| 3V3_P1__U2_FF9 | 0.00386449 | ||
| 3V3_P10__U1_FF1 | 0.00307554 | ||
| 3V3_P10__U1_FF2 | 0.00307604 | ||
| 3V3_P10__U1_FF3 | 0.00307576 | ||
| 3V3_P10__U1_FF4 | 0.0030863 | ||
| 3V3_P10__U1_FF5 | 0.00307693 | ||
| 3V3_P10__U1_FF7 | 0.00308628 | ||
| 3V3_P10__U1_FF8 | 0.00308673 | ||
| 3V3_P10__U2_FF1 | 0.00307548 | ||
| 3V3_RX__U1_FF11 | 0.0039018 | ||
| GND | 0.367756 | ||
| 3V3_P1__U1_FF3 | 0.00354531 | ||
| 3V3_P1__U2_FF4 | 0.00360027 | ||
| 3V3_P10__U1_FF6 | 0.00307633 | ||
| 3V3_BL_3V3_P10__U1_FF1_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U1_FF2_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U1_FF3_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U1_FF4_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U1_FF5_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U1_FF6_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U1_FF7_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U1_FF8_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_RX__U1_FF11_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_RX__U1_FF12_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_RX__U1_FF25_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U2_FF1_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U2_FF2_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U2_FF3_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U2_FF4_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U2_FF5_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U2_FF6_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U2_FF7_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P10__U2_FF8_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_RX__U2_FF11_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_RX__U2_FF12_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U1_FF1_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U1_FF2_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U1_FF3_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U1_FF4_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U1_FF5_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U1_FF6_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U1_FF7_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U1_FF8_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U1_FF9_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U1_FF10_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U2_FF1_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U2_FF2_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U2_FF3_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U2_FF4_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U2_FF5_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U2_FF6_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U2_FF7_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U2_FF8_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U2_FF9_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_P1__U2_FF10_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_TX__U1_FF11_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_TX__U1_FF12_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_TX__U1_FF25_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_TX__U2_FF11_Component | 1.2544e-06 | ||
| 3V3_BL_3V3_TX__U2_FF12_Component | 1.2544e-06 | ||
| 3V3_BL_SENSE_3V3_P_Component | 1.75517e-19 |
Calculate Sink Voltage Margin:
If Actual voltage is less than Nominal voltage, then
Margin=(Actual voltage+SinkLowerTolerance)-(Nominal voltage)
If it is less than 0, it FAILS.
Return to Top
3.2 DC Analysis Block Diagram Result
Zoom In for Print
Return to Top
4 Distribution Plots
4.1 Voltage Distribution Plot
4.1.1 Full Voltage Plot
4.1.1.1 Layer : Signal$TOP
4.1.1.2 Layer : Plane$GND1
4.1.1.3 Layer : Signal$SIG1
4.1.1.4 Layer : Plane$GND2
4.1.1.5 Layer : Signal$GND3
4.1.1.6 Layer : Plane$GND4
4.1.1.7 Layer : Signal$PWR2
4.1.1.8 Layer : Plane$GND5
4.1.1.9 Layer : Signal$SIG4
4.1.1.10 Layer : Plane$GND6
4.1.1.11 Layer : Signal$GND7
4.1.1.12 Layer : Signal$SIG6
4.1.1.13 Layer : Plane$GND8
4.1.1.14 Layer : Signal$BOTTOM
Return to Top
4.2 Current Density Plot
4.2.1 Full Current Plot
4.2.1.1 Layer : Signal$TOP
4.2.1.2 Layer : Plane$GND1
4.2.1.3 Layer : Signal$SIG1
4.2.1.4 Layer : Plane$GND2
4.2.1.5 Layer : Signal$SIG2
4.2.1.6 Layer : Signal$GND3
4.2.1.7 Layer : Signal$SIG3
4.2.1.8 Layer : Plane$GND4
4.2.1.9 Layer : Signal$PWR1
4.2.1.10 Layer : Signal$PWR2
4.2.1.11 Layer : Signal$PWR3
4.2.1.12 Layer : Signal$PWR4
4.2.1.13 Layer : Plane$GND5
4.2.1.14 Layer : Signal$SIG4
4.2.1.15 Layer : Plane$GND6
4.2.1.16 Layer : Signal$SIG5
4.2.1.17 Layer : Signal$GND7
4.2.1.18 Layer : Signal$SIG6
4.2.1.19 Layer : Plane$GND8
4.2.1.20 Layer : Signal$BOTTOM
Return to Top
4.3 Power Loss Plot
4.3.1 Full Power Loss Plot
4.3.1.1 Layer : Signal$TOP
4.3.1.2 Layer : Plane$GND1
4.3.1.3 Layer : Signal$SIG1
4.3.1.4 Layer : Plane$GND2
4.3.1.5 Layer : Signal$SIG2
4.3.1.6 Layer : Signal$GND3
4.3.1.7 Layer : Signal$SIG3
4.3.1.8 Layer : Plane$GND4
4.3.1.9 Layer : Signal$PWR1
4.3.1.10 Layer : Signal$PWR2
4.3.1.11 Layer : Signal$PWR3
4.3.1.12 Layer : Signal$PWR4
4.3.1.13 Layer : Plane$GND5
4.3.1.14 Layer : Signal$SIG4
4.3.1.15 Layer : Plane$GND6
4.3.1.16 Layer : Signal$SIG5
4.3.1.17 Layer : Signal$GND7
4.3.1.18 Layer : Signal$SIG6
4.3.1.19 Layer : Plane$GND8
4.3.1.20 Layer : Signal$BOTTOM
Return to Top
4.4 Power Density Plot
4.4.1 Full Power Density Plot
4.4.1.1 Layer : Signal$TOP
4.4.1.2 Layer : Plane$GND1
4.4.1.3 Layer : Plane$GND2
4.4.1.4 Layer : Signal$GND3
4.4.1.5 Layer : Plane$GND4
4.4.1.6 Layer : Signal$PWR2
4.4.1.7 Layer : Plane$GND5
4.4.1.8 Layer : Signal$SIG4
4.4.1.9 Layer : Plane$GND6
4.4.1.10 Layer : Signal$GND7
4.4.1.11 Layer : Signal$SIG6
4.4.1.12 Layer : Plane$GND8
4.4.1.13 Layer : Signal$BOTTOM
Return to Top
4.5 Current Plot
4.5.1 Full Current Plot
4.5.1.1 Layer : Signal$TOP
4.5.1.2 Layer : Plane$GND1
4.5.1.3 Layer : Signal$SIG1
4.5.1.4 Layer : Plane$GND2
4.5.1.5 Layer : Signal$SIG2
4.5.1.6 Layer : Signal$GND3
4.5.1.7 Layer : Signal$SIG3
4.5.1.8 Layer : Plane$GND4
4.5.1.9 Layer : Signal$PWR1
4.5.1.10 Layer : Signal$PWR2
4.5.1.11 Layer : Signal$PWR3
4.5.1.12 Layer : Signal$PWR4
4.5.1.13 Layer : Plane$GND5
4.5.1.14 Layer : Signal$SIG4
4.5.1.15 Layer : Plane$GND6
4.5.1.16 Layer : Signal$SIG5
4.5.1.17 Layer : Signal$GND7
4.5.1.18 Layer : Signal$SIG6
4.5.1.19 Layer : Plane$GND8
4.5.1.20 Layer : Signal$BOTTOM
Return to Top
4.6 IRdrop Plot
4.6.1 Full IRdrop Plot
4.6.1.1 Layer : Signal$TOP
4.6.1.2 Layer : Plane$GND1
4.6.1.3 Layer : Signal$SIG1
4.6.1.4 Layer : Plane$GND2
4.6.1.5 Layer : Signal$GND3
4.6.1.6 Layer : Plane$GND4
4.6.1.7 Layer : Signal$PWR2
4.6.1.8 Layer : Plane$GND5
4.6.1.9 Layer : Signal$SIG4
4.6.1.10 Layer : Plane$GND6
4.6.1.11 Layer : Signal$GND7
4.6.1.12 Layer : Signal$SIG6
4.6.1.13 Layer : Plane$GND8
4.6.1.14 Layer : Signal$BOTTOM
Return to Top
5 Violation
5.1 Via
| Via Name | Net | Location(mm,mm) | Start Layer | Upper Node | End Layer | Lower Node | Constrain Value(A/mm2) | Actual Current Density(A/mm2) | Ratio |
| Via3561::3V3_BL | 3V3_BL | (167,58.49) | Signal$TOP | Node111343!!P01_4::3V3_BL | Signal$PWR2 | Node111345::3V3_BL | 62.0001 | 860.426 | 13.8778 |
| Via3565::3V3_BL | 3V3_BL | (167,55.95) | Signal$TOP | Node111349!!P01_8::3V3_BL | Signal$PWR2 | Node111351::3V3_BL | 62.0001 | 851.842 | 13.7394 |
| Via3550::3V3_BL | 3V3_BL | (174.62,58.49) | Signal$TOP | Node111328!!P01_1::3V3_BL | Signal$PWR2 | Node111330::3V3_BL | 62.0001 | 834.417 | 13.4583 |
| Via3559::3V3_BL | 3V3_BL | (169.54,58.49) | Signal$TOP | Node111340!!P01_3::3V3_BL | Signal$PWR2 | Node111342::3V3_BL | 62.0001 | 830.975 | 13.4028 |
| Via3555::3V3_BL | 3V3_BL | (172.08,58.49) | Signal$TOP | Node111334!!P01_2::3V3_BL | Signal$PWR2 | Node111336::3V3_BL | 62.0001 | 821.894 | 13.2563 |
| Via3553::3V3_BL | 3V3_BL | (174.62,55.95) | Signal$TOP | Node111331!!P01_5::3V3_BL | Signal$PWR2 | Node111333::3V3_BL | 62.0001 | 821.827 | 13.2552 |
| Via3563::3V3_BL | 3V3_BL | (169.54,55.95) | Signal$TOP | Node111346!!P01_7::3V3_BL | Signal$PWR2 | Node111348::3V3_BL | 62.0001 | 819.15 | 13.2121 |
| Via3557::3V3_BL | 3V3_BL | (172.08,55.95) | Signal$TOP | Node111337!!P01_6::3V3_BL | Signal$PWR2 | Node111339::3V3_BL | 62.0001 | 809.198 | 13.0516 |
| Via44125::GND | GND | (167,52.14) | Signal$TOP | Node151511!!P02_4::GND | Plane$GND1 | Node151513::GND | 62.0001 | 334.282 | 5.39164 |
| Via43828::GND | GND | (174.62,52.14) | Signal$TOP | Node151181!!P02_1::GND | Plane$GND1 | Node151183::GND | 62.0001 | 309.195 | 4.987 |
| Via44143::GND | GND | (167,49.6) | Signal$TOP | Node151531!!P02_8::GND | Plane$GND1 | Node151533::GND | 62.0001 | 300.336 | 4.84412 |
| Via43837::GND | GND | (174.62,49.6) | Signal$TOP | Node151191!!P02_5::GND | Plane$GND1 | Node151193::GND | 62.0001 | 271.704 | 4.38231 |
| Via44116::GND | GND | (169.54,52.14) | Signal$TOP | Node151501!!P02_3::GND | Plane$GND1 | Node151503::GND | 62.0001 | 251.655 | 4.05895 |
| Via44008::GND | GND | (172.08,52.14) | Signal$TOP | Node151381!!P02_2::GND | Plane$GND1 | Node151383::GND | 62.0001 | 245.148 | 3.954 |
| Via43891::GND | GND | (174.62,11.5) | Signal$TOP | Node151251!!P08_5::GND | Plane$GND1 | Node151253::GND | 62.0001 | 231.906 | 3.74041 |
| Via44161::GND | GND | (167,39.44) | Signal$TOP | Node151551!!P04_4::GND | Plane$GND1 | Node151553::GND | 62.0001 | 231.003 | 3.72585 |
| Via44134::GND | GND | (169.54,49.6) | Signal$TOP | Node151521!!P02_7::GND | Plane$GND1 | Node151523::GND | 62.0001 | 226.893 | 3.65956 |
| Via44017::GND | GND | (172.08,49.6) | Signal$TOP | Node151391!!P02_6::GND | Plane$GND1 | Node151393::GND | 62.0001 | 219.586 | 3.54171 |
| Via44179::GND | GND | (167,36.9) | Signal$TOP | Node151571!!P04_8::GND | Plane$GND1 | Node151573::GND | 62.0001 | 216.676 | 3.49476 |
| Via44251::GND | GND | (167,11.5) | Signal$TOP | Node151651!!P08_8::GND | Plane$GND1 | Node151653::GND | 62.0001 | 215.882 | 3.48196 |
| Via43846::GND | GND | (174.62,39.44) | Signal$TOP | Node151201!!P04_1::GND | Plane$GND1 | Node151203::GND | 62.0001 | 213.504 | 3.4436 |
| Via43882::GND | GND | (174.62,14.04) | Signal$TOP | Node151241!!P08_1::GND | Plane$GND1 | Node151243::GND | 62.0001 | 212.285 | 3.42394 |
| Via44233::GND | GND | (167,14.04) | Signal$TOP | Node151631!!P08_4::GND | Plane$GND1 | Node151633::GND | 62.0001 | 208.327 | 3.36011 |
| Via43855::GND | GND | (174.62,36.9) | Signal$TOP | Node151211!!P04_5::GND | Plane$GND1 | Node151213::GND | 62.0001 | 206.68 | 3.33354 |
| Via44215::GND | GND | (167,24.2) | Signal$TOP | Node151611!!P06_8::GND | Plane$GND1 | Node151613::GND | 62.0001 | 198.155 | 3.19604 |
| Via44197::GND | GND | (167,26.74) | Signal$TOP | Node151591!!P06_4::GND | Plane$GND1 | Node151593::GND | 62.0001 | 194.981 | 3.14486 |
| Via43873::GND | GND | (174.62,24.2) | Signal$TOP | Node151231!!P06_5::GND | Plane$GND1 | Node151233::GND | 62.0001 | 190.421 | 3.0713 |
| Via43864::GND | GND | (174.62,26.74) | Signal$TOP | Node151221!!P06_1::GND | Plane$GND1 | Node151223::GND | 62.0001 | 189.725 | 3.06008 |
| Via44071::GND | GND | (172.08,11.5) | Signal$TOP | Node151451!!P08_6::GND | Plane$GND1 | Node151453::GND | 62.0001 | 183.617 | 2.96156 |
| Via44242::GND | GND | (169.54,11.5) | Signal$TOP | Node151641!!P08_7::GND | Plane$GND1 | Node151643::GND | 62.0001 | 180.089 | 2.90466 |
| Via44152::GND | GND | (169.54,39.44) | Signal$TOP | Node151541!!P04_3::GND | Plane$GND1 | Node151543::GND | 62.0001 | 174.716 | 2.818 |
| Via44026::GND | GND | (172.08,39.44) | Signal$TOP | Node151401!!P04_2::GND | Plane$GND1 | Node151403::GND | 62.0001 | 170.031 | 2.74243 |
| Via44126::GND | GND | (167,52.14) | Plane$GND1 | Node151513::GND | Plane$GND2 | Node151514::GND | 62.0001 | 169.823 | 2.73907 |
| Via44170::GND | GND | (169.54,36.9) | Signal$TOP | Node151561!!P04_7::GND | Plane$GND1 | Node151563::GND | 62.0001 | 168.306 | 2.71461 |
| Via43829::GND | GND | (174.62,52.14) | Plane$GND1 | Node151183::GND | Plane$GND2 | Node151184::GND | 62.0001 | 167.717 | 2.70511 |
| Via44062::GND | GND | (172.08,14.04) | Signal$TOP | Node151441!!P08_2::GND | Plane$GND1 | Node151443::GND | 62.0001 | 166.371 | 2.68339 |
| Via44224::GND | GND | (169.54,14.04) | Signal$TOP | Node151621!!P08_3::GND | Plane$GND1 | Node151623::GND | 62.0001 | 165.469 | 2.66885 |
| Via44035::GND | GND | (172.08,36.9) | Signal$TOP | Node151411!!P04_6::GND | Plane$GND1 | Node151413::GND | 62.0001 | 165.465 | 2.66878 |
| Via44144::GND | GND | (167,49.6) | Plane$GND1 | Node151533::GND | Plane$GND2 | Node151534::GND | 62.0001 | 164.76 | 2.65742 |
| Via44117::GND | GND | (169.54,52.14) | Plane$GND1 | Node151503::GND | Plane$GND2 | Node151504::GND | 62.0001 | 164.658 | 2.65577 |
| Via44009::GND | GND | (172.08,52.14) | Plane$GND1 | Node151383::GND | Plane$GND2 | Node151384::GND | 62.0001 | 163.446 | 2.63621 |
| Via43838::GND | GND | (174.62,49.6) | Plane$GND1 | Node151193::GND | Plane$GND2 | Node151194::GND | 62.0001 | 162.45 | 2.62016 |
| Via44135::GND | GND | (169.54,49.6) | Plane$GND1 | Node151523::GND | Plane$GND2 | Node151524::GND | 62.0001 | 160.129 | 2.58272 |
| Via44018::GND | GND | (172.08,49.6) | Plane$GND1 | Node151393::GND | Plane$GND2 | Node151394::GND | 62.0001 | 158.881 | 2.56259 |
| Via44206::GND | GND | (169.54,24.2) | Signal$TOP | Node151601!!P06_7::GND | Plane$GND1 | Node151603::GND | 62.0001 | 153.196 | 2.47089 |
| Via44188::GND | GND | (169.54,26.74) | Signal$TOP | Node151581!!P06_3::GND | Plane$GND1 | Node151583::GND | 62.0001 | 152.333 | 2.45698 |
| Via44053::GND | GND | (172.08,24.2) | Signal$TOP | Node151431!!P06_6::GND | Plane$GND1 | Node151433::GND | 62.0001 | 151.077 | 2.43671 |
| Via44044::GND | GND | (172.08,26.74) | Signal$TOP | Node151421!!P06_2::GND | Plane$GND1 | Node151423::GND | 62.0001 | 150.716 | 2.43091 |
| Via44162::GND | GND | (167,39.44) | Plane$GND1 | Node151553::GND | Plane$GND2 | Node151554::GND | 62.0001 | 134.388 | 2.16755 |
| Via44180::GND | GND | (167,36.9) | Plane$GND1 | Node151573::GND | Plane$GND2 | Node151574::GND | 62.0001 | 133.093 | 2.14666 |
| Via43847::GND | GND | (174.62,39.44) | Plane$GND1 | Node151203::GND | Plane$GND2 | Node151204::GND | 62.0001 | 132.869 | 2.14304 |
| Via43856::GND | GND | (174.62,36.9) | Plane$GND1 | Node151213::GND | Plane$GND2 | Node151214::GND | 62.0001 | 130.534 | 2.10539 |
| Via44153::GND | GND | (169.54,39.44) | Plane$GND1 | Node151543::GND | Plane$GND2 | Node151544::GND | 62.0001 | 128.962 | 2.08003 |
| Via44027::GND | GND | (172.08,39.44) | Plane$GND1 | Node151403::GND | Plane$GND2 | Node151404::GND | 62.0001 | 128.141 | 2.06679 |
| Via44171::GND | GND | (169.54,36.9) | Plane$GND1 | Node151563::GND | Plane$GND2 | Node151564::GND | 62.0001 | 127.373 | 2.0544 |
| Via44036::GND | GND | (172.08,36.9) | Plane$GND1 | Node151413::GND | Plane$GND2 | Node151414::GND | 62.0001 | 126.366 | 2.03816 |
| Via44252::GND | GND | (167,11.5) | Plane$GND1 | Node151653::GND | Plane$GND2 | Node151654::GND | 62.0001 | 125.5 | 2.02419 |
| Via43892::GND | GND | (174.62,11.5) | Plane$GND1 | Node151253::GND | Plane$GND2 | Node151254::GND | 62.0001 | 124.383 | 2.00618 |
| Via44234::GND | GND | (167,14.04) | Plane$GND1 | Node151633::GND | Plane$GND2 | Node151634::GND | 62.0001 | 123.425 | 1.99072 |
| Via43883::GND | GND | (174.62,14.04) | Plane$GND1 | Node151243::GND | Plane$GND2 | Node151244::GND | 62.0001 | 123.275 | 1.98829 |
| Via44243::GND | GND | (169.54,11.5) | Plane$GND1 | Node151643::GND | Plane$GND2 | Node151644::GND | 62.0001 | 122.075 | 1.96895 |
| Via44072::GND | GND | (172.08,11.5) | Plane$GND1 | Node151453::GND | Plane$GND2 | Node151454::GND | 62.0001 | 121.912 | 1.96631 |
| Via44198::GND | GND | (167,26.74) | Plane$GND1 | Node151593::GND | Plane$GND2 | Node151594::GND | 62.0001 | 121.66 | 1.96225 |
| Via44216::GND | GND | (167,24.2) | Plane$GND1 | Node151613::GND | Plane$GND2 | Node151614::GND | 62.0001 | 120.309 | 1.94046 |
| Via44063::GND | GND | (172.08,14.04) | Plane$GND1 | Node151443::GND | Plane$GND2 | Node151444::GND | 62.0001 | 120.101 | 1.93711 |
| Via44225::GND | GND | (169.54,14.04) | Plane$GND1 | Node151623::GND | Plane$GND2 | Node151624::GND | 62.0001 | 120.092 | 1.93697 |
| Via43865::GND | GND | (174.62,26.74) | Plane$GND1 | Node151223::GND | Plane$GND2 | Node151224::GND | 62.0001 | 119.001 | 1.91936 |
| Via43874::GND | GND | (174.62,24.2) | Plane$GND1 | Node151233::GND | Plane$GND2 | Node151234::GND | 62.0001 | 118.412 | 1.90986 |
| Via44189::GND | GND | (169.54,26.74) | Plane$GND1 | Node151583::GND | Plane$GND2 | Node151584::GND | 62.0001 | 115.993 | 1.87085 |
| Via44207::GND | GND | (169.54,24.2) | Plane$GND1 | Node151603::GND | Plane$GND2 | Node151604::GND | 62.0001 | 115.406 | 1.86138 |
| Via44045::GND | GND | (172.08,26.74) | Plane$GND1 | Node151423::GND | Plane$GND2 | Node151424::GND | 62.0001 | 115.076 | 1.85606 |
| Via44010::GND | GND | (172.08,52.14) | Plane$GND2 | Node151384::GND | Signal$GND3 | Node151385::GND | 62.0001 | 114.837 | 1.8522 |
| Via44019::GND | GND | (172.08,49.6) | Plane$GND2 | Node151394::GND | Signal$GND3 | Node151395::GND | 62.0001 | 114.781 | 1.8513 |
| Via44054::GND | GND | (172.08,24.2) | Plane$GND1 | Node151433::GND | Plane$GND2 | Node151434::GND | 62.0001 | 114.651 | 1.8492 |
| Via44118::GND | GND | (169.54,52.14) | Plane$GND2 | Node151504::GND | Signal$GND3 | Node151505::GND | 62.0001 | 114.574 | 1.84796 |
| Via44136::GND | GND | (169.54,49.6) | Plane$GND2 | Node151524::GND | Signal$GND3 | Node151525::GND | 62.0001 | 114.407 | 1.84527 |
| Via43839::GND | GND | (174.62,49.6) | Plane$GND2 | Node151194::GND | Signal$GND3 | Node151195::GND | 62.0001 | 110.968 | 1.7898 |
| Via43830::GND | GND | (174.62,52.14) | Plane$GND2 | Node151184::GND | Signal$GND3 | Node151185::GND | 62.0001 | 110.427 | 1.78107 |
| Via44127::GND | GND | (167,52.14) | Plane$GND2 | Node151514::GND | Signal$GND3 | Node151515::GND | 62.0001 | 108.717 | 1.75349 |
| Via44145::GND | GND | (167,49.6) | Plane$GND2 | Node151534::GND | Signal$GND3 | Node151535::GND | 62.0001 | 108.711 | 1.7534 |
| Via44028::GND | GND | (172.08,39.44) | Plane$GND2 | Node151404::GND | Signal$GND3 | Node151405::GND | 62.0001 | 97.3605 | 1.57033 |
| Via44154::GND | GND | (169.54,39.44) | Plane$GND2 | Node151544::GND | Signal$GND3 | Node151545::GND | 62.0001 | 97.2701 | 1.56887 |
| Via44172::GND | GND | (169.54,36.9) | Plane$GND2 | Node151564::GND | Signal$GND3 | Node151565::GND | 62.0001 | 96.8864 | 1.56268 |
| Via44037::GND | GND | (172.08,36.9) | Plane$GND2 | Node151414::GND | Signal$GND3 | Node151415::GND | 62.0001 | 96.5727 | 1.55762 |
| Via43848::GND | GND | (174.62,39.44) | Plane$GND2 | Node151204::GND | Signal$GND3 | Node151205::GND | 62.0001 | 95.4748 | 1.53991 |
| Via44181::GND | GND | (167,36.9) | Plane$GND2 | Node151574::GND | Signal$GND3 | Node151575::GND | 62.0001 | 95.0482 | 1.53303 |
| Via44163::GND | GND | (167,39.44) | Plane$GND2 | Node151554::GND | Signal$GND3 | Node151555::GND | 62.0001 | 94.5189 | 1.5245 |
| Via43857::GND | GND | (174.62,36.9) | Plane$GND2 | Node151214::GND | Signal$GND3 | Node151215::GND | 62.0001 | 94.3833 | 1.52231 |
| Via44190::GND | GND | (169.54,26.74) | Plane$GND2 | Node151584::GND | Signal$GND3 | Node151585::GND | 62.0001 | 88.9072 | 1.43398 |
| Via44046::GND | GND | (172.08,26.74) | Plane$GND2 | Node151424::GND | Signal$GND3 | Node151425::GND | 62.0001 | 88.2769 | 1.42382 |
| Via44208::GND | GND | (169.54,24.2) | Plane$GND2 | Node151604::GND | Signal$GND3 | Node151605::GND | 62.0001 | 88.1812 | 1.42228 |
| Via44226::GND | GND | (169.54,14.04) | Plane$GND2 | Node151624::GND | Signal$GND3 | Node151625::GND | 62.0001 | 88.1611 | 1.42195 |
| Via44199::GND | GND | (167,26.74) | Plane$GND2 | Node151594::GND | Signal$GND3 | Node151595::GND | 62.0001 | 87.9642 | 1.41877 |
| Via44055::GND | GND | (172.08,24.2) | Plane$GND2 | Node151434::GND | Signal$GND3 | Node151435::GND | 62.0001 | 87.7276 | 1.41496 |
| Via44244::GND | GND | (169.54,11.5) | Plane$GND2 | Node151644::GND | Signal$GND3 | Node151645::GND | 62.0001 | 87.6722 | 1.41406 |
| Via44064::GND | GND | (172.08,14.04) | Plane$GND2 | Node151444::GND | Signal$GND3 | Node151445::GND | 62.0001 | 87.4926 | 1.41117 |
| Via44217::GND | GND | (167,24.2) | Plane$GND2 | Node151614::GND | Signal$GND3 | Node151615::GND | 62.0001 | 86.4617 | 1.39454 |
| Via44073::GND | GND | (172.08,11.5) | Plane$GND2 | Node151454::GND | Signal$GND3 | Node151455::GND | 62.0001 | 86.446 | 1.39429 |
| Via44253::GND | GND | (167,11.5) | Plane$GND2 | Node151654::GND | Signal$GND3 | Node151655::GND | 62.0001 | 86.3319 | 1.39245 |
| Via43866::GND | GND | (174.62,26.74) | Plane$GND2 | Node151224::GND | Signal$GND3 | Node151225::GND | 62.0001 | 86.1391 | 1.38934 |
