ATLAS Level-1 Calorimeter Trigger

GOLD Module

- V1.0-



Project Specification



Version 0.1

Date: 08 December 2010





Bruno, Eduard, Uli, Weina

Universität Mainz







--- not part of the final document ---

This is a document in .html format (for convenience), however, optimised to convert back to .docx before submission. Currently daily live updates are made without incrementing version number. Check document date please.



We need to sort out terminology. Standard ATCA speak would be board in a shelf. However, I would generally prefer to talk about modules. Talk about mezzanine rather than daughter. Also, mainboard would probably better be called processor board or module. Main processor rather than merger. In any case we need to be consistent throughout the document.



Comments welcome.



We should make a list of drawings we want to add. Since we are here in a Microsoft world I am wondering how to deal with external drawing formats. I would guess we do not want to do each drawing twice…



---------------------------------------------------------------------------
Table of Contents

1       Introduction. 4

1.1        Related projects. 4

1.2        GOLD processor board. 4

1.2.1         Real-time data path. 4

1.2.1.1     Input processing. 5

1.2.1.2     Main processor 5

1.2.2         Clock distribution. 6

1.2.3         Configuration, monitoring, and control 6

1.2.3.1     Pre-configuration access. 6

1.2.3.2     FPGA configuration. 7

1.2.3.3     Environmental monitoring. 7

1.2.3.4     Module control 7

1.2.3.5     DAQ and ROI. 7

1.3        Opto module. 8

1.4        Clock/control module. 8

1.5        HXT processor 9

2       Functional requirements. 9

2.1        Signal paths. 9

2.2        Real-time data reception. 10

2.3        Real-time data processing. 10

2.4        Clock distribution. 11

2.5        Configuration and JTAG.. 12

2.6        Module control 12

2.7        DAQ and ROI. 13

3       Implementation. 14

3.1        Scalable design. 14

3.2        Board level issues : Power supplies and line impedances. 14

4       Firmware, on-line software and tests. 15

5       Interfaces : connectors, pinouts, data formats. 16

5.1        Internal interfaces. 16

5.2        Front panel 16

5.3        Backplane connector layout 16







1      Introduction

This document describes the specification for the initial version 1.0 of the Generic Opto Link Demonstrator (GOLD). The specification covers the processor board as well as mezzanine modules carrying clock circuitry, controls, and opto-electrical receivers. Section 1 of this document gives an overview of the module. Section 2 describes the functional requirements. Section 3 details the implementation.

1.1    Related projects

The GOLD is a demonstrator for the Topological Processor, a major processor module within the future Cluster and Jet Processor scheme of the ATLAS level-1 calorimeter trigger. The Topological Processor will be located between the CMM++ and the CTP in the L1Calo architecture. A demonstrator for the CMM++ is the BLT. The future CTP is assumed to be electrically identical to its current incarnation, the firmware, and the data formats on the interfaces might be different.



TTC                        http://www.cern.ch/TTC/intro.html

L1Calo modules  http://hepwww.rl.ac.uk/Atlas-L1/Modules/Modules.html

TTCDec                 http://hepwww.rl.ac.uk/Atlas-L1/Modules/Components.html

CTP                        http://atlas.web.cern.ch/Atlas/GROUPS/DAQTRIG/LEVEL1/ctpttc/L1CTP.html

CMM++                                ???



1.2    GOLD processor board



The Topological Processor within the L1Calo architecture is likely to be a single processor crate equipped with one or several processor modules. The processor modules will either be identical copies with firmware adapted to the specific topologies to operate on. Alternatively it could be modules tailored to a specific topology in hardware. The GOLD is a first technology demonstrator for the topological processor and other future L1Calo modules. These specifications describe its use as a Topological Processor demonstrator only. It is meant to be operated on output signals of a first prototype of the CMM++, or initially on the BLT.



The GOLD will receive the topological output data of the sliding windows processors. The details of the data formats are not currently known. However, the information transmitted into the GOLD will be basically comprised of the ROI data that are currently transmitted to the 2nd level trigger. The data will consist of a description of the position of an object (jet, e/m cluster, and tau) along with some qualifying information, basically the energy sum within the object. Preliminary data formats have been devised. Data are going to be transmitted on optical fibres. After conversion to electrical representation, data are received and processed in FPGAs equipped with on-chip Multi-Gigabit Transceivers (MGT). Results are sent to the Central Trigger processor.



The GOLD will be designed in AdvancedTCA (ATCA) form factor.  Together with its mezzanine modules, it will populate three adjacent slots of a standard ATCA shelf. Backplane connection, however, is made to a single ATCA slot only. The mezzanine modules make use of industry standard connector types, but they are built in GOLD specific PCB dimensions.





1.2.1     Real-time data path



ATCA Backplane zones 2 and 3 of the GOLD are used for real-time data transmission. The module incorporates two distinct processing schemes. One is based on currently available FPGAs (XC6VLXT series); the other one tries to make use of FPGAs (XC6VHXT) meant to be available very soon. The baseline operation of the GOLD relies on the LXT scheme. The HXT FPGAs will not be mounted initially.



The CMM++ data enter the GOLD optically through the backplane. The fibres are fed via five blind-mate backplane connectors that can carry up to 72 fibres each. That limits the maximum aggregate bandwidth to 3.6Tb line rate, if 10 Gb/s transmission is used throughout. Initially, however, the interfaces will be used at lower rates, and with just 12 fibres per connector.  The optical signals are converted to electrical signals in 12-fibre receivers. Data reception is handled on a mezzanine module, stacked on the component side of the GOLD. The GOLD processor board is fed with electrical signals, which are routed through a total of four industry-standard FMC connectors with differential signal layout. Data from the two top most connectors are routed to four FPGAs, where they are de-serialised in MGT receivers; the parallel data are presented to the FPGA fabric. In the four input processors part of the algorithms are run, the actual topological algorithms requiring access to data from the full eta/phi space of L1Calo, however, are run on the main processor chip. The final results are transmitted towards the CTP on optical fibres. The signals are converted to electrical and de-serialised with low latency receivers on an adapter module located near the CTP crate.



Both the implementation of the CTP link and the partitioning into input processors and main processor were chosen due to limitations on resources on currently available FPGAs only, and are not meant to reflect an architectural feature of a future Topological Processor.



The operation of the real-time data path requires low-jitter clocks throughout the system. For synchronous operation, data transmitters will have to be operated with clean multiples of the LHC bunch clock. Receiver reference clocks may as well be derived from local crystal oscillators, though tight limits on the frequency range will have to be observed. The GOLD module will be designed for 40.08 MHz operation only.





1.2.1.1    Input processing

The optical data arrive on the input mezzanine module on standard 12-fibre bundles. Since the backplane connectors support multiples of 12 fibres, the signals might in a future version of the board be supplied by “octopus” cable sets, splitting 24, 36, 48, or 72 fibres into groups of 12. It should be noted that un-armed, bare fibre bundles are very flexible and can easily be routed to their destination, even in high-density designs. However, they need to be protected from mechanical stress. The opto-electrical conversion will be performed in AVAGO or compatible 12-channel devices. Industry-standard SNAP12 devices are not considered an option, since so far no high-bandwidth devices are available from any supplier. The opto receivers exhibit programmable pre-emphasis so as to allow for improvement on signal integrity for given track length.



As the number of electrical input channels may be higher than the number of optical inputs, the electrical signals are routed from the o/e converters into CML fan-outs, and then onto the mezzanine connectors. This will allow for evaluation of electrical duplication schemes that future algorithms will require. While the mezzanine module concept with a rather inexpensive and almost passive (except the fan-outs) carrier for the opto receivers is particularly useful in the demonstrator and prototyping phase, it is envisaged for future production modules as well. Such a concept allows for several instances of a topological processor to be run with different signal routing, optimised for the respective algorithms. The CML circuits do not allow for neither pre-emphasis nor signal equalisation. Therefore signal conditioning on the data sources and sinks is required, if longer tracks are to be used.



Once on the processor board, the multi-gigabit links are de-serialised in the input processor FPGAs. They allow for programmable signal equalization on their inputs. The exact data formats are as yet unknown, though standard 8b/10b encoding is envisaged for purpose of run length limitation and DC balance. The processors are supplied with required bias and termination voltages, as well as a suitable reference clock.



The input processors are assumed to do some local pre-processing on the incoming data. The extent of local processing is determined by the respective algorithms.



1.2.1.2    Main processor



The main processor has accesses to data from the full solid angle in eta and phi. Data volumes are limited by the general purpose I/O bandwidth of the FPGA. In the first iteration of the module a XC6VXLX240 is used. With a line rate of 1Gb/s and a total of 240 differential lanes into the main processor, the aggregate bandwidth is limited to 240 Gb/s. This theoretical limit cannot probably be reached, since a fraction of lanes might be required for control purposes, as the main processor dubs as a module controller. Bandwidth can be increased when larger, foot print compatible FPGAs are mounted on the PCB. The use of multi-Gigabit links on this path is not effective due to their higher latencies. 600-lane FPGAs of the XC6V series have been announced, but are not yet available. Due to the currently limited aggregate bandwidth of parallel I/O, the results of the topological algorithms are sent on to the Central Trigger Processor on multi-gigabit links. A single fibre-optical ribbon connection through the front panel of the module is provided for this purpose. An adapter board will be required to interface the GOLD to the LVDS inputs of the current CTP. This module will be equipped with CML-to-LVDS de-serialisers DS32EL0124 or similar.







1.2.2     Clock distribution



Both the FPGA fabric and the multi-Gigabit transceivers (MGT) need to be supplied with clock signals of appropriate signal levels and signal quality. The fabric clocks are multiples of the LHC bunch clock at LVDS levels. The MGT clocks are CML level signals, AC-coupled into the MGT clock pads of the FPGAs. The jitter of the MGT clocks has to be tightly controlled. Clock generation and jitter clean-up are performed on a clock and control mezzanine module, located towards the bottom of the GOLD. The clock distribution trees are located on the GOLD processor board. The clock fan-out chips chosen are devices with multiple signal level input compatibility, and output levels suitable for their respective use, either LVDS or CML. The devices are manufactured by Micrel.



There are two independent clock trees for the fabric clocks into all FPGAs. There is one common MGT clock tree into all FPGAs. Another MGT clock tree supplies all XC6VLXT devices. There is yet another clock tree available to supply the XC6VHXT devices (see below).  The main processor receives additional clocks since it handles DAQ, ROI, and control links as well.  Check !!!!! !







1.2.3     Configuration, monitoring, and control

While the GOLD is basically meant to be a demonstrator for the Multi-Gigabit real-time data paths of future L1Calo modules, an attempt is made to prototype various module controls for future ATCA based modules as well.

1.2.3.1    Pre-configuration access

The GOLD is a purely FPGA-based ATCA module. There are no dedicated communications processors available on the module. Therefore there is only a single control path predefined that could possibly allow for access to a module with un-configured FPGA devices. This is the I2C port available on all ATCA modules in zone 1 (see below). Also CAN (see below) could be an option for pre-configuration access. Due to the very limited bitrates on these two networks, neither of them is considered suitable for initial access in a fairly experimental setup, where there is quite some probability for a flash card based FPGA configuration failing.  FPGA configuration with up to the order of 100MB of configuration data per GOLD would be impossible to achieve through a service network of just hundreds of kilobits per second bandwidth.



For this reason the GOLD will be equipped with a USB microcontroller which supports 480Mb/s USB high speed mode. The microcontroller is interfaced to the FPGAs via JTAG protocol. The microcontroller design is fully compatible to the Xilinx platform USB solution. Therefore the crucial operation of FPGA configuration is available from both Linux and Windows without the need for any software to be written. Either production firmware or service code can be loaded to the FPGAs as required. Debug with the Xilinx Chipscope tool set will be supported out of the box. JTAG user access to the FPGAs will be possible with a sustained rate of several Megabits per second. However, some application software would need to be written for this purpose.



On the GOLD the USB sub-system will be built on a mezzanine module, though it is envisaged to make this pre-configuration and debug access port available as an integral part of future L1Calo ATCA production modules. Pre-configuration access beyond the use case described above would be possible, since the USB microcontroller can at any time be loaded with a non-Xilinx hex code via the USB. However, initially on the GOLD there will be no additional electrical connectivity available beyond the Xilinx standard wiring to the JTAG port. Hardware upgrade might be possible at a later stage, if required (spare connector pins ?!?!?)

1.2.3.2    FPGA configuration

The baseline FPGA configuration scheme on the GOLD is via a CompactFlash card and the Xilinx System ACE chip.  This configuration scheme has been successfully employed on several L1Calo modules so far, including the JEM. On the JEM the required software and firmware has been devised to allow for in-situ update of the CompactFlash images. The required board-level connectivity will be available on the GOLD (check bandwidth through CPLD!) to write the flash cards through some network connection to the FPGAs, once they are configured. The inevitable bootstrap problem is solved through the USB based pre-configuration access scheme described above.

1.2.3.3    Environmental monitoring

Board level temperature and voltage monitoring will be a requirement on future L1Calo modules. The current L1Calo modules are monitored via CAN bus. The default ATCA monitoring and control path is via I2C links in zone 1. For the GOLD both monitoring paths will be available. The backplane I2C link (IPMB-A only) is run via an IPMB compatible driver into the control CPLD. This CPLD is basically used for a further stage of routing only. The I2C controller can be located either in the main processor FPGA or inside a microcontroller located on a mezzanine module on the GOLD.  It will be possible to mount a CAN microcontroller on a future version of the clock/control mezzanine. The required connectivity is available on the mezzanine socket. Initially an FPGA based state machine will handle the I2C connection. On the GOLD only configured FPGAs can be monitored for die temperature and internal supply voltage. This is achieved by the use of their built-in system monitor. On future modules these measurements might be complemented by board-level monitoring points. Do we need some level of voltage/temperature monitoring from eg. Power converters ? same chips as on JEMs ?  ?



1.2.3.4    Module control

On standard ATCA modules, IP connectivity is mandatory for module control. This is generally provided by two 10/100/1000 Ethernet ports on the backplane in zone 2 (redundant base interface). This is a requirement for an ATCA compliant backplane, but not for an ATCA compliant module. The module is free to ignore the Ethernet ports and provide IP connectivity by any suitable means. On a future L1Calo ATCA crate one would probably avoid wiring two slots exclusively to the two base interface ports. On the GOLD a few differential signal pairs towards the bottom of the module are reserved for module access via Ethernet, PCIe, or other connectivity. The respective lines are wired to the clock/control mezzanine, where the required connectivity can be made to a local microcontroller, an SGMII Phy device, or straight into an MGT link on the main processor. A dedicated SFP based control link into the main processor will transport module control signals initially. It will be connected into an optical VME bus extender, so as to allow controlling the GOLD from a VME crate CPU within the current L1Calo online empire.

1.2.3.5    DAQ and ROI

Since the GOLD would be used in the existent phase-0 environment initially, a scheme for transmitting event data into the ATLAS data acquisition and 2nd level trigger was made compatible to the existent modules. A single optical channel into each the DAQ and ROI RODs is provided on the clock mezzanine module. The optical interface is made via SFP sockets.  Since it is not yet known whether it will be necessary and possible to implement the G-Link protocol on Xilinx MGT circuits, the SFPs can alternatively be driven from the FPGA fabric, if a new clock mezzanine module is made. There are enough resources available on the clock mezzanine socket to allow for either MGT or fabric based connectivity into DAQ and 2nd level trigger.

1.3    Opto module

The opto module is a mezzanine module on the GOLD processor board. It is stacked on the component side of the GOLD with four FMC standard connectors. All FMC connectors are of same signal type specific pin allocation. Thus four identical mezzanine modules can be mounted on the GOLD, though for reason of module mechanics and keep-out zones on the processor board, a mezzanine module would normally be connected via two or four FMC connectors for a half-size,  or full-size mezzanine board respectively. A four-connector mezzanine module will require special tools so as to be removed from its sockets, for reason of retention forces.



As outlined above, the baseline opto module will carry five fibre-optical backplane connectors.  Initially Molex xxx connectors are used. Sockets for up to 6 12-channel opto devices will mechanically fit a half-size mezzanine module. The first opto module to be manufactured will be aimed at link tests, not requiring external data sources. It will therefore be populated with two optical transmitters and three optical receivers. The electrical MGT signals will be routed such that receive and transmit lines will end up properly paired in the respective MGT quads of the FPGAs. This will allow for automated MGT signal integrity scans with help of the Xilinx IBERT tool.



At a later stage opto modules with higher input link counts and higher optical fibre densities will be built, targeted at setups for system level tests with CMM++ modules.



For reason of opto device availability initial versions of the opto module will be based on the AVAGO transceiver chip set. The module might be re-designed for different devices (SNAP12) if they were to appear on the market.



Also the envisaged electrical signal duplication, initially implemented with Micrel CML fanout chips (type xxxx) might be reworked in a further iteration of the module, if a test bench for crossbar switches were required.

1.4    Clock/control module

Clock reception and conditioning circuitry is implemented on a mezzanine board. The mezzanine connector carries all required clock signals (multiple MGT and fabric clocks for the FPGAs), as well as general control signals. Due to the limited real estate of the clock mezzanine it will most likely not be possible to drive all clock and control lines concurrently. So as to test full processor board functionality there will be more than one version of the clock module required. However, later versions of the clock mezzanine module are expected to drive all lines that are actually required for the GOLD to perform in the L1Calo phase-1 prototyping environment.



The current L1Calo modules receive their LHC bunch clock and associated data through the TTCDec module, based on a TTCRx chip. This is not assumed to be the way TTC data and clocks are going to be distributed in a future L1Calo architecture. The GOLD will have to operate with the existent clock distribution scheme initially. At a later stage it will probably be driven in a different way. For backward compatibility it is assumed that a TTCDec module will be connected to the GOLD. Due to lack of space this will be interfaced to the clock module through an external connection on the front panel. Just a very small number of single ended 40Mb/s TTC data signals are actually used on the current L1Calo modules. For the TTCDec interface it will therefore be assumed that an external TTCDec module is interfaced to a CPLD locally. That will allow for a programmable selection of TTC data, as well as for personalisation of the TTCrx chip at power-up. The selected data will be transmitted as source terminated single-ended CMOS data into the GOLD. A low data rate I2C port will be available for TTCRx configuration. The LHC bunch clock will run on a differential signal pair for reason of signal integrity.



Alternatively optical data transmission of clock signals onto the clock mezzanine module will be possible. The DAQ and ROI SFP modules described above are used for data transmission only. The two corresponding optical receivers are available to route LHC clock and data into the GOLD.



On an initial version of the clock module there will be a jitter reduction scheme in operation, based on the National Semiconductors XXXX chip. This will be required for reason of signal integrity, when operating MGT links with the jitter prone TTCDec recovered clock. This circuit might not be required when using an optically distributed clock signal. In this case centralised jitter elimination at the optical clock source might be sufficient.





1.5    HXT processor

The GOLD, as described above, is the module version that will be assembled initially. It makes use of FPGA processors that are available on the market currently. The five FPGAs of type XC6VLXT are mounted in the top half of the GOLD, with their MGT inputs connected to the top pair of FMC connectors. They cover about a third of the real estate of the module. Another third is taken by auxiliary circuitry and connectors. This leaves a third of module space for another four FPGAs of type XC6VHXT. Those FPGAs should appear on the market rather soon. They provide higher MGT link counts and speeds, as well as higher processor capacities. HXT processors might be used on future L1Calo modules, though the properties of the MGT circuitry compare rather unfavourable to the next coming Virtex-7 family. The HXT devices suffer from a split bitrate range of up to 6.5 Gb/s for the slower MGTs, and a non-overlapping 10Gb/s only for the faster transceivers on the same chip. That is very inconvenient and it imposes considerable limitations on an architecture based on such devices.



The GOLD allows for mounting one pair of HXT devices connected to the lower pair of FMC connectors. Another pair of these FPGAs is wired to zone 2 of the ATCA backplane connector. The HXT subsystem is not within the scope of this specifications document, however, there will be an appendix added to a future version of this document giving a few details on the HXT design. It should be noted that the power distribution system of the GOLD was designed to allow for concurrent operation of the LXT and the HXT subsystems. However, dissipation of the module would require special consideration when operating all of the FPGAs at full performance concurrently.







2      Functional requirements

This section describes the functional requirements only. Specific rules need to be followed with respect to PCB design, component placement and decoupling. These requirements are detailed in section 3. For information on interfaces with other system components, see section 5. Requirements for the Virtex-6 HXT subsystem are listed separately.

2.1    Signal paths

The GOLD is designed for high speed differential signal transmission, both on external and internal interfaces. Two differential signalling standards are employed:  LVDS and CML. There is a very small amount of single ended connectivity required on the GOLD. This section covers basic signalling requirements only; there is a separate section on signal integrity in xxx.



The requirements with respect to signal routing are:



2.2    Real-time data reception

Real-time data are received optically from the back of the ATCA shelf; they are converted to electrical representation, and fanned out on a mezzanine module. They are transmitted to the processor board and de-serialised and processed on the input processor FPGAs.  The use of a mezzanine module is a requirement, since choice of opto receivers and algorithm-specific routing should be possible at low NRE cost.



The requirements with respect to the opto mezzanine are:

-          Provide 72 differential input links

-          Provide 18 differential output links for test purposes

-          Provide 15 single-ended 3.3V CMOS control lines (incl. I2C and JTAG),
power 2V5/3V3, ground

-          Use XILINX ML605 FMC pinout for reference

-          Duplication

-          AC coupling





The requirements with respect to data reception and conditioning are:



2.3    Real-time data processing

The GOLD processing resources are partitioned into four input processors and a main processor. This is not a requirement, but a consequence of limitations on MGT link count and processing resources on currently available FPGAs. See xxx. The requirements on processing resources depend on the physics algorithms and are not currently known.



The requirements with respect to the processors are:

-          144 channels of up to 6.4Gb/s line rate

-          Send output data to CTP on MGT links, so as to maximise low-latency inter-processor communication bandwidth

-          Use higher latency channels for non-RTDP links where possible

-          Use CPLDs as “port expanders” for low-speed signals

-          12 channels of up to 6.4Gb/s line rate

2.4    Clock distribution

Both the FPGA fabric and the MGT links need to be supplied with suitable clock signals. Due to the synchronous, pipelined processing scheme most of the clocks need to be derived from the LHC bunch clock or a device emulating it. Due to requirements on MGT reference clock frequency accuracy, a mixed 40.00/40.08 MHz operation is impossible. Therefore a requirement for 40.08 MHz operation has to be introduced.



Some clocks are generated on the clock mezzanine module. They are fanned out to the sink devices with active components located on the main board. General requirements on signal routing and signal integrity are outlined elsewhere.



The requirements with respect to the clock distribution on the main board are:



The requirements with respect to the clock generation on the mezzanine board are:

-          One to an MGT

-          One to a fabric clock input





The clock mezzanine module provides some connectivity and real estate for general control purposes. The requirements with respect to auxiliary controls on the clock mezzanine board are:





 I haven’t probably got all details complete nor right. Need to check!



2.5    Configuration and JTAG

JTAG is used for board level connectivity tests, pre-configuration access, and module configuration. During initial board tests and later hardware failure analysis, JTAG access will be required to connect an automatic boundary scan system, generally when the module is on a bench, not in an ATCA shelf. Also the initial configuration of non-volatile CPLDs will be performed at that stage.



The requirements with respect to boundary scan and CPLD configuration are:



Pre-configuration access and device configuration of the FPGAs is required at any time. USB access and the System ACE / CompactFlash configuration scheme are employed.



The requirements with respect to USB access and FPGA configuration are:



2.6    Module control

On ATCA modules serial protocols are used to achieve board level configuration and control. Typically Ethernet would be used to control module operation. On the GOLD any serial protocol compatible to Xilinx MGT devices can be used to communicate to the main processor, once it has been configured. Examples are SGMII / Ethernet, PCI-Express, or any application specific protocol. All board level control goes via the main processor.



The requirements with respect to general board control are:





The CPLD is in charge of mainly static controls and low speed I2C fanout.

The requirements with respect to the CPLD are:





2.7    DAQ and ROI

A single fibre for each DAQ and ROI transmission will be provided on the GOLD.

The requirements with respect to DAQ and ROI interface are:









3      Implementation

This section describes the detailed implementation of the module and it specifies a set of design rules needed to comply with general signal integrity rules, as well as component specific requirements.



The GOLD is built as a 3 slots wide ATCA module, so as to accommodate thick components on the bottom of the module, and mezzanine modules on the top. The module carries processors from two FPGA families, XC6VLX and XC6VHX. The latter will not be mounted initially.



The main board is built as a xx layer PCB. The PCB is 2mm thick and should fit ATCA standard rails.





3.1    Scalable design

The GOLD can be assembled with either XC6VLX240T or XC6VLX550T devices can be mounted, so as to allow for both affordable and maximum-bandwidth components. GOLD needs to be designed such that all vital signals of both MGT and general I/O type are run on signal pins available on the smaller device. Since GOLD is a rather experimental setup, component placement should be chosen such that incremental component assembly and re-work are simplified, where possible.



The mezzanine module sockets need to provide spare connectivity to make sure that GOLD functionality can be upgraded at a later stage by replacing the relatively inexpensive mezzanine modules only. How about JTAG mezzanine?

3.2    Board level issues : Power supplies and line impedances

(adapted  from JEM document)

The GOLD is a large, high-density module, carrying large numbers of high-speed signal lines of various signal levels. The module relies on single ended CMOS (2.5 and 3.3V), and differential (LVDS, PECL3.3, PECL2.5, CML3.3, CML2.5) signalling. System noise and signal integrity are crucial factors for successful operation of the module. Noise on operating voltages has to be tightly controlled. To that end, large numbers of decoupling capacitors are required near all active components. FPGAs are particularly prone to generating noise on the supply lines. Their internal SERDES circuitry is highly susceptible to noisy operating voltages, which tend to corrupt their high-speed input signals and compromise the operation of the on-chip PLL, resulting in increased bit error rates. To suppress all spectral components of the supply noise, a combination of distributed capacitance (power planes) and discrete capacitors in the range of nF to hundreds of mF are required.

The GOLD base frequency is 40.08 MHz. Parallel differential I/O operates at multiples up to 1Gb/s. Multi-Gigabit (MGT) links operate at 6.5 or 10Gb/s Those signals are routed over long tracks on-board and across the backplane. This is only possible on matched-impedance lines.  Differential sink termination is used throughout. All FPGA inputs are internally terminated to 100Ω or to 50Ω||50Ω, according to the manufacturer’s guidelines. All lines carrying clock signals must be treated with particular care.



The rules with respect to signal integrity are:

·         Use low-noise local step-down regulators on the module, placed far from susceptible components.

·         Observe power ramp and sequence requirements for FPGAs

·         Run all supply voltages on power planes, facing a ground plane where possible, to provide sufficient distributed capacitance

·         Provide at least one local decoupling capacitor for each active component

·         For FPGAs, follow the manufacturer’s guidelines on staged decoupling capacitors (low ESR) in a range of nF to mF

·         Observe the capacitance limitations imposed by the voltage convertors

·         Minimise the number of different VCCO voltages per FPGA to avoid fragmentation of power planes

·         avoid large numbers of vias perforating power and ground planes near critical components

·         route single-ended signals on high impedance lines

·         source-terminate single ended clocks with approximate impedance

·         Route all differential signals on properly terminated, controlled-impedance lines:

o    Have all micro strip lines face a ground plane

o    Have all strip lines face two ground planes or one ground plane and one non-segmented power plane

o    avoid sharply bending signal tracks

o    minimise cross talk by running buses as widely spread as possible

o    Avoid in-pair skew, in particular for MGT links and clocks

o    Avoid impedance discontinuities and stubs,  in particular on MGT links and clocks

o    Use LVDS on all general-purpose FPGA-FPGA links

o    Use LVDS on all GCK clock lines

o    Use PECL or CML on all MGT clock lines

o    Use CML on all MGT data lines

o    Use AC coupling on all MGT clock inputs

o    Use AC coupling on all MGT data inputs

o    For all off-board links assume capacitors off-board

o    For on-board links place capacitors close to source

o    Use AC coupling when crossing PECL/CML domains

o    Use AC coupling or suitable receivers when crossing 2.5V/3.3V domains, except on LVDS

o    Use bias networks on AC coupled inputs where required

o    Run FPGA configuration and FPGA JTAG clock lines on 50 W (or higher impedance?) point-to-point source terminated lines any better idea? Go differential?





According to the device specifications the following supply voltages need to be applied to the FPGAs: Vccint=1.0+/-0.05V, Vccaux=2.5V. All bank voltages are chosen to be 2.5V. On all voltages observe the device specific ramp up requirement of 0.2ms to 50ms (check with Bruno )





On GOLD most of the FPGA based board level I/O is done via LVDS signalling. Some rules should be followed so as to efficiently exploit these resources.



The rules with respect to general I/O connectivity are:

·         Tie Vccaux and all bank supplies together to a common 2.5V Vcco power plane per FPGA

·         Use all FPGA banks for LVDS and low-current, point-to-point 2V5 CMOS only

·         On any external single ended links that might generate ringing at the FPGA inputs, use series resistors or slew-rate limited, or low-current outputs

·         No reference voltages nor DCI termination are required for single ended general I/O. Use respective dual-use pins for I/O purposes



Some single use and dual use pins are dedicated to control pre-configuration and configuration behaviour. Some pins are tied to appropriate logic levels via resistors; others are wired to CPLD outputs.



The rules with respect to pre-configuration and configuration control pins are:





·         The VFS pin is the fuse programming supply voltage. Allow for wiring to GND (0Ω) or external 2.5V supply (discuss!!! )

·         Allow HSWAPEN to be jumpered to either Vcc or GND

·         Allow mode lines M0, M2 to be jumpered to either Vcc or GND. Pre-wire to Vcc

·         Connect M1 to the CPLD (GND=JTAG mode, Vcc=slave serial)

·         Connect PROGRAM, INIT and DONE lines to the CPLD

·         Pullup DONE 330Ω optional, INIT 4k7 required!!!!

·         Use a pull-up of xR on PROGRAM ???

·         (will float until CPLD configured. That’s instantaneous at vccint=1.3V, but how does Vccint rise along with FPGA supplies ? Power scheme!!!)

·         Series resistor in CCLK to avoid damage if wrong (master) mode?

·         Connect Vbatt to GND

·         Wire DIN, DOUT and CCLK configuration lines to the CPLD (series terminator????)

·         Allow for wiring RDWR and CSI to either Vcco or GND





The rules with respect to system monitor pins are:



·         Do not use temperature sense lines DXN,DXP and short them to GND

·         Decouple analog power and GND according to UG370 with ferrite beads and wire the system monitor for internal reference (both Vref  pins to analog GND)

·         Do not use analog sense lines Vn and Vp and connect to analog GND

·



Firmware, on-line software and tests

The GOLD is an entirely FPGA based module. For both hardware commissioning and operation a set of matching firmware and software will be required. These two phases are well separated and requirements differ considerably. Hardware debug and commissioning will require intimate knowledge of the hardware components and will therefore be in the hands of the hardware designers. Both firmware and software will be restricted to simple, non-OO code. Hardware language is VHDL, software is plain C. GUI based tools are not required and will not be supplied by the hardware designers. Module commissioning from a hardware perspective is considered completed once the external hardware interfaces, board level connectivity, and basic operation of the hardware devices have been verified. The hardware debug and commissioning will involve JTAG/boundary scan, IBERT/ChipScope tests, and firmware/software controlled playback/spy tests with any data source/sink device available. Initially the BLT will be available for test vector playback on a single 12-fibre port. A debug opto module for the GOLD will be built with both fibre receivers and transmitters. At a later stage a CMM++ prototype module will be used as a data source.



Module control is initially via an opto fibre connection to a 6U VME-bus module carrying SerDes devices and optical transceivers. The opto-electrical interface will be a SFP module with LC-type opto connectors.  Control software will be based upon calls to the CERN VME library. SFP outputs provided for DAQ and ROI data transmission will be tested for bit errors and link stability only. No specific data formats will be tested on these links.



In parallel to the hardware debug and commissioning, higher level software and firmware will be developed for later operation of the GOLD. As yet no decisions on languages and architecture have been taken. As far as control software is concerned, a board level control scheme for future L1Calo modules needs to be devised. This will most likely not follow the initial approach of VME serialisation.



There will be a separate document on software and on algorithmic firmware produced at a later date.











4      Interfaces : connectors, pinouts, data formats

4.1    Internal interfaces

The opto mezzanine module is connected via up to four FMC style connectors (Samtec SEAM) of identical pinout:



Beschreibung: Beschreibung: P:\browsable\L1Calo\GOLD\src\FMC.png

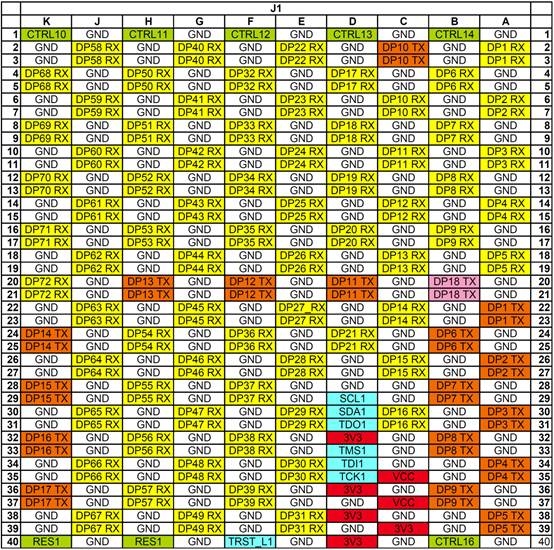

Figure 1: FMC pinout, connector J1 shown





The clock mezzanine module is connected via a xx-pin connector (Samtec SEAM series)



4.2    Front panel



The front panel shows the CompactFlash card for System ACE configuration, and four optical connections : One MPO/MTP connector for the real-time output to the CTP adapter, a pair of DAQ/ROI opto modules, and a

4.3    Backplane connector layout

The backplane connector is made to standard ATCA layout in zones 1 and 2. Zone 3 is populated with 5 MTP/MPO connectors that connect onto a RTM with hermaphroditic blind-mate shrouds.
