Note on
Topology Processor Development
– Andi, Bruno, Eduard, Uli,
Volker W. –
05/01/2012 14:17
3 Design principles –
do it simple
4 Component
availability and timeline
0
Prologue
Currently
we do have neither a requirements document nor specifications. This document is
meant to prepare the required paperwork, that’s due very soon. It is important
that some basics of the design are understood and agreed within the community –
and in particular between the CMX- and the topo
designers – before effort is invested in proper documentation.
1
Development line
Current
plans:
GOLD –
prototype1 (Q2 2012) – prototype2 (Q4 2012) – production modules (2013) –
additional production modules for 2018.
Details of
2nd prototyping phase will depend on footprint compatibility of
large FPGA devices. Additional 2018 modules are meant to process increased data
volume from FEXes. They might be just further copies
of 2013 modules, unless additional backplane bandwidth turns out to be required
for routing data into final processing stage. Current baseline does not make
use of backplane connectivity but rather relies on zero-latency forward
duplication at upstream modules (CMX), should more than one topology processor
module be required.
2
Requirements
Bandwidth requirement
had been estimated at time of 2011 L1Calo Stockholm meeting (after correction
for 16 octants):
“Preliminary
data formats for jet and cluster processors: 96*(14*8+32) bit @40 MHz => 553Gb/s
For muon data assume data volume comparable to current MUCTPI
input: 16*13*32 bit @ 40MHZ =>267Gb/s”, i.e. 820
Gb/s total. That’s under the assumption that all 96 data bits from each CP/jet
slot are fully transmitted. No realistic muon data
rate is known. Add some ε for energy sums.
The Stockholm
presentation (June 2011) is found here:
See slide 6
for the block diagram, slide 7 for bandwidth estimate.
3
Design
principles – do it simple
The topo processor prototype tries to get closest possible to
the final production modules. While GOLD is toying with connectors and
mezzanines, allowing for maximum flexibility when testing data transmission,
the prototype will be strictly purpose-built. While the initial prototype is
being developed, the GOLD will continue to serve as a platform for on-going
exploration of new technologies (opto links), and
firmware development.
Due to
recent concern about long high-speed lanes across connectors, PCBs, and
backplanes, the topo processor prototype will be
optimised for simplicity and integrity of electrical interconnects. In short:
invest in active components, rather than in complex PCBs.
The
processor module will, to the extent possible, make use of highest-density
optical and optoelectronic components. Any duplication required will be done
upstream. Any electrical high-speed traces will be routed on shortest possible
links onto the closest FPGA. The current
baseline scheme will even give up on the long-favoured scheme of electrical
duplication on the outputs of the opto-electrical
converters. When using highest density o/e converters, trace lengths would most
likely need to be extended considerably, so as to fit fan-out chips. The module will make use of mid-board
optoelectronic components only, interfaced to backplane and front panel via
fibre ribbon pigtails.
So as to
extract maximum data rate from the CMX, including data duplication, the CMX
should provide ample output bandwidth, at both 6.4Gb/s
and 10Gb/s line rate. The topo processor prototype is
meant to be available for tests with 10Gb/s capable
CMX technology demonstrators and/or prototypes from summer 2012. It is assumed that the CMX can easily, and at
excellent signal integrity, communicate at both 6.4Gb/s
and 10Gb/s to the topo processor, if the CMX shares
the design principles described here.
The topo processor prototype is meant to be a full scale,
full-function processor that can be used in conjunction with the CMX (and
prototype) from day one. Therefore it seems appropriate to reduce the long
discussed CMX input bandwidth to what’s required for self-test diagnostics, and
rather rely on the topo processor (and prototype) for
any topology processing. This
simplification of the CMX scheme should allow making additional bandwidth
available on CMX optical outputs rather than inputs. For reason of signal
integrity, on-FPGA signal duplication is preferred over electrical or passive-optical
splitting.
The topo processor will employ two high-performance,
high-bandwidth processor chips for real-time processing. They are indicated A
and B (largest available Virtex-7) in Figure 1. With the devices expected to be
available by spring 2012, for prototype1, the total MGT input connectivity
would probably be 112 links, i.e. up to 0.9 Tb/s, if 10Gb/s
links are fed in. With 6.4Gb/s links the total
bandwidth would amount to 0.57Tb/s. The
use of more advanced FPGAs on a second prototype and on production modules
would boost the bandwidth by a factor of 1.4 or even 1.7 (80, as presented in
Stockholm, or 96 links per chip). Control FPGA C (small Kintex-7) is mainly
concerned with interfacing to the module controller via Ethernet.
The opto-electrical converters are assumed of miniPOD type. They are all mounted mid board and are
connected to either front or back panel with octopus cables. MicroPOD devices
might be used if they are available on the market in time, and if they turn out
to be the baseline for FEX development. While the preferred interconnect is
optical through-backplane connection, the mechanical properties of the
blind-mate connectors have not yet been sufficiently explored. Dependent on future
results from the GOLD, either back or front panel connectors will be chosen.
The decision can be taken after PCB production. The use of mid-board
transceivers requires an additional stage of fibre-optical connection, with the
associated unavoidable signal loss.
The
FPGA-to-FPGA interconnect will be done with parallel differential links. There
is a penalty of approx. 1 tick of latency, if both FPGAs need to be joined
together this way. Almost all bandwidth between FPGAs A and B will be made
available for the real-time data path. It is anticipated to reserve one bank
each for read and write control buses to C. Also, some rather narrow, parallel
port should be reserved on both processor FPGAs for low latency connection to
the CTP. Thus the possibly small number of trigger data on the critical path
can be transmitted at minimum latency.
There is
currently near-to-nothing known about the muon input
links. It is anticipated that the muon signals will
come in at 6.4 or 10 Gb/s optically.
For reason
of latency optimisation, a symmetric dual-processor scheme (fig.1) is chosen
for the topology processor.

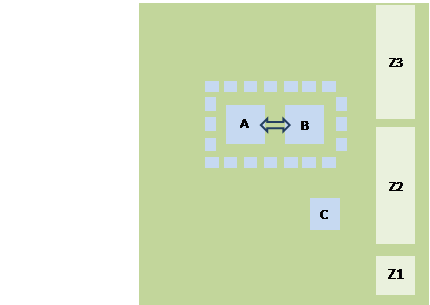

Figure 1: Floor plan topo
module (not to scale)
Optical output
bandwidth to the CTP (MGT links and low latency path) will be made available
from both of the FPGAs. With the total input bandwidth provided, it is
anticipated that most algorithms can be run in just one of the FPGAs,
minimising overall latency. However, for more complex / high input volume
algorithms it will be possible to cross chip boundaries at a latency penalty of
about one clock tick.
It is
anticipated to run the additional low latency, low bandwidth CTP links
optically as well, so as to avoid any signal integrity issues. DC-balance
coding would be implemented in the FPGA fabric.
For DAQ and
ROI links MGT output lines from the two processors will be used. SFP / SNAP12 /
miniPOD devices are considered for e/o conversion.
It should
be noted that quite some ancillary circuitry and firmware will be required. It
is anticipated that the ATCA specific I2C/power control scheme can be taken
over from RAL. It is not currently decided whether L1Calo standard CAN
monitoring will need to be implemented. Ethernet based control should be
adapted from Bristol (IPBus). It should be noted that
7-Series FPGAs do not come with integrated MACs. Therefore the VHDL code would
have to assemble Ethernet rather than IP packets. Due to availability of PCIe endpoints / root complex in 7-Series FPGAs the
technically superior approach might be a standard PCIe-to-Ethernet
device. However, it isn’t currently known what level of service firmware would
be required.
Alternatively
the use of an ARM based Zynq processor is considered.
It contains Ethernet and CAN interfaces. This approach would require a local
operating system to be deployed.
4
Component
availability and timeline
It is
difficult to precisely predict availability of new FPGA and high-density
optoelectronic devices. However, it can
be safely assumed that both engineering samples of moderately sized Virtex-7
devices and high-density o/e receivers will be available at a timescale
appropriate for topology processor prototype1. These components will guarantee
high-speed link operation at 6.4 Gb/s, 10Gb/s, and
above. In case there were problems with FPGA supply, this would delay the
prototype production. There is no fall-back option to Virtex-6. There might be
considerable overlap of prototype1 tests and prototype2 design work, if V7
availability were severely delayed. Current assumption is that higher capacity
FPGAs, expected to arrive in late 2012 or early 2013, will be footprint
compatible to initial, smaller ES devices. In this case full capacity modules
can be built and tested (to a large extent) before FPGAs for the production
modules become available.
For the o/e
components, time line seems to match the project. Though microPOD
is not expected to be available in time, for miniPOD
the situation looks promising. However,
availability will need to be re-assessed in spring 2012. In case of severe
delays, prototype1 would need to be designed with either conventional, standard
footprint devices, as used on the GOLD and its mezzanines, or a mezzanine
connector would have to be re-introduced. Either approach would reduce design
density and increase high-speed trace lengths. Also, total optical bandwidth
might be below the figures quoted above.
5
Module
and system tests
The topo processor prototype will initially be tested in Mainz,
along with the BLT. The GOLD will be adapted to serve as a generic source and
sink module up to 6.4Gb/s line rate. For rates beyond
the capabilities of BLT and GOLD, fibre loopback on the prototype will be the
only test setup available initially.
It is
anticipated that the test bench available in the L1Calo CERN test lab will be
upgraded to allow for standalone tests, and tests including the CMX prototype.
Availability of CTP prototypes will need to be discussed with the CERN group.
6
Cost
and funding
Topo
processor prototype1 is funded from available resources. Cost is dominated by
FPGAs and PCB production. All multi-Gigabit input connectivity and a
considerable fraction of output connectivity of the FPGA processors will be
routed to transceiver sockets. Here cost will be incurred only for those
transceivers and fibre bundles actually plugged into the module. We pay for
what we need only. Component tests might be done with a partially equipped
module. System tests will require a higher level of connectivity. Optic and
optoelectronic components will be re-used in future test benches.
7
Technicalities
Data
integrity is best preserved if minimising trace length and vias
on the trace. Therefore the o/e
converters will be mounted close to the FPGAs. However, there is competition
for real estate between o/e converters and POL voltage converters.
Vias on
MGT traces will be avoided by optionally connecting differential links in
inverse polarity. Actual link polarity is programmable on the FPGAs and on the opto transceivers (check miniPOD).
Consider
inverse polarity option also on parallel buses. This would make VHDL code
slightly more cumbersome, but should be beneficial for signal integrity and
board complexity.
Ideally one
would run MGT links on top and bottom only. However, due to breakout density,
that might be impossible. Micro or blind vias might
have to be used to avoid stubs when connecting to inner layers. Options need to
be discussed with PCB manufacturers and within the community. MGT clocks also
deserve signal integrity focused attention. Check whether clock polarity
matters. To avoid phase differences of recovered clocks, MGT reference clocks
on all devices / all quads might possibly have to be of same polarity.
Though pin
swapping would be possible across banks, there are limitations imposed on
functionality of groups of pins.
Therefore it is decided to connect full banks of processor A to full
banks of processor B. No mixing of banks. All banks are 1.8V, LVDS only.
Due to the
required dense packing, thermal considerations are required.
Standard
FR4 laminate will be used, all micro strips facing a ground plane, all strips
facing at least one ground plane and one continuous power plane.
Quote
Xilinx (UG483):
“Substrates, such as Nelco, have lower dielectric loss and exhibit significantly
less
attenuation in the gigahertz range, thus
increasing the maximum bandwidth of PCBs. At
3.125 Gb/s, the advantages of Nelco over FR4 are added voltage swing margin and longer
trace lengths. At 10 Gb/s,
a low-loss dielectric like Nelco is necessary unless
high-speed
traces are kept very short.”
